Door Closer Assembly

Each door is equipped with a door closer
assembly that provides a smooth closing action
and prevents the door from being slammed shut.
The assembly is connected to the bottom hinge.
When the door is open to a 90° position, it will
automatically close. Beyond this position, the
door will stay open.

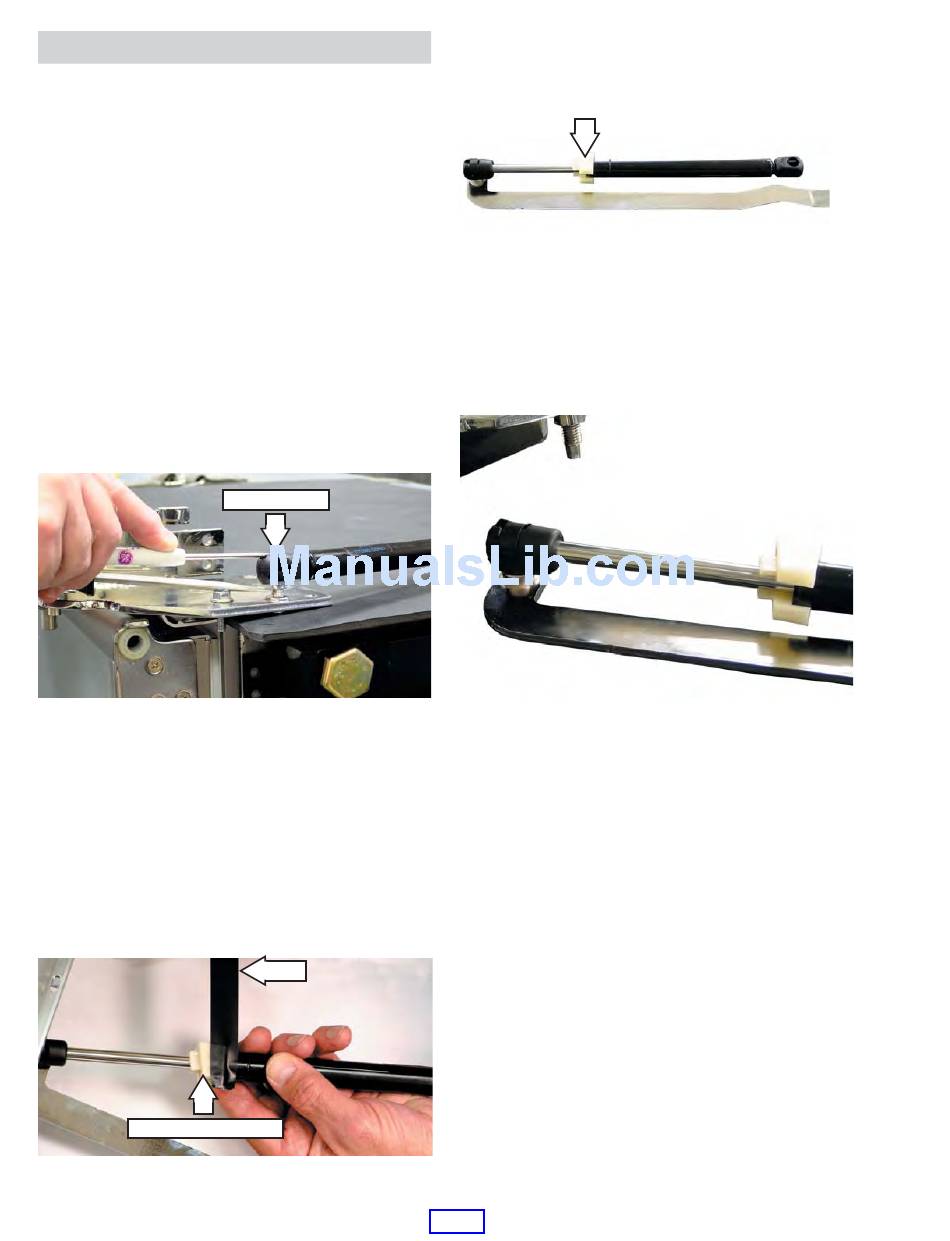

To remove the door closer assembly:
1. Remove the toe plate.
2. Remove the 8-mm mounting screw.
3. Insert a small screwdriver into the retaining
clip at the bottom of the shock absorber and
lift up (see photo).
4. Using a large screwdriver, lever the shock
absorber off the pivot ball as shown.
5. Remove the door closer assembly by pulling it
forward. Make certain to retain the white nylon
shock absorber support.
To install the door closer:
1. To make installation of the shock absorber
easier, secure the white nylon support to the
cylinder body with electrical tape .
White Nylon Support
Retaining Clip
Tape
2. Ensure the opening on the white nylon
support faces towards the inside of the
cabinet.
3. Make sure the door closer assembly support
is fully seated in the bracket to ensure
alignment of ball and socket.
Shown from Installation Viewpoint
– 20 –
