Casters and Leveling

Leveling is provided by 2 adjustable rear levelers
and 2 front leveling legs. The unit has 4 fi xed
casters that are used to position the refrigerator.
When adjusting the rear levelers, turn the
7 / -in. hex nut, located above the front casters,
16
clockwise to lower, or counterclockwise to raise.
When adjusting the front legs, use an open-end
wrench and turn the front legs clockwise to lower,
or counterclockwise to raise.
Note: The rear levelers and the 4 casters are
each attached to the refrigerator with four 10-mm
screws. To access the screws, raise or tilt the
refrigerator.

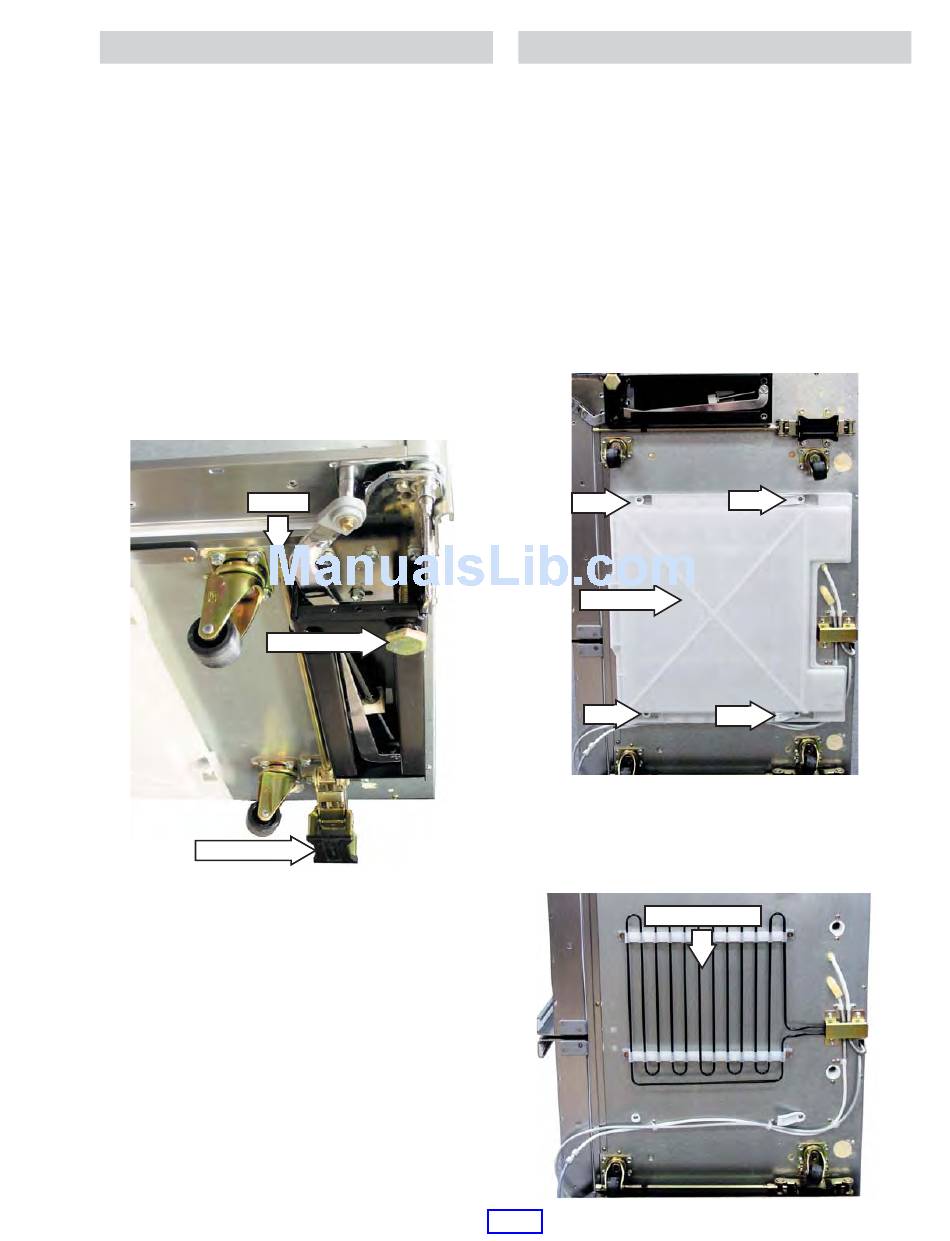

Bottom Right Half of Refrigerator Shown
Hex Nut
Leveling Leg
Rear Leveler
Warning: Use the appropriate safety equipment and
lifting techniques. Two persons may be required.
Drain Pan
The drain pan can be removed for cleaning
purposes.
Drain pan removal:
1. Remove the toe plate.
2. To remove the drain pan, grasp the center of
the drain pan and pull outward.
3. To install the drain pan, slide it back into
position so the rear and front mounting tabs
engage.
4. Firmly push the drain pan into position.
Tab
Drain Pan
Tab
The defrost water in the pan is evaporated by use
of a submersible serpentine coil, which is part of
the sealed system. The tubing is copper coated
with black paint.
Drain Pan Loop
– 21 –
Tab
Tab
