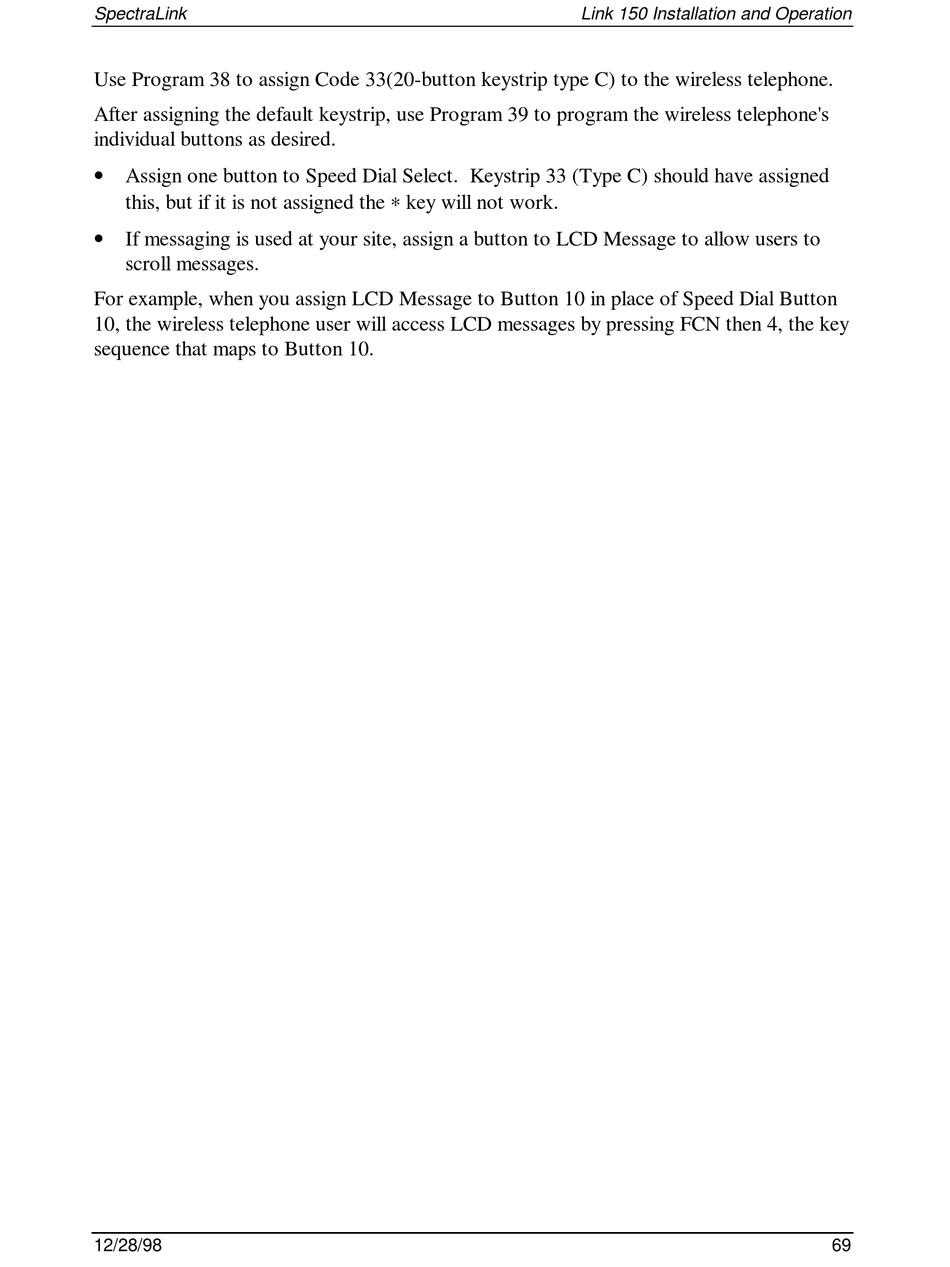

SpectraLink Link 150 Installation And Operation Manual page 77

SpectraLink
Use Program 38 to assign Code 33(20-button keystrip type C) to the wireless telephone.
After assigning the default keystrip, use Program 39 to program the wireless telephone's
individual buttons as desired.
• Assign one button to Speed Dial Select. Keystrip 33 (Type C) should have assigned
this, but if it is not assigned the ∗ key will not work.
• If messaging is used at your site, assign a button to LCD Message to allow users to
scroll messages.
For example, when you assign LCD Message to Button 10 in place of Speed Dial Button
10, the wireless telephone user will access LCD messages by pressing FCN then 4, the key
sequence that maps to Button 10.
12/28/98
Link 150 Installation and Operation
69
