SpectraLink Link Wireless Telephone System Installing Manual

Outdoor base station
Hide thumbs Also See for Link Wireless Telephone System:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: User Manual , Operation & Installation Manual
,QVWDOOLQJ WKH 2XWGRRU %DVH 6WDWLRQ
Link Wireless Telephone System
Part Number: 72-0050-01
Issue B
Supplement to: 72-0075-01 and 72-0059-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Link Wireless Telephone System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SpectraLink Link Wireless Telephone System

Summary of Contents for SpectraLink Link Wireless Telephone System

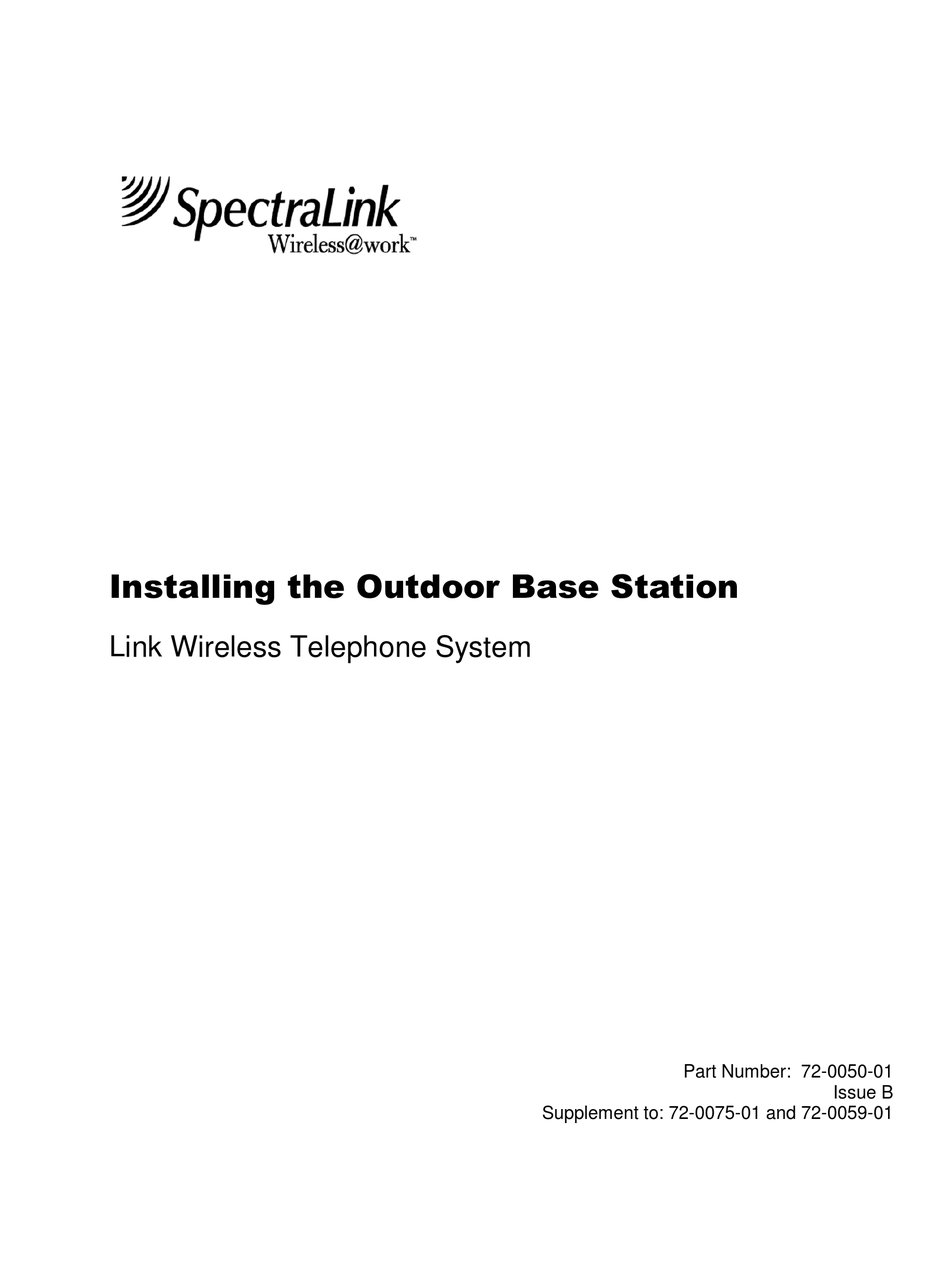

  • Page 1 ,QVWDOOLQJ WKH 2XWGRRU %DVH 6WDWLRQ Link Wireless Telephone System Part Number: 72-0050-01 Issue B Supplement to: 72-0075-01 and 72-0059-01...

  • Page 2: Trademark Information

    No representation or other affirmation of fact contained in this document including but not limited to statements regarding capacity, response-time performance, suitability for use, or performance of products described herein shall be deemed to be a warranty by SpectraLink for any purpose, or give rise to any liability of SpectraLink whatsoever.

  • Page 3: About This Document

    Industry Canada (IC) notice. Contacting SpectraLink SpectraLink wants every customer to have a successful installation. Please refer questions to our Customer Support Hotline at (800) 775-5330. The Hotline is open Monday through Friday, 7:00 AM to 6:00 PM Mountain Time.
  • Page 4 SpectraLink Corporation Installing the Outdoor Base Station Link WTS 3. Slide the Base Station cable through the compression fitting and tighten fitting. Compression fitting 4. Crimp an RJ45 onto the Base Station cable using the same wiring guide as the indoor Base Station.
  • Page 5 SpectraLink Corporation Installing the Outdoor Base Station Link WTS 6. Place the Base Station into the enclosure with the side of the Base Station with the mounting hole facing the wall or ceiling. The Base Station should fit tightly into the foam blocks.
  • Page 6 SpectraLink Corporation Installing the Outdoor Base Station Link WTS 3. Installing on an I-Beam Items provided : Outdoor enclosure, Base Station Items needed : 4 - “Caddy” or “B-Line” 3/8” Beam Clamps 4 - ½” ¼” x 20 bolts 4 - 2” ¼” x 20 bolts 4 - ¼”...
  • Page 7 SpectraLink Corporation Installing the Outdoor Base Station Link WTS 4. Installing on a Light Pole or Electrical Pole Items provided: Outdoor enclosure, Base Station Items needed: 4 - “Caddy” or “B-Line” 3/8” Beam Clamps 2 - EOG 100 or Equivalent Band Clamps 1.
