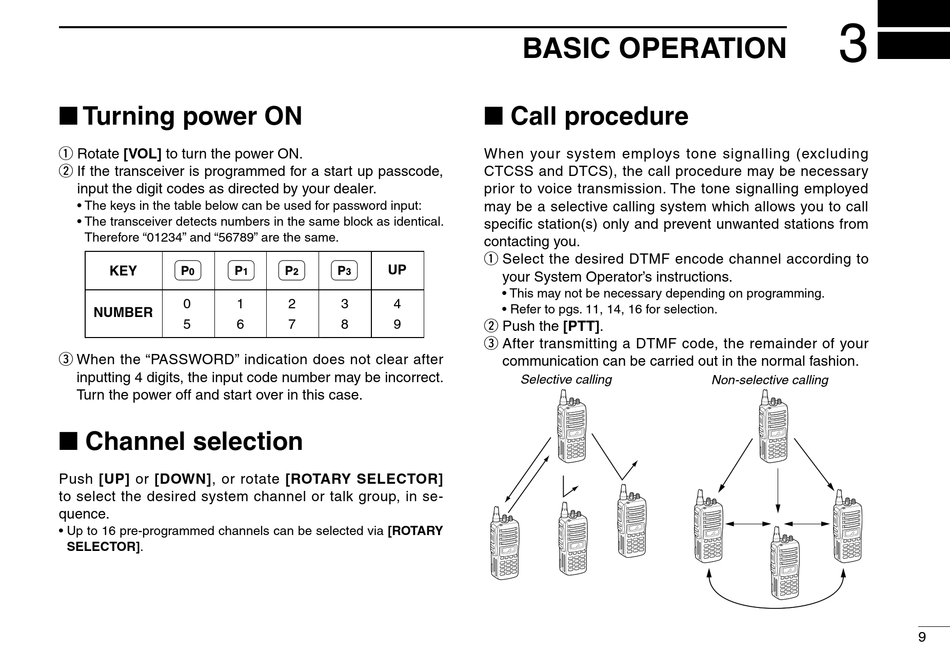

■ Turning power ON

q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up passcode,
input the digit codes as directed by your dealer.
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
0 1
NUMBER
5 6
e When the "PASSWORD" indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.

■ Channel selection

Push [UP] or [DOWN], or rotate [ROTARY SELECTOR]
to select the desired system channel or talk group, in se-
quence.
• Up to 16 pre-programmed channels can be selected via [ROTARY
SELECTOR].
UP
2 3 4
7 8 9

BASIC OPERATION

■ Call procedure

When your system employs tone signalling (excluding
CTCSS and DTCS), the call procedure may be necessary
prior to voice transmission. The tone signalling employed
may be a selective calling system which allows you to call
specific station(s) only and prevent unwanted stations from
contacting you.
q Select the desired DTMF encode channel according to
your System Operator's instructions.
• This may not be necessary depending on programming.
• Refer to pgs. 11, 14, 16 for selection.
w Push the [PTT].
e After transmitting a DTMF code, the remainder of your
communication can be carried out in the normal fashion.
Selective calling
3
Non-selective calling
9
