Icom IC-F43TR Instruction Manual page 27

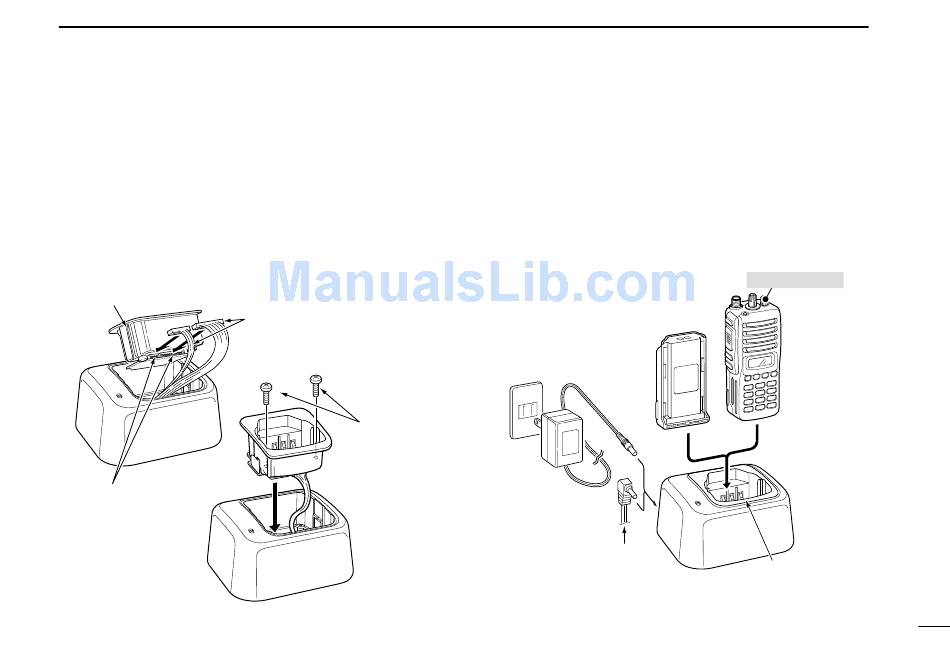

D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
➥ Connect the AD-106
charger adapter
BC-121N as below, then install the AD-106 into the holder
space of the BC-119N or BC-121N with the supplied
screws.
Desktop charger adapter
Plugs
* This illustration is described with the BC-119N.
must be installed into the
and the BC-119N/
Connectors
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version).
Battery
AC adapter
pack
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can be
used instead of the AC adapter.
8
Transceiver
Turn power OFF
AD-106 charger
adapter is installed
in BC-119N.
23
