4 Replacement Procedures
2. Remove the Bluetooth card from the logic upper assembly by pulling up and to the left.

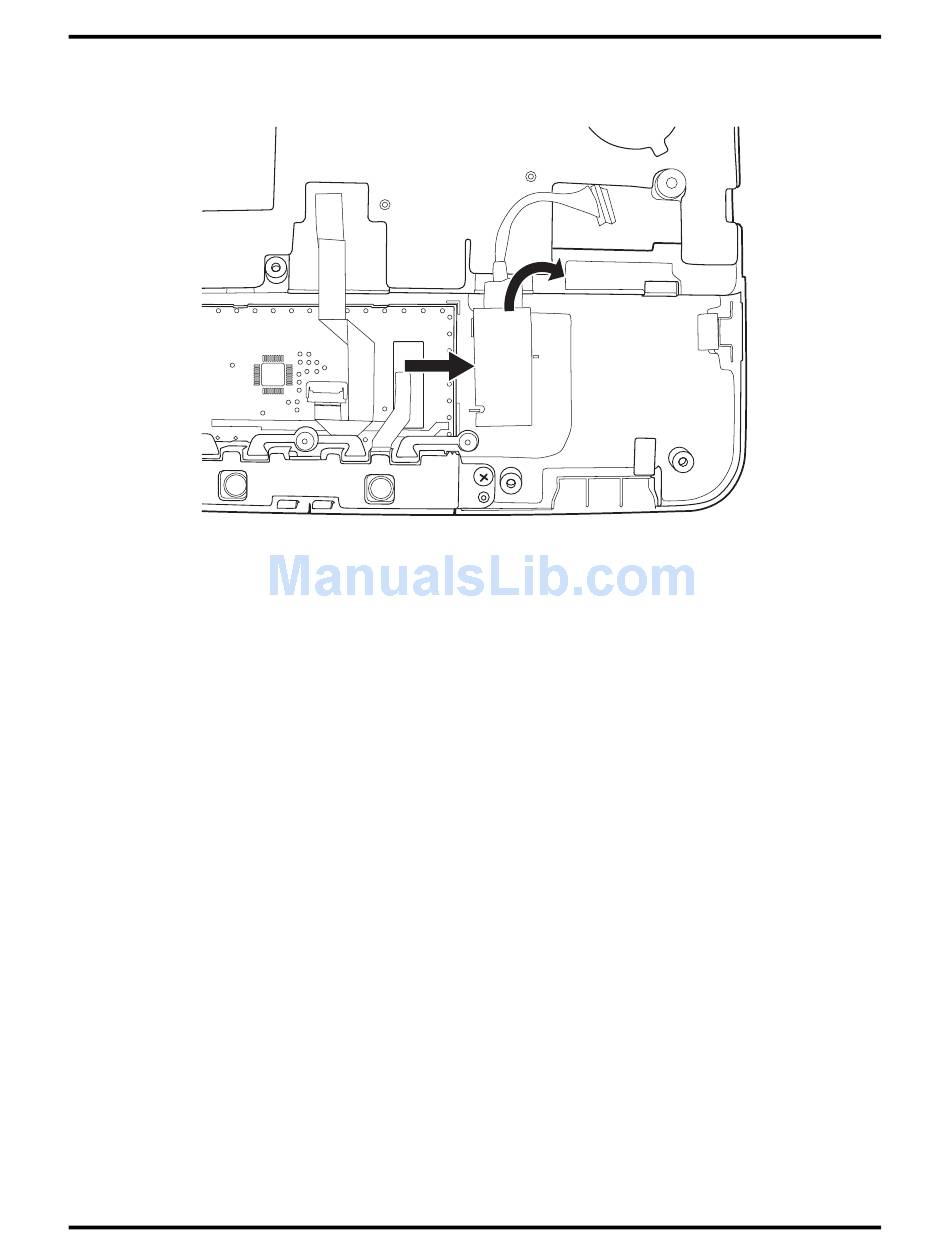

Figure 4.21 Removing the Bluetooth Card from the Logic Upper Assembly
Installing the Bluetooth Card
Install the Bluetooth card according to the following procedures and Figure 4.22.
1. Seat the Bluetooth card in the correct position on the logic upper assembly.
NB200 Maintenance Manual
Error! Style not defined. Error! Style not defined.
4-30
