Spray
gun
Safety
Latch
High Pressure
Hose

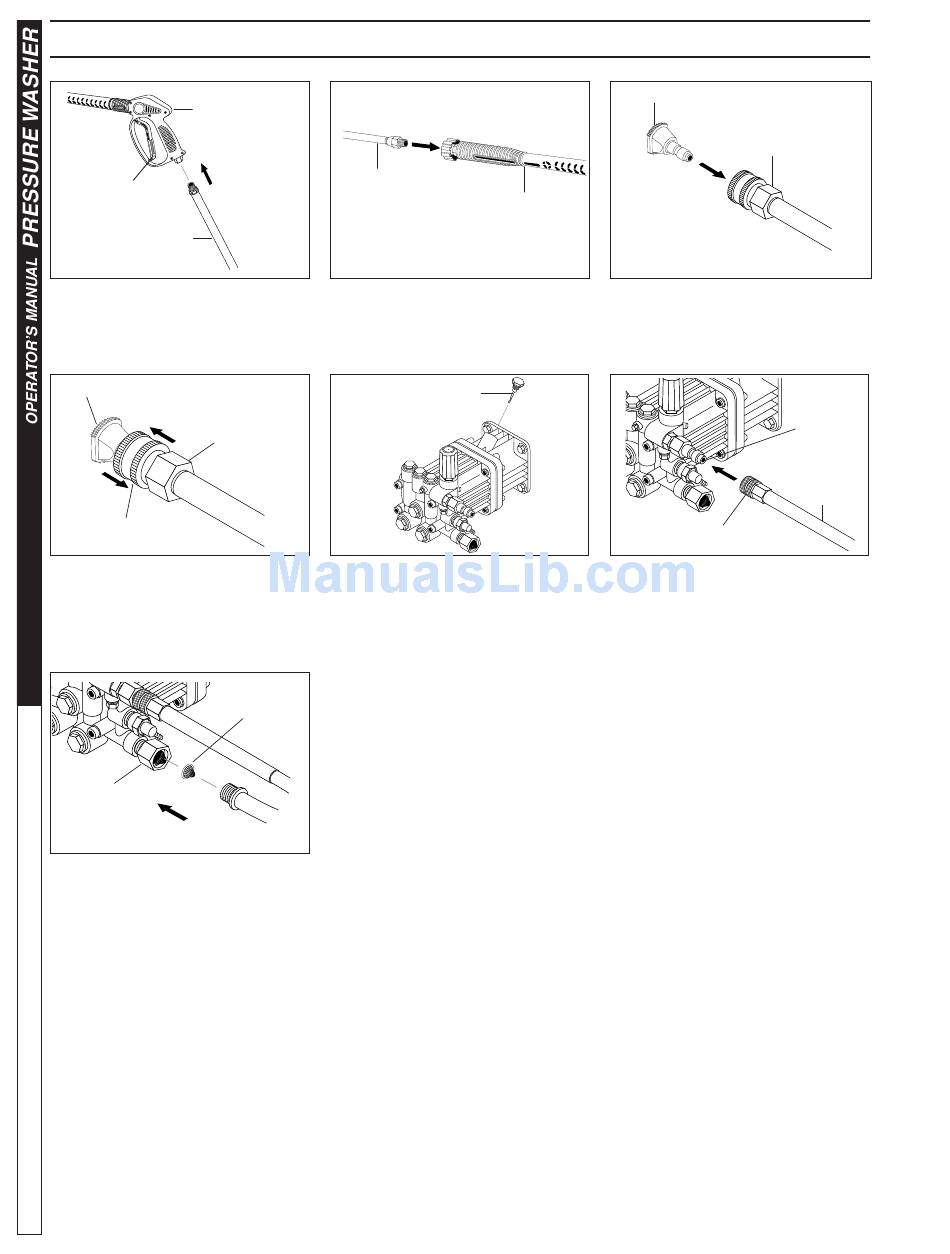

STEP 1: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
Nozzle
Wand
Collar
STEP 4: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
Pump
Water Inlet
garden
STEP 7: Inspect strainer for block-
age. Connect the garden hose to
pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
6

ASSEMbLy INSTRUCTIONS

Nozzle
Extension
STEP 2: Attach nozzle extension
to spray gun/wand. Tighten both
by hand.
Wand
Coupler
STEP 5: Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick. Use 30 wt.
non detergent oil.
Strainer
Hose
9.800-088.0 • REV. 0/08
Spray gun/
Wand
Dipstick
Nozzle
Wand
Coupler
STEP 3: Pull the spring-loaded
collar of the wand coupler back
to insert your choice of pressure
nozzle.
Coupler Collar
STEP 6: Connect the high pres-
sure hose to the pump discharge
fitting. Push coupler collar forward
until secure.
Pump
Discharge
fitting
High
Pressure
Hose
