BIO RAD Bio-Scale Instruction Manual page 7

Platen pressure
screw
3
2
6
1
5
9
4
8
7 .
0
C
r m
A la

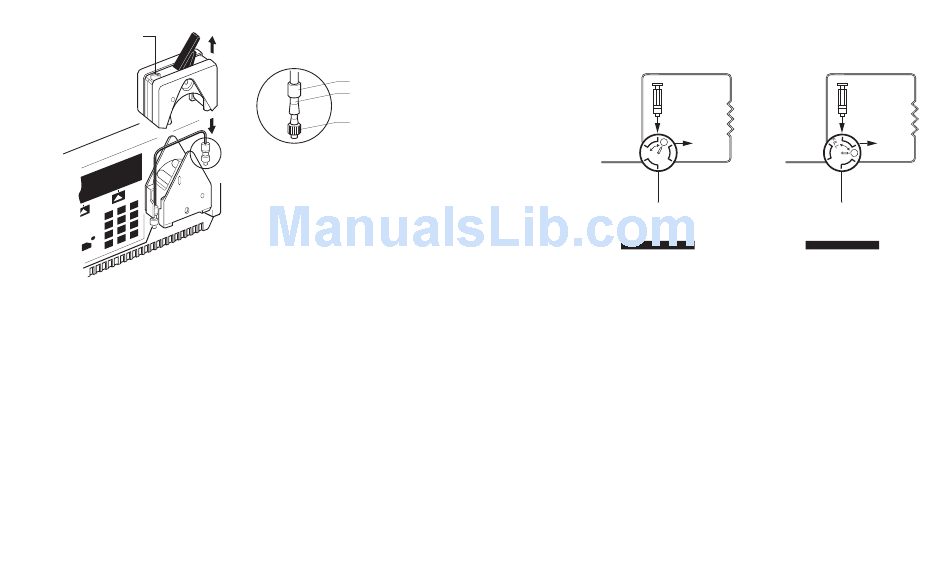

Fig. 1. BioLogic LP system setup. (Use orange lock rings
and medium size barb fittings with 1.6 mm tubing.)
2. To maximize gradient accuracy and to apply
samples efficiently, install 1.6 mm ID tubing
from the pump to the MV-6 sample inject valve
(if available). If using the MV-6 sample inject
valve, turn the knob counterclockwise as far as
it will go so it corresponds to the printed diagram
on the valve (see Figure 2).
Lock-ring
Tubing
Luer fittimg
See detail
8
SAMPLE LOOP
INJECT
PORT
MV-6
TO
WASTE
INJECT
BIOLOGIC LP
FILL
VALVE
SYSTEM OR ECONO
GRADIENT PUMP
TO
COLUMN
"FILL" POSITION
Fig. 2. Connecting to an MV-6 valve.
3. Connect the inlet of the cartridge to the male
luer fitting on the MV-6 sample inject valve (see
Figure 2). If not using the MV-6 sample inject
valve, connect a barb to male luer fitting on the
1.6 mm ID tubing, then connect to the top of
the female luer on the Bio-Scale Mini cartridge.
For optimum performance, a cartridge should
be mounted vertically with the arrow on the
cartridge pointing downward (see Figure 3).
SAMPLE LOOP
INJECT
PORT
MV-6
WASTE
INJECT
TO
VALVE
BIOLOGIC LP
SYSTEM OR ECONO
GRADIENT PUMP
TO
COLUMN
"INJECT" POSITION
9
