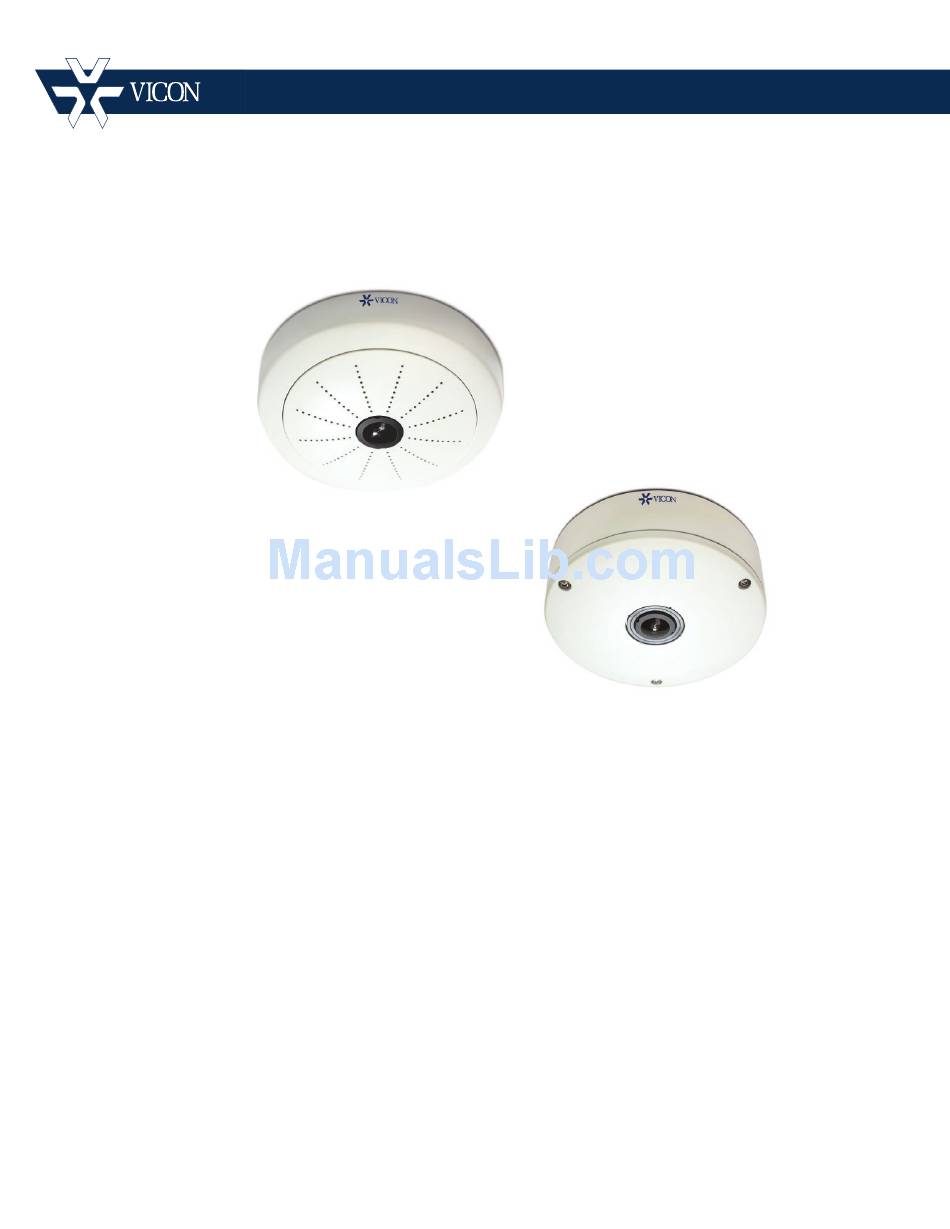

Setup Guide
XX252-20-02
Setup Guide for V9360
Series Cameras
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8252-20-02
Issued: 614
Product specifications subject to change without notice.
Copyright © 2014 Vicon Industries Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the V9360 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon V9360 Series

Summary of Contents for Vicon V9360 Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 The camera has an IP Utility (Discovery) tool that provides a way for it to be found on the network. After it has been added to the network, the camera is then connected to the ViconNet system. Go to Vicon’s website, www.vicon-security, to find full installation and user manuals and the IP Utility tool.

  • Page 3: Installation And Connections

    Setup V9360 Hemispheric Cameras Installation and Connections The camera package includes all the hardware necessary for installation, including terminal blocks. A template is also included for installation. Additionally, a PC and monitor, a Network Switch and an RJ-45 network cable (1 for each device) are required. PoE switches that are IEEE802.3af compliant can power the camera directly.
  • Page 4 Setup V9360 Hemispheric Cameras Outdoor Version Audio Input/Output 12 VDC Power Input Ethernet Port Digital Input/Output Reset Button Micro SDHC Card Slot Power Button...
  • Page 5 Setup V9360 Hemispheric Cameras Digital Input/Output Digital Output: 2 digital outputs for connecting external devices, such as relays. Connect Pin 2 with Pin 4 or Pin 6 with Pin 8. Digital Input: Alarm input, NO/NC. Pin 1 Ground. Connect with Pin 3 for DI control loop.
  • Page 6 Setup V9360 Hemispheric Cameras 12 VDC Power Input Connect DC power source to the terminal block. The wire with white dashed lines is the live wire, which should connect to the 12V pin. NAME DESCRIPTION E-Ground Chassis Ground DC Power Input 12 V Refer to the complete Hardware Manual for detailed instruction on installation and connections.

  • Page 7: Camera Discovery

    Internet Explorer). Proceed directly to the Adding Cameras to the Nucleus section. 1. Execute the IP Utility (found on our website, www.vicon-security.com/ on this camera’s page; it will search cameras on the network automatically. 2. Select the camera (underlined IP link) on the list to access the camera.
  • Page 8 Setup V9360 Hemispheric Cameras 4. Connect to the desired camera by clicking on the IP address. 5. After connecting to the camera, the Login page will display. 6. The default User Name is Admin; the default Password in 123456. 7. Note If your browser has pop-up blocking enabled, you will have to allow the camera’s IP.

  • Page 9: Adding Cameras To The Nucleus

    Setup V9360 Hemispheric Cameras If you have access to a web browser and know the camera IP address, you can go directly to the Network screen from the camera browser interface to configure the network. Select Static IP Address. Enter the desired IP address (avoid the default IP 192.168.0.100).
  • Page 10 Setup V9360 Hemispheric Cameras 4. Click on the Open Standard Camera settings screen. 5. The detected cameras are displayed and are added automatically to the list. A message will display to add a User Name and Password for each detected camera. The User Name and Password for the camera are the camera’s identity in its browser.
  • Page 11 Setup V9360 Hemispheric Cameras 9. Click on the button. This opens a screen that allows setting up authorization for Live View, Playback and PTZ actions by selecting ( ) or deselecting ) the appropriate categories, as required. If all cameras are to have the same authorizations, check Apply to all cameras box to avoid setting up each camera individually.
  • Page 12 Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com...
