User Guide
XX271-10-01
V9360-1 Series
Network Hemispheric Camera
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8271-10-01
Issued: 116
Product specifications subject to change without notice.
Copyright © 2016 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V9360-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon V9360-1 Series

Summary of Contents for Vicon V9360-1 Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Table Of Contents

    Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................5 Connectors (Indoor Only)..................... 7 All-in-One Cable (Optional) ..................8 Function Cables (Outdoor Only) .................. 8 Camera Cabling ........................9 Power Connection ....................... 9 Ethernet Cable Connection ..................9 Waterproof Cable Connector ..................

  • Page 3: Overview

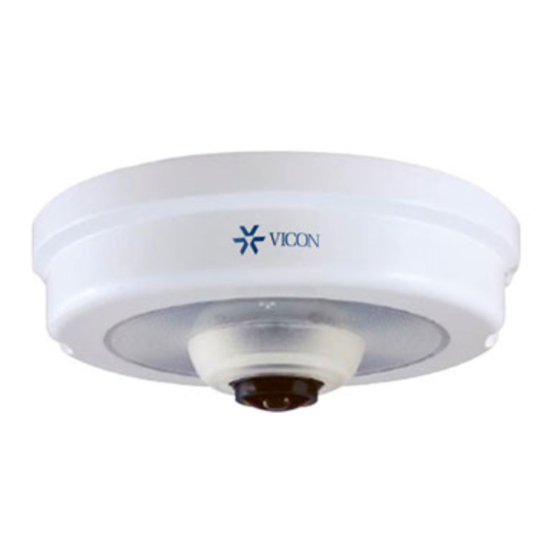

    Overview The Hyper Fisheye IP Camera is a high resolution surveillance solution, featuring 180° panoramic view (wall mount) or 360° panoramic view (ceiling mount) without blind spots. The camera supports 6 Megapixels resolution streaming at 30fps which guarantees smooth video viewing. With the embedded 180°...

  • Page 4: Package Contents

    Package Contents Please check the package containing the following items listed below. Indoor Hyper Fisheye Self-Tapping Screw Plastic Anchor Security Screw IP Camera (x3) (x3) (x1) Security Torx Power Terminal Quick Guide Block (x1) Function Cable (Optional) NOTE: The supplied self-tapping screws are for soft substance / material installation such as wood.
  • Page 5 Outdoor Hyper Fisheye Self-Tapping Screw Plastic Anchor Security Screw IP Camera (x3) (x3) (x1) Security Torx Power Terminal Quick Guide Block (x1) NOTE: The supplied self-tapping screws are for soft substance / material installation such as wood. For other installation environments such as cement wall, it is required to pre-drill and use plastic anchors before fastening the supplied self-tapping screws on the wall.

  • Page 6: Dimensions

    Dimensions The dimensions of the camera are shown below. Indoor...
  • Page 7 Outdoor...

  • Page 8: Connectors (Indoor Only)

    Connectors (Indoor Only) Please loosen the security screws and open the cover to reach the connectors. The diagram below shows the connectors of the camera. Definition for each connector is given as follows. Connector Definition Remarks DC 12V AC 24V 1 Power Power connection (DC 12V / AC 24V)

  • Page 9: All-In-One Cable (Optional)

    All-in-One Cable (Optional) Connector Definition Remarks Please refer to the Alarm & Audio I/O in Alarm & Audio I/O the table under Connectors. Pink Audio In Two-way audio Audio I/O Green Audio Out transmission Alarm In – Alarm I/O Alarm In + Alarm connection (4-Pin Terminal Block) Alarm Out –...

  • Page 10: Camera Cabling

    Camera Cabling Please follow the instructions below to complete the cable connections. Power Connection For power connection, please refer to section Connectors (Indoor Only) for the indoor models, and see section Function Cables (Outdoor Only) for the outdoor models. Alternatively, users can power the camera by PoE if a Power Sourcing Equipment (PSE) switch is available.

  • Page 11: Waterproof Cable Connector

    Waterproof Cable Connector Follow the instruction below to waterproof the connectors of different types of cables. The supported cables are shown as below. All-in-One Cable All-in-One Cable IP66 RJ-45 Cable of the Indoor Models of the Outdoor Models (Outdoor Models Only) All-in-One Cable of the Indoor Models / Outdoor Models Follow the steps below to waterproof the connectors of the All-in-One cable.
  • Page 12 IP66 RJ-45 Cable (Outdoor Models Only) For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent water damage. Follow the steps below for cable connection. Step 1: Take out the supplied connector from the RJ-45 IP66 plug. Loosen the thread-lock sealing nut on the plug.

  • Page 13: System Requirements

    System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement Minimum : ® 1. Intel Core™ i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended: ®...

  • Page 14: Access Camera

    Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>...
  • Page 15 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
  • Page 16 Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below. Ceiling Mount Installed Camera...
  • Page 17 Wall Mount Installed Camera NOTE: For more details about the function buttons on the Home page, please refer to the Hyper IP Camera Menu Tree in the supplied CD.

  • Page 18: Setup Video Resolution

    Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default video resolution of 5M and 6M models are shown as below. The default resolution varies with different Fisheye Correction types, Front End Correction (Edge Dewarping) and Back End Correction (Software Dewarping).

  • Page 19: Configuration Files Export / Import

    Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera.

  • Page 20: Tech Support Information

    Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed the Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the IP camera. Deleting the Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.

  • Page 21: Setup Internet Security

    Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.

  • Page 22: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 23: Vicon Standard Equipment Warranty

    “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 24 Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes to its software in any of its products at any time and without notice.
  • Page 25 Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com...
