Installation Manual
Camera and Electronic Products for Integrators

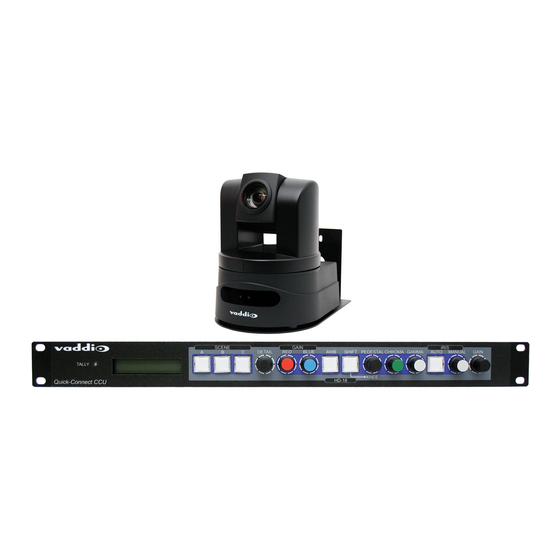

Vaddio™ WallVIEW™ CCU HD-18
High-Definition PTZ Camera featuring the Quick-Connect CCU and EZIM CCU
Model Number 999-6907-000W (North America)
Model Number 999-6907-001W (International)
Arctic White Version
EZIM CCU Card for HD-18
©2010 Vaddio - All Rights Reserved. WallVIEW CCU HD-18 - Document Number 341-889 Rev. C
Installation and User Guide
Model Number 999-6907-000 (North America)
Model Number 999-6907-001 (International)
Quick-Connect CCU for HD-18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VADDIO WallVIEW CCU HD-18
Summary of Contents for VADDIO WallVIEW CCU HD-18
- Page 1 Model Number 999-6907-001 (International) Model Number 999-6907-000W (North America) Model Number 999-6907-001W (International) Arctic White Version EZIM CCU Card for HD-18 Quick-Connect CCU for HD-18 ©2010 Vaddio - All Rights Reserved. WallVIEW CCU HD-18 - Document Number 341-889 Rev. C...
- Page 2 WallVIEW CCU HD-18 WallVIEW CCU HD-18 Overview With the WallVIEW CCU HD-18 PTZ camera and CAT-5 cabling system, Vaddio delivers a solution that allows for easy installation and integration. The camera is built around a 1.3 megapixel, 1/3” CCD with an 18x optical zoom lens, making it the ideal choice for a wide range of high definition video applications.
- Page 3 Tally Light – A tally light is illuminated when the camera receives a VISCA command or from the CCU tally port on the back of the Quick-Connect CCU. IR Sensors – Dual IR sensors are built into the front of the WallVIEW CCU HD-18 to receive IR signals from the IR remote control supplied with the camera.
- Page 4 HD Video Select – A rotary switch allows the user to choose the component HD output video resolution and format. See page 7 for additional information on switch settings. 12 VDC Input – NOTE: The power input is not used with the WallVIEW CCU HD-18 system. This is only used on the standard, ClearVIEW HD-18 camera.
- Page 5 The Gain control boosts the signal level when the iris is open all the way, and there is not enough lighting available. To manually adjust the gain Auto Iris must be off. WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 5 of 18...
- Page 6 PR of YPbPr on BNC-F connector COMP: Composite (CVBS) Video on BNC-F connector Video RJ-45 Return of the camera’s four (4) video signals from the EZIM CCU to the Quick-Connect CCU on CAT-5 cable. WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 6 of 18...
- Page 7 For RS-232, use a standard CAT-5 cable (568B termination for RJ-45 connectors) from the RS-232 port on the back of a Vaddio ProductionVIEW camera controller or switcher. If the camera will be connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 adapter cable is supplied with the camera for RS-232.
- Page 8 Pre-wire all cabling as required (see the wiring diagram example below). • The Thin Profile Wall Mount for the WallVIEW CCU HD-18 can be mounted directly to a 2-gang wall box or can be mounted to the drywall using four dry wall anchors.
- Page 9 Place the camera onto the camera mount and using the ¼”-20 screws to secure the camera to the mount. Step 5: Connect the Vaddio 36 VDC power supply to an AC outlet. Power will travel down the Power CAT-5 cable to the camera. The camera will “Home” to a centered position ready for control information from the IR remote control or RS-232 camera controller of the integrators’...
- Page 10 WallVIEW CCU HD-18 WallVIEW CCU HD-18 WallVIEW CCU HD-18 999-6907-000 (North America) Part Numbers WallVIEW CCU HD-18 999-6907-000W (Arctic White - North America) WallVIEW CCU HD-18 999-6907-001 (INT’L) WallVIEW CCU HD-18 999-6907-001 (Arctic White - INT’L) • Vaddio ClearVIEW HD-18 1/3”...
- Page 11 This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
- Page 12 This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
-
Page 13: Warranty Information
Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. - Page 14 Power Connector RJ-45 Video Connector RJ-45 VIDEO YPbPr CVBS+ Power+ CVBS GND Power- Power+ 12345678 12345678 Power- PB GND Power+ Y GND Power- Power+ POWER VIDEO Power- Appendix 2: Camera Dimensions WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 14 of 18...
- Page 15 TXD (to RXD of control source) No Flow control The Vaddio ClearVIEW HD-18 Control Protocol is similar, but not identical to the Sony™ NOTE: VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-18 specific commands in the following Command and Inquiry Lists.
- Page 16 81 01 04 01 03 FF ICR Off Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) * Actual Pan/Tilt ranges defined in Inquiry list WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 16 of 18...
- Page 17 50 00 00 0p 0q FF pq: ExpComp Pos -Iris Position CAM_ICRModeInq 81 09 04 01 FF y0 50 02 FF ICR On y0 50 03 FF ICR Off WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 17 of 18...
- Page 18 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2010 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ProductionVIEW, Quick-Connect, ControlVIEW, WallVIEW, EZCamera, EZIM and PowerRite are registered trademarks of Vaddio.
