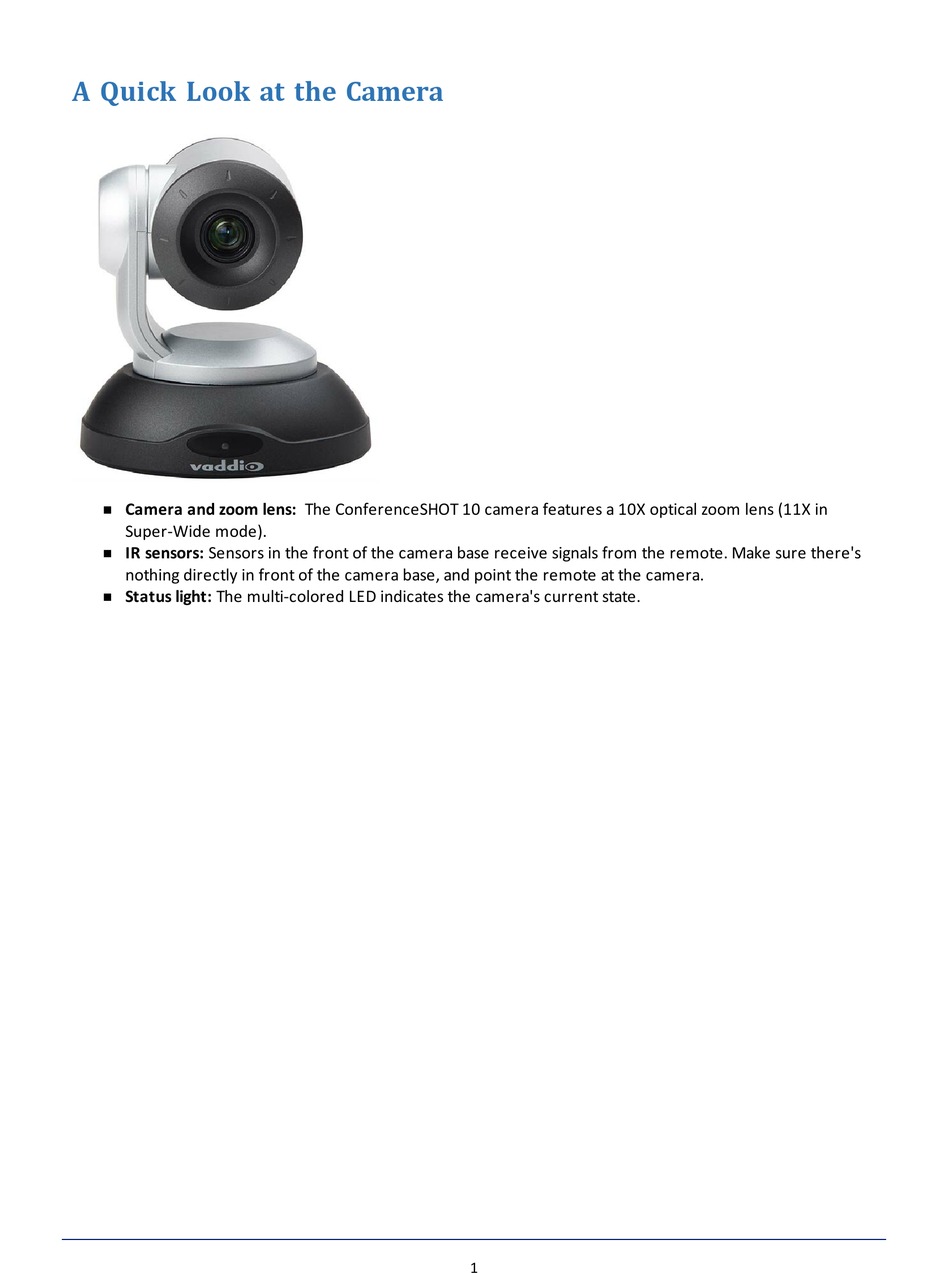

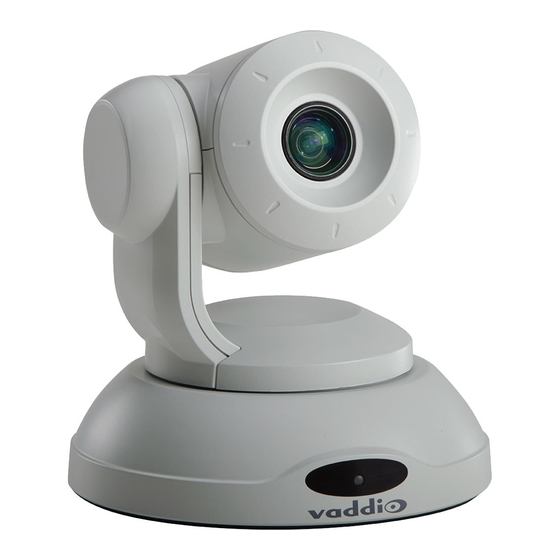

A Quick Look at the Camera
Camera and zoom lens: The ConferenceSHOT 10 camera features a 10X optical zoom lens (11X in
n
Super-Wide mode).
IR sensors: Sensors in the front of the camera base receive signals from the remote. Make sure there's
n
nothing directly in front of the camera base, and point the remote at the camera.
Status light: The multi-colored LED indicates the camera's current state.
n
1
