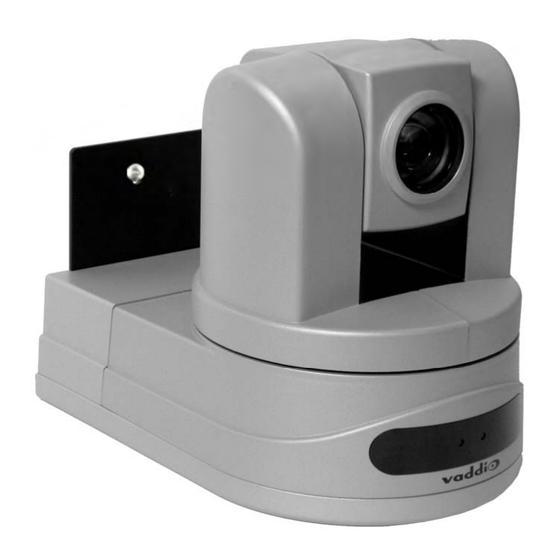

Vaddio wallview hd-20 dvi/hdmi high definition robotic ptz camera featuring the quick-connect™ dvi/hdmi sr interface and the conceal™ wall mounting system
Hide thumbs Also See for WALLVIEW HD-20 DVI/HDMI:
Table of Contents

Advertisement

Quick Links

Download this manual
V
™
V
™
A
D
D
I
O
A
D
D
I
O

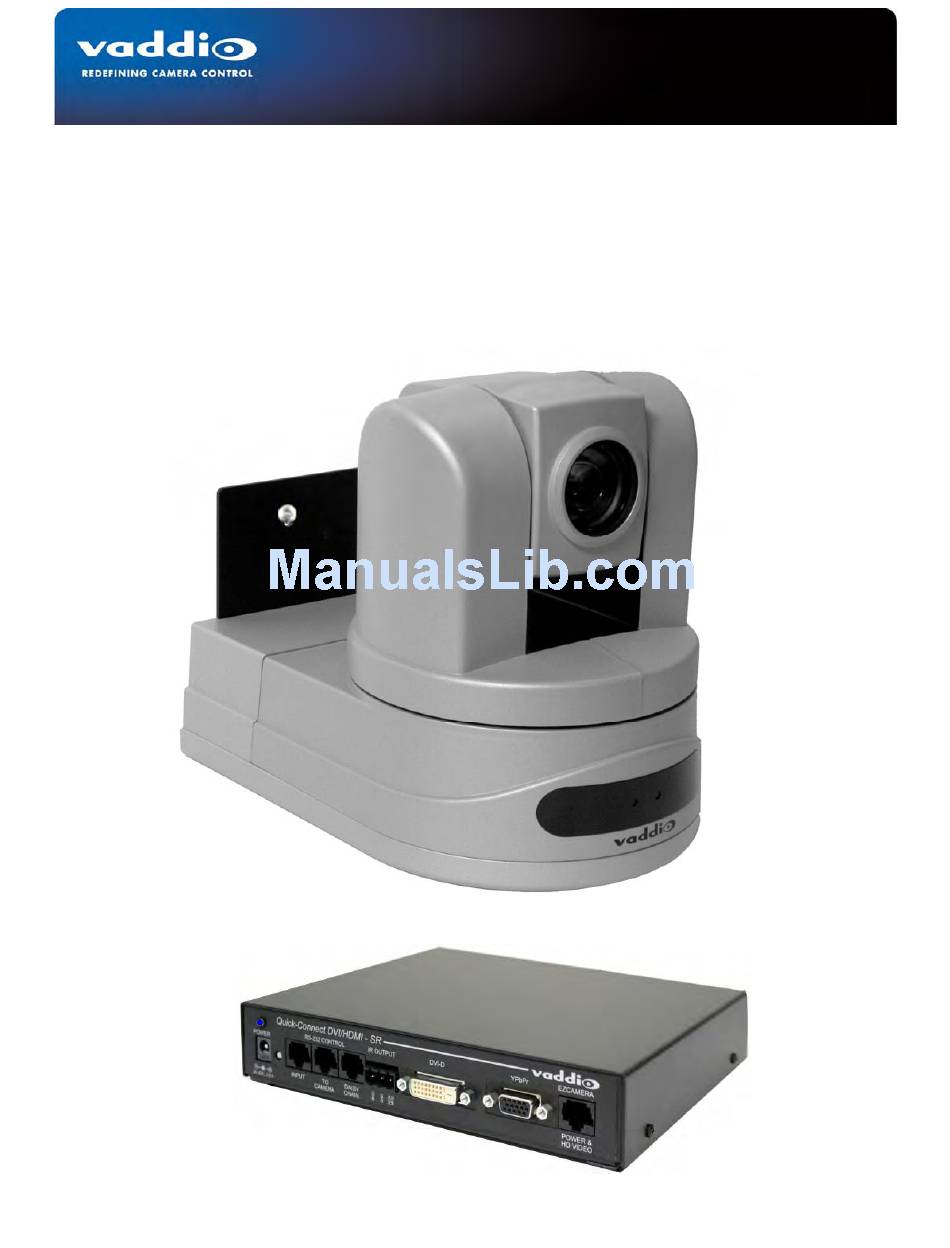

High Definition Robotic PTZ Camera Featuring the Quick-Connect™
DVI/HDMI SR Interface and the CONCEAL™ Wall Mounting System
Model Number 999-6956-000 (North America)
Model Number 999-6956-001 (International)
Quick-Connect DVI/HDMI SR Interface
PN: 998-1105-018
©2012 Vaddio - All Rights Reserved ● WallVIEW DVI/HDMI HD-20 ● Document Number 342-0180 Rev. D
W
V
I
E
W
V
I
E
A
L
L
A
L
L
Installation and User Guide
W
™
H
D
-
2
W
™
H
D
-
2
0
D
V
I
/
H
D
0
D
V
I
/
H
D
M
I
M
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WALLVIEW HD-20 DVI/HDMI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VADDIO WALLVIEW HD-20 DVI/HDMI

Summary of Contents for VADDIO WALLVIEW HD-20 DVI/HDMI

  • Page 1 DVI/HDMI SR Interface and the CONCEAL™ Wall Mounting System Model Number 999-6956-000 (North America) Model Number 999-6956-001 (International) Quick-Connect DVI/HDMI SR Interface PN: 998-1105-018 ©2012 Vaddio - All Rights Reserved ● WallVIEW DVI/HDMI HD-20 ● Document Number 342-0180 Rev. D...
  • Page 2 WallVIEW DVI/HDMI HD-20 Inside Front Cover - Blank WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. D Page 2 of 20...
  • Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
  • Page 4 IR sensors are built into the front of the ClearVIEW HD-20 to receive IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue power light is illuminated when the camera is turned on. Compatible Vaddio Switchers and Joystick Controllers: AutoPresenter...
  • Page 5 WallVIEW DVI/HDMI HD-20 ClearVIEW HD-20 PTZ Camera, Rear View with Feature Call-outs: ⑤ ⑨ ⑥ ⑩ ⑦ ⑪ ⑧ ⑫ 5) RS-232 IN & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the IR receivers, which can be transmitted to third party devices.
  • Page 6 For RS-232, use a standard Cat-5e cable and RJ-45 connectors (568B termination) from the RS-232 port on the back of a Vaddio camera controller or switcher. If the camera is connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 control adapter cable is supplied.
  • Page 7 IR signals to be transmitted over the CAT-5 cable to the head end. When using RS-232 control or Vaddio CCU controllers (also via RS-232), turn the IR OUT to OFF. Baud Rate 5: The options for baud rate are either 9600 bps or 38,400 bps.
  • Page 8 WallVIEW DVI/HDMI HD-20 System Connectivity Example 1: Basic system connectivity of a Vaddio WallVIEW™ DVI/HDMI HD-20 and Quick-Connect DVI/HDMI SR Interface with Vaddio ProductionVIEW™ Precision Camera Controller and PreVIEW HD Monitors. WallVIEW DVI/HDMI HD-20 System Power to Camera HSDS Video from...
  • Page 9 WallVIEW DVI/HDMI HD-20 System Connectivity Example 2: System connectivity of two (2) Vaddio HD-20 cameras and two (2) Quick- Connect DVI/HDMI SR Interfaces configured with single control port codec and Daisy Chain Control Emulation (DCCE). Vaddio HD-20 HD Camera Systems...
  • Page 10 Plug the Cat-5e marked RS-232 into the RS-232 CONTROL - TO CAMERA RJ-45. Step 7: Plug your RS-232 controller (Vaddio’s ProductionVIEW HD, Precision Camera Controller, ControlVIEW XHD, AutoPresenter, etc…) into the RS-232 CONTROL INPUT. If you are using a 3 party controller (Crestron®,...
  • Page 11 Step 9: Connect the Vaddio 24 VDC, 2.0A power supply to the POWER Connector on the Quick-Connect and plug the power adapter into an AC outlet. Power will travel down the Power/Video Cat-5e cable to the camera.
  • Page 12 1m (3.3’) DVI-D Male to HDMI Male P/N: 440-5643-001 3m (10’) DVI-D Male to HDMI Male P/N: 440-5643-003 CONCEAL Wall Mounting System for Vaddio ClearVIEW HD-20 5.125” H x 6.75” W x 10” D (13 cm x 17.15 cm x 25.4 cm) Dimensions Approx.
  • Page 13 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 14: Compliance And Ce Declaration Of Conformity - Quick-Connect Dvi/Hdmi Sr Interface

     Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device.  Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 15: Warranty Information

    Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.

  • Page 16: Appendix 1: Ypbpr Video Pin-Out For The Hd-20 Camera & Quick-Connect Analog Ypbpr Output

    WallVIEW DVI/HDMI HD-20 Appendix 1: YPbPr Video Pin-Out for the HD-20 Camera & Quick-Connect Analog YPbPr Output YPbPr Pr GND Y GND Pb GND EZCamera Power & HD Video RJ-45 Connector Pin-outs The video signals are differential (HSDS) and can only be transmitted by the HD-20 and received by the Quick- Connect SR Interface YPbPr Power+...

  • Page 17: Appendix 3: Communication Specification

    No Flow control TXD (to RXD of control source) NOTE: The Vaddio ClearVIEW HD-20 Control Protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-20 specific commands in the following Command and Inquiry Lists.
  • Page 18 WallVIEW DVI/HDMI HD-20 HD-20 Command List (2/2) Command Set Command Command Packet Comments CAM_Backlight 81 01 04 33 02 FF 81 01 04 33 03 FF CAM_Aperture Reset 81 01 04 02 00 FF 81 01 04 02 02 FF Down 81 01 04 02 03 FF Direct...
  • Page 19 WallVIEW DVI/HDMI HD-20 HD-20 Inquiry List (1/1) Inquiry Command Command Command Packet Comments CAM_PowerInq 81 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 81 09 04 47 FF y0 50 0p 0q 0r 0s FF pqr: Zoom Position CAM_WBModeInq 81 09 04 35 FF...
  • Page 20 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, ProductionVIEW, Quick-Connect, AutoPresenter, DCCE, WallVIEW, EZCamera, HSDS and PowerRite are registered trademarks of Vaddio.
