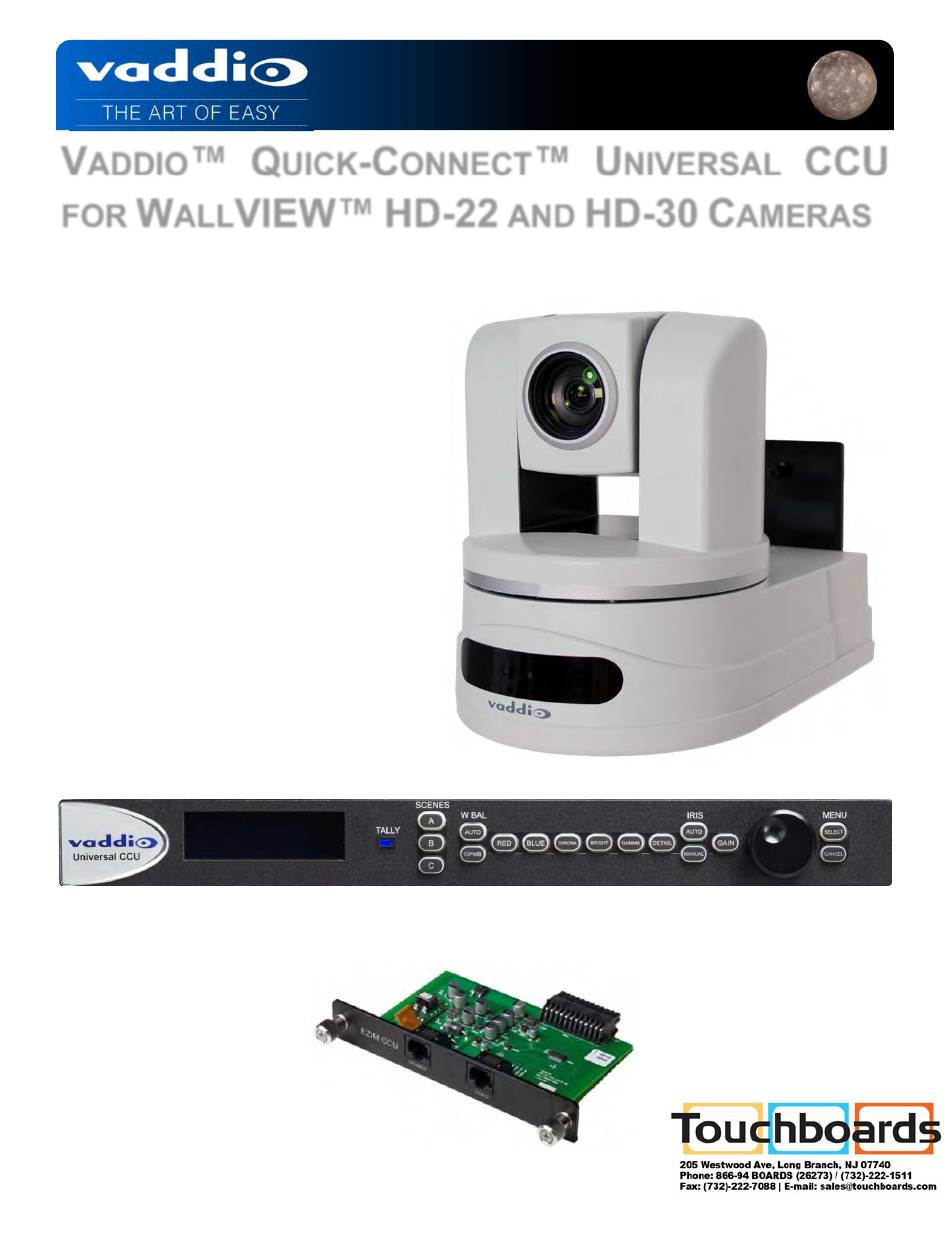

V
™ Q
ADDIO
W
VIEW™ HD-22
FOR
ALL
WallVIEW Universal CCU HD-22
Part Numbers:
999-6967-000:
North America
999-6967-001:
International
WallVIEW Universal CCU HD-30
Part Numbers:
999-6977-000:
North America
999-6977-001:
International
Use this manual in conjunction
with the PowerVIEW HD-22/30
Installation and User Guide.
Part Number: 342-0626
EZIM™ Slot Card Interface
Part Number: 998-6700-006
-C
UICK
ONNECT

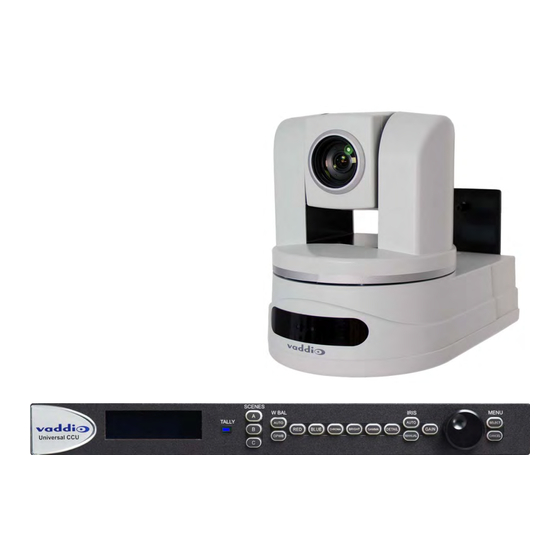

Universal CCU for HD-122 or HD-30 (shown without Rack Ears)
© 2013 Vaddio - All Rights Reserved. Document Number 342-0645 Rev A
Installation and User Guide
Installation and User Guide
™ U
NIVERSAL
HD-30 C
AND
CCU
AMERAS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO WallVIEW Universal CCU HD-22
Summary of Contents for VADDIO WallVIEW Universal CCU HD-22
- Page 1 PowerVIEW HD-22/30 Installation and User Guide. Part Number: 342-0626 Universal CCU for HD-122 or HD-30 (shown without Rack Ears) EZIM™ Slot Card Interface Part Number: 998-6700-006 © 2013 Vaddio - All Rights Reserved. Document Number 342-0645 Rev A...
-
Page 2: Table Of Contents
See the individual PowerVIEW camera manuals for the set-up and operation of the PowerVIEW HD- 22 and the HD-30 HD PTZ Cameras. Please review the Intended Use and Important Safeguards sections on the following page. Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 2 of 16... -
Page 3: Overview
Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. Do not connect Power over Ethernet (PoE) cables directly to the RJ-45 ports on the device as damage may result. -
Page 4: Unpacking
One (1) CONCEAL Mount with hardware kit One (1) 998-1001-232, 9-Pin D-Sub-F to RJ-45F EZCamera Control Adapter One (1) Manual for WallVIEW Universal CCU Systems Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 4 of 16... -
Page 5: Anatomy Of The Universal Ccu
Program in a multi-camera CCU installation. A tally command will also be sent to the camera via RS-232 to light the LED on cameras with on-board tally lights (Vaddio HD Series cameras). Image: Close up View of the Universal CCU HD-22/30 Control Panel HD-22/HD-30 Keypad Controls from (left to right): Touch the button with the parameter to be controlled and adjust the value with the encoder, then touch the cancel button to exit. -
Page 6: Image: Rear Panel Connection And Controls (Left To Right)
Hot swapping is generally advised, so please…turn the camera off before inserting the slot Card. Image: EZIM Slot Card EZIM CCU Slot Card (Front and ISO Views) Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 6 of 16... -
Page 7: The Hd-22 And Hd-30 Control Menu Screens
5) Fluor Hi (fluorescent high) 6) Outdoor The Version Menu screen displays the software versions of the Vaddio cameras attached as a convenience to the operator. The versions shown include the zoom module, the motors and the camera. Version Display Menu... -
Page 8: Installation Basics
Note: Check all Cat-5 cables for continuity in advance of final connection. Plugging the POWER Cat-5 cable into the wrong RJ-45 may cause damage to the camera system and void the warranty! Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 8 of 16... - Page 9 Step 6: Connect System Power Connect the Vaddio 36 VDC power supply to the Quick-Connect Universal CCU Interface and an AC outlet. The CCU will power the camera via the Cat-5 cable. The camera will “Home” to a centered position ready for control information from the Universal CCU.
-
Page 10: Drawing: Basic System Connectivity
The VIDEO Cat-5 cable uses all four pairs for video. The RS-232 Cat-5 provides communication to the camera for CCU and PTZ control. These Cat.-5 cables can be run up to 500’ (152.4m). See Appendix 1 for wiring and pin-out information. NOTE: Daisy-Chain configurations are not supported. Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 10 of 16... -
Page 11: Optimizing System Performance
Optimizing the CCU settings will help achieve maximum performance from the system. Difficult lighting is one of the most challenging problems video system integrators face. The Vaddio CCU will provide the flexibility to fine tune for variables such as cable length, day/night lighting transitions and lighting color temperature. -
Page 12: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 13: Compliance And Ce Declaration Of Conformity - Universal Ccu And Ezim Ccu
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 14: Appendix 1: Cable Pin-Outs For The Quick-Connect Ccu System
Not Used Pin - 3 Pin - 4 Pin - 5 PB GND 12345678 Pin - 6 Y GND Pin - 7 Pin - 8 Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 14 of 16... - Page 15 Not Used Pin - 3 Pin - 4 12345678 Pin - 5 PB GND Pin - 6 Y GND Pin - 7 Pin - 8 VIDEO Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0645 Rev A Page 15 of 16...
- Page 16 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Quick-Connect, ProductionVIEW, HSDS, EZIM, WallVIEW, CONCEAL and PowerVIEW are trademarks of Vaddio.
