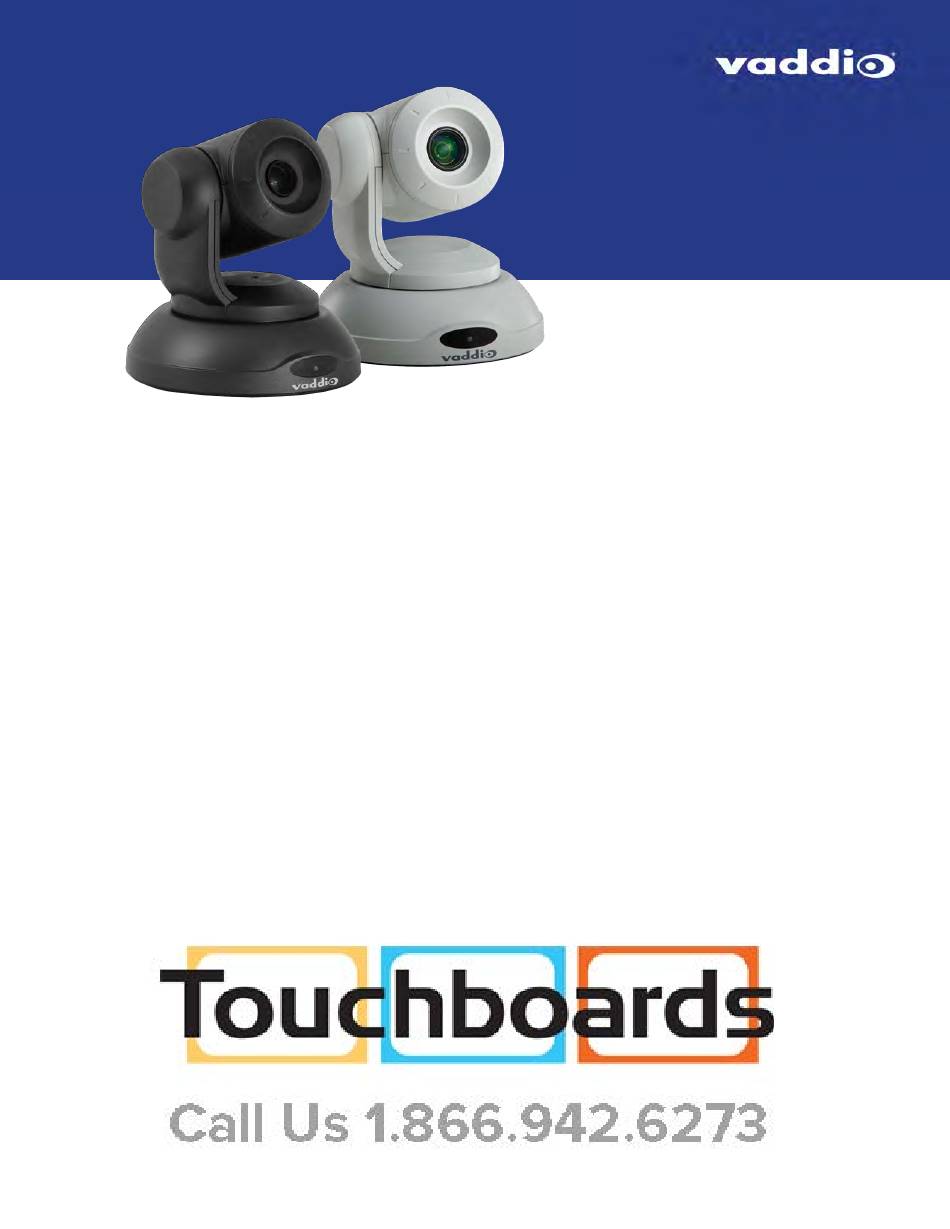

- Page 1 Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Document 411-0015-31 Rev A October 2017...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide Features Unpacking the Camera A Quick Look at the Camera Back of the Camera Switch Settings Installation Before You Install the Camera Don’t Void Your Warranty! Cabling Notes Installing the Wall Mount About Ceiling-Mounted Cameras Installing the Camera Basic Connections Powering Up the Camera... -
Page 3: Overview
Overview This guide covers the ConferenceSHOT FX USB 3.0 fixed camera, worldwide part numbers 999-20000-000 (black) and 999-20000-000W (white). What's in this Guide This guide covers: Unpacking the camera Tips for a successful installation Instructions for installing the camera mount... -
Page 4: Unpacking The Camera
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Unpacking the Camera Make sure you received all the items you expected. Caution: Use the power supply shipped with the camera. Using a different power supply may create an unsafe operating condition or damage the camera, and will void the warranty. -
Page 5: A Quick Look At The Camera
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera A Quick Look at the Camera Camera and Zoom Lens: The ConferenceSHOT FX camera features a 3X optical zoom lens. IR sensor: Receives signals from the remote. Make sure there's nothing directly in front of the camera base, and point the remote at the camera. -
Page 6: Switch Settings
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Switch Settings The camera uses DIP switches to determine certain camera functions. A label on the bottom of the camera provides a quick reference for setting the switches. When the camera is right side up, switches are in their default positions when they are up. IR Frequency Selection:The IR Remote Commander can control up to three cameras in the same room with different IR frequencies. -
Page 7: Installation
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these things happen, return it to Vaddio for safety and functional testing. Learn more at www.vaddio.com/products. -
Page 8: Installing The Wall Mount
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Installing the Wall Mount You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. If you mount it to a wall box, use the cover plate screws supplied with the wall box. -
Page 9: Installing The Camera
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Installing the Camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage. Caution: Check Cat-5 cables for continuity before using them. Using the wrong pin-out may damage the camera system and void the warranty. -
Page 10: Basic Connections
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Basic Connections Here is an example of how the camera might be set up in a conference room. In this setup, a computer uses a unified communications conferencing application with the camera and a conference phone. Powering Up the Camera Connect camera power. -
Page 11: Next Steps
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera Next Steps The camera is now ready to configure and use. This information is available in the Configuration and Administration Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera. It is also included in the Integrator's Complete Guide to the ConferenceSHOT FX USB 3.0 Fixed Camera. -
Page 12: Compliance Statements And Declarations Of Conformity
(2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 13: European Compliance
Installation Guide for the ConferenceSHOT FX USB 3.0 Fixed Camera European Compliance This product has been evaluated for electromagnetic compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 14: Warranty Information
Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or... -
Page 15: Index
mounting the camera 5, 7 Index network port 3 anatomy of the camera 3 operating environment 5, 9 cable connectors 3, 5 packing list 2 camera ID setting (DIP switch) 4 part numbers 2 camera mount 2, 5-7 power supply 2 installing 6 precautions 2, 5 camera placement 5... - Page 16 Vaddio and ConferenceSHOT are trademarks or registered trademarks of Milestone AV Technologies. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
