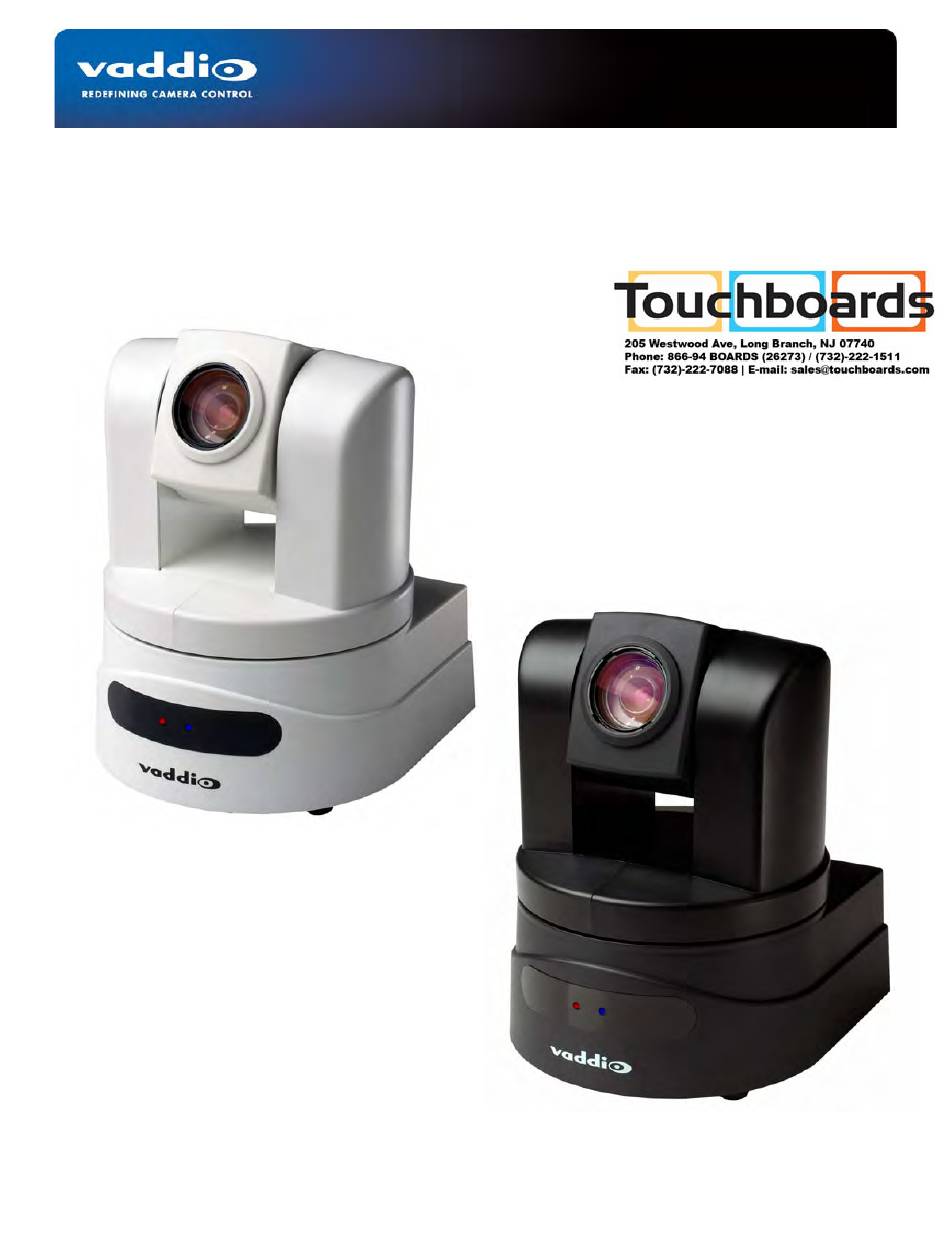

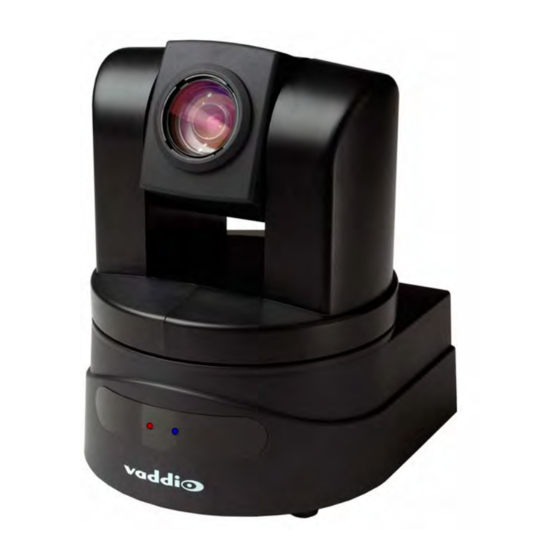

High Definition Integrated Robotic PTZ Camera
Black Version
Part Number 999-6940-000 (North America)
Part Number 999-6940-001 (International)
©2011 Vaddio - All Rights Reserved
™
C
™
C
L
E
A
L
E
A
●
ClearVIEW HD-19
I
NSTALLATION AND
V
I
E
W
V
I
E
W
R
R
Arctic White Version
Part Number 999-6940-000AW (North America)
Part Number 999-6940-001AW (International)
●
Document Number 342-0259 Rev. A
U
G
SER
UIDE
™
H
D
-
1
™
H
D
-
1
9
9
Advertisement
Table of Contents
Related Manuals for VADDIO CLEARVIEW HD-19
Summary of Contents for VADDIO CLEARVIEW HD-19
- Page 1 High Definition Integrated Robotic PTZ Camera Arctic White Version Part Number 999-6940-000AW (North America) Part Number 999-6940-001AW (International) Black Version Part Number 999-6940-000 (North America) Part Number 999-6940-001 (International) ©2011 Vaddio - All Rights Reserved ● ● ClearVIEW HD-19 Document Number 342-0259 Rev. A...
- Page 2 ClearVIEW HD-19 Inside Front Cover - Blank ClearVIEW HD-19 Manual 342-0259 Rev. A Page 2 of 16...
-
Page 3: Intended Use
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. - Page 4 A red tally light is illuminated when the camera receives a VISCA command from an external control system. 3) IR Sensors: IR sensors are built into the front of the ClearVIEW HD-19 to receive IR signals from the IR remote control supplied with the camera as well as other 3 party remotes for the IR forwarding feature.
- Page 5 Interface to supply power and return HSDS video from the camera. 12) Slot for Optional Cards: Optional slot cards can be plugged into the ClearVIEW HD-19 camera (the HD-SDI and the EZIM CCU Slot Cards are available). ClearVIEW HD-19 Manual 342-0259 Rev. A...
-
Page 6: Getting Started
First Time Set-up with the ClearVIEW HD-19: The ClearVIEW HD-19 was designed to be exceptionally easy to use and operate. There is documentation at the back of the manual for pin-outs for all of the connectors on the ClearVIEW HD-19 camera. - Page 7 Depending on the codec that is used, and which RS-232 port is used with a codec, special DB-9 to RJ-45 adapters may sometimes be required. Refer to Vaddio’s website, price list or on the ClearVIEW HD-19 web page on specific diagrams for wiring the camera to videoconferencing codecs.
- Page 8 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.
-
Page 9: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 10: General Specifications
ClearVIEW HD-19 General Specifications: ClearVIEW HD-19 High Definition PTZ Camera Part Numbers ClearVIEW HD-19 North America 999-6940-000 (Black), 999-6940-000AW (Arctic White) ClearVIEW HD-19 International 999-6940-001(Black), 999-6940-001AW (Arctic White) Image Sensor 1/3-Type Exmor High-speed, Progressive Scan CMOS Sensor with 1.3 Megapixels Video Output Resolutions HD: 1080p/60/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50... - Page 11 Wall Mount Bracket 15-pin to Male BNC 998-1002-232 535-2000-230 Output Cables Polycom RS-232 Adapter 440-5600-001 (3 ft.) 998-1003-232 440-5600-002 (6 ft.) 440-5600-003 (7 inch.) Polycom HDX 8000 Series Adapter 998-1006-232 ClearVIEW HD-19 Manual 342-0259 Rev. A Page 11 of 16...
- Page 12 TXD (to RXD of control source) No Flow control NOTE: The Vaddio ClearVIEW HD-19 Control Protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-19 specific commands in the following Command and Inquiry Lists.
- Page 13 Range (0x000-0xC000) dependent on Zoom Position **Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list ClearVIEW HD-19 Manual 342-0259 Rev. A Page 13 of 16...
- Page 14 50 00 00 0p 0q FF pq: ExpComp Pos CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On - ICR filter Out y0 50 03 FF Off – ICR filter In ClearVIEW HD-19 Manual 342-0259 Rev. A Page 14 of 16...
- Page 15 0x0D 0.90 0x0C 0.85 0x0B 0.80 0x0A 0.75 0x09 0.70 0x08 0.65 0x07 0.60 0x06 0.55 0x05 0.50 0x04 0.45 0x03 0.40 0x02 0.35 (Default) 0x01 0.30 0x00 0.25 0.20 ClearVIEW HD-19 Manual 342-0259 Rev. A Page 15 of 16...
- Page 16 ©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ProductionVIEW, ClearVIEW, Quick-Connect, EZCamera, AutoPresenter, HSDS and PowerRite are registered trademarks of Vaddio.
