VADDIO WALLVIEW CCU HE100 Installation And User Manual

Camera and Electronic Products for Integrators
W VIEW™ CCU HE100
ALL
Vaddio™ Quick-Connect™ CCU System for the Panasonic® AW-HE100 PTZ Camera
OVERVIEW
The Vaddio WallVIEW CCU HE100 (Figure 1) is built for use with
the Panasonic AW-HE100 high definition PTZ Camera. Vaddio's
HE-100 camera is designed for easier integration where the
standard Panasonic RS-422 control is converted to RS-232 for
operation with our complete line of ProductionVIEW PTZ camera
controllers and seamless switchers.
The Quick-Connect CCU HE100 allows the user to control the
color output of the camera's image sensor, through both Red
and Blue Gain knobs Detail, as well as Iris and Gain levels, to
provide a higher quality image.
Pedestal, Gamma and Chroma adjustments for added fine-
tuning of the camera's image. The system uses high speed
differential signaling (HSDS), an active transmission system that
delivers low-loss, high-quality video over CAT-5 cabling
distances up to 500' (152.4m).
The system is capable of high definition (HD) 1080i or 720p component video and has a simultaneous SD
composite video output. The AW-HE100 comes in either NTSC or PAL formats. The Quick-Connect CCU
for the HE-100 has many new features, including Tally illumination on the camera which allows the presenter
to know which camera is live, as well as Genlock delivered to the camera over CAT-5.
INTENDED USE
Before installing the Vaddio WallVIEW CCU Camera System, please read the entire manual thoroughly. All
Vaddio camera systems are designed for use indoors. Outdoor operation is not recommended, has not been
tested, and could damage the camera and/or create a potentially unsafe operating condition. Use only the
Vaddio PowerRite power supply provided.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you install the Vaddio WallVIEW CCU system. For
reference, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the website.
www.vaddio.com free of charge.
IMPORTANT SAFEGUARDS
Read and understand all instructions before using. Do not operate any electrical device if it has been
dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To
reduce the risk of electric shock, do not immerse in any liquids and avoid extremely humid conditions.
Use only the approved power supplies provided with the system.
Use of any unauthorized power supply will void any and all
Do not use RJ-45 "pass-thru" connectors.
connectors for best results.
INFORMATION
For RS-422 control information, please see the full-length Manual for the PANASONIC AW-HE100 posted on
the Vaddio or Panasonic website. Vaddio has also prepared a number of TechNotes, specifications and
drawings designed to inform and educate integrators on the value and the specific uses of Vaddio products.
©2010 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and
pricing subject to change. Vaddio, WallVIEW, HSDS, Quick-Connect, EZIM, ProductionVIEW, PreVIEW, EZCamera and PowerRite are
registered trademarks of Vaddio. All other trademarks are property of their respective owners. Document Number 341-789 Rev. B
WITH
In addition, there are also
These documents can be downloaded from
Installation and User Guide
HSDS™

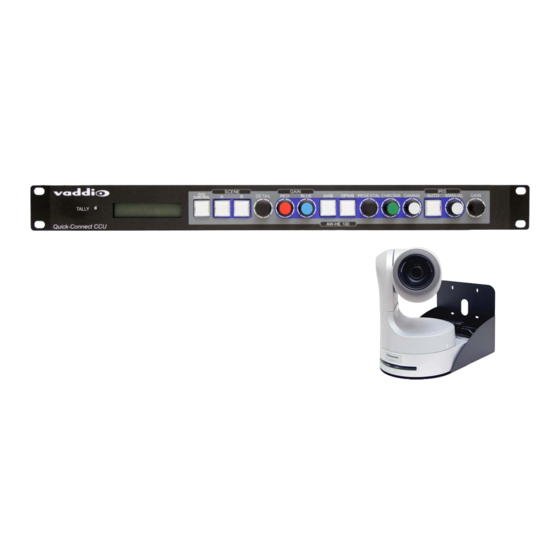

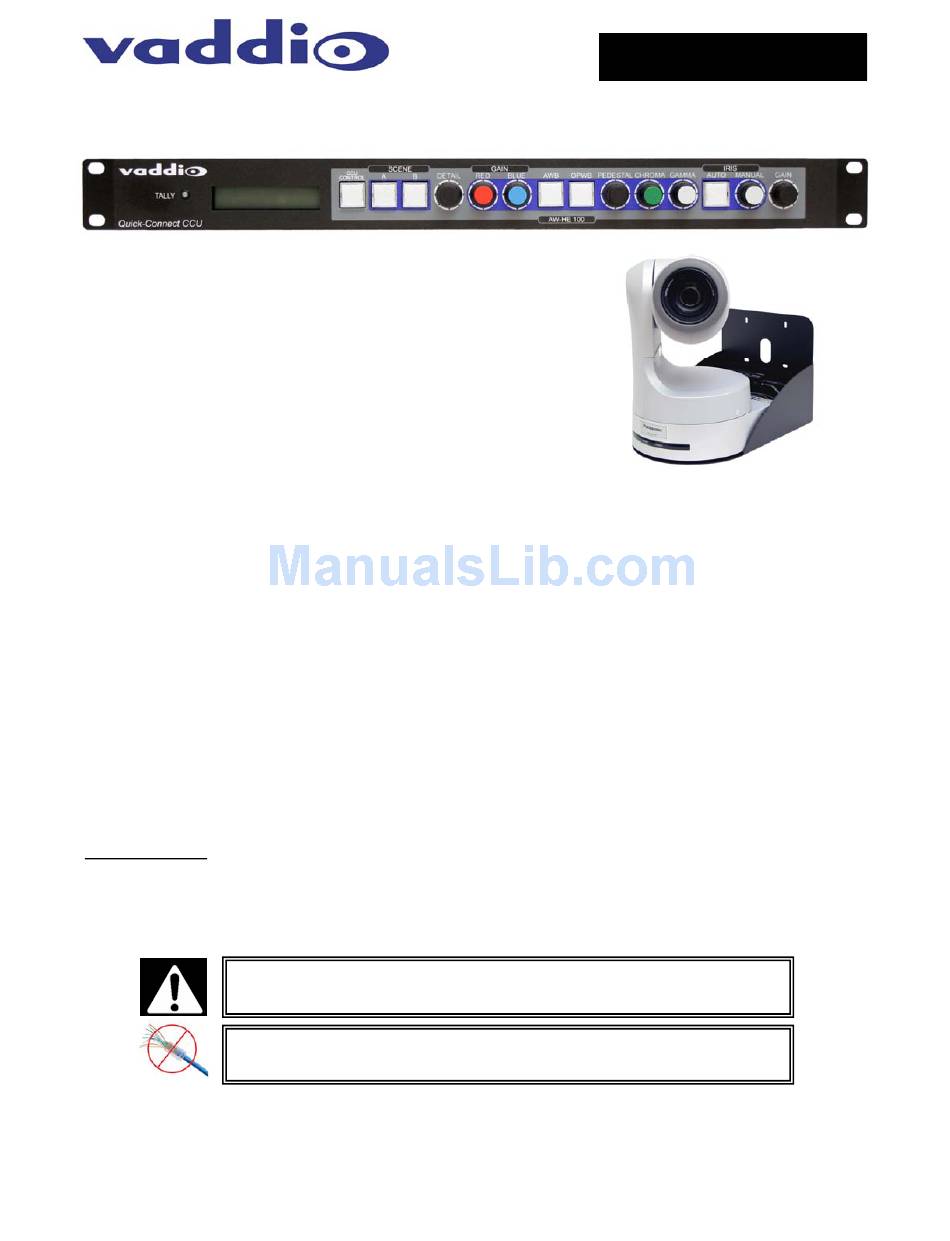

Figure 1: Quick-Connect CCU HE100
System with Camera (not included), Wall
Mount and EZIM CCU (behind camera)
Use standard RJ-45
