VADDIO CeilingVIEW 70 PTZ HideAway Manual

Camera and Electronic Products for Integrators
CeilingVIEW 70 PTZ HideAway
Installed PTZ Ceiling Camera with Recessed, Motorized Camera Lift System

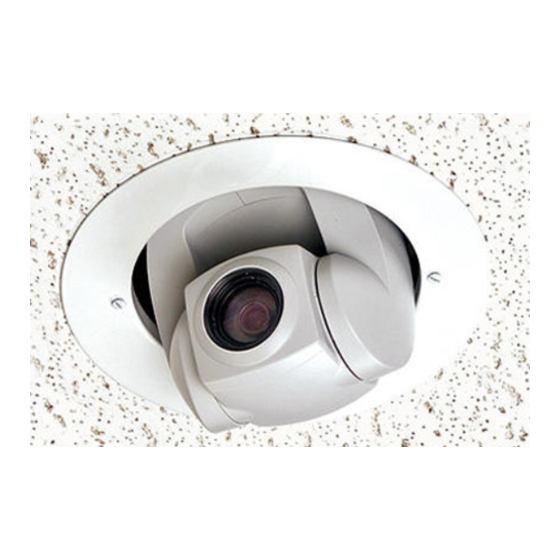

Figure 1: Vaddio
CeilingVIEW 70
PTZ HideAway
shown retracted
(left) and lowered
into operating
position (right)
INTRODUCTION
INTENDED USE
SAVE THESE
INSTRUCTIONS
ⓒ2004 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and
pricing are subject to change without notice. CeilingVIEW, WallVIEW ControlVIEW, EZCamera and PowerRite are registered
trademarks of Vaddio, Inc. All other trademarks are property of their respective owners. Form Number 341- 075 Rev. D
Vaddio's CeilingVIEW 70 PTZ HideAway camera system is
designed to provide system integrators with an easy to install,
recessed, in ceiling, motorized camera lift system (see Figure 1).
The system features a Sony
recessed, metal ceiling camera enclosure with ceiling tile support
and is equipped with Vaddio's EZCamera™ Cabling System which
allows the integrator to use Cat. 5 cabling to run power, video and
camera control. The camera lift has a motorized extension arm,
when retracted, conceals the camera. When the camera is
that
activated the extension arm lowers and reveals the camera.
Contact closure or voltage sensing can be used to activate the lift
system remotely or the camera IR remote control can be used to
activate the lift with the ON/OFF button.
interface is included to allow the camera to work with any other
VISCA compatible control device. The PowerRite™ power supply
regulates the right amount of power needed for the camera over the
Cat. 5 cabling.
Before operating the Vaddio CeilingVIEW 70 PTZ HideAway,
please read the entire manual thoroughly. The camera system was
designed, built and tested for use indoors with the provided power
supply. The use of a power supply other than the one provided or
outdoor operation has not been tested and could damage the
camera and/or create a potentially unsafe operating condition.
The information contained in this manual will help you install and
operate your Vaddio CeilingVIEW 70 PTZ HideAway.
instructions are misplaced, Vaddio keeps copies of Specifications,
Installation and User Guides and most pertinent product drawings
for the Vaddio product line on the website. These documents can
be downloaded from www.vaddio.com
Installation and User Guide
EVI-D70 PTZ Camera mounted into a
®
The VISCA control
free of charge.
If these
