Summary of Contents for Eneo HDD-2018PTZ1080
-
Page 1: Table Of Contents - Part

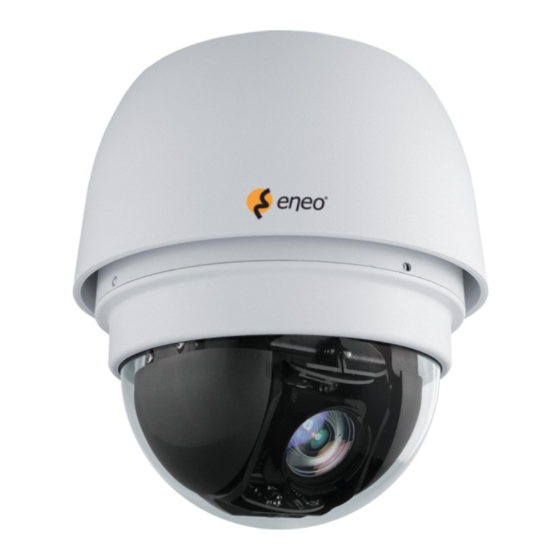

1/2.8” HD SDI Dome, PTZ, 18x, Day&Night HDD-2018PTZ1080... -
Page 2: Table Of Contents - Part
Installation Guide Contents Part 1 – Installation Guide ................3 Part 2 – User Manual .................. 36 Part 3 – OSD Manual ................... 62... -
Page 3: Table Of Contents - Part
Installation Guide Part 1 Installation Guide Version 1.2... -
Page 4: Table Of Contents
Installation Guide Table of Contents – Part 1 Introduction ........................... 5 Standard Package Contents ....................6 Camera Setups and Cable Connections ................7 Dome Camera Setups ....................7 3.1.1 Switch/Connector Definition ................. 8 3.1.2 Communication Switch Setting ..............8 3.1.3 ID Setup ....................... -
Page 5: Introduction
Installation Guide Introduction The SDI Speed Dome Camera is designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. -
Page 6: Standard Package Contents
Installation Guide Standard Package Contents Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Outdoor Model M3 Standard Screw (x1) M3 Security Screw (x1)* M5 Standard Screw (x1) M5 Security Screw (x1)*... -
Page 7: Camera Setups And Cable Connections
Installation Guide Camera Setups and Cable Connections Before installing or connecting the Dome Camera, please refer to this section and complete preparations for dome setups and various switch settings. There will be a PE cloth sheet covered inside the dome cover and a lens cap on the lens for shipping protection. -
Page 8: Switch/Connector Definition
Installation Guide 3.1.1 Switch/Connector Definition There are various connectors located on the Dome Camera’s back plate as shown in the figures below. Please refer to the diagrams and tables accompanied with for use of each switch/connector. Item Definition Remark ALARM I/O Dome Camera ID Setup DIP Switch SDI signal output SETTING... -
Page 9: Id Setup
Installation Guide RS-485 is the interface that communicates the Camera and its control device; for this reason, the RS-485 setup of the Camera and the control device must be the same. The RS-485 default setting is half-duplex (see the diagram follows). -
Page 10: Camera Control Protocol Setting
Installation Guide 3.1.4 Camera Control Protocol Setting Define the protocol you are going to use basing on the devices of your surveillance system. Generally, use one protocol even the devices are provided from different manufacturers. Please refer to the table below for all supported protocols with their matching switch numbers and baud rate and choose a protocol for your Camera. -
Page 11: Cables And Connections
Installation Guide Cables and Connections For operation, the Dome Camera requires power cable and RS485 as described below: 3.2.1 Power Connection Please refer to the illustrations below to connect power core through the supplied power adaptor. SW 1 AC24V_1 SW 2 SW 3 AC24V_2 3.2.2... -
Page 12: Rs-485 Connector Definition
Installation Guide 3.2.3 RS-485 Connector Definition Please refer to the illustrations below for RS485 connector definition before wiring. RS485 SW 1 Connector SW 2 SW 3 SW 4 SW 5... -
Page 13: Dome Camera Installation
Installation Guide Dome Camera Installation Basing on user’s installation environments, the Dome Camera can be installed on ceiling, on wall or on pole. In the following sections, various Dome Camera installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide the Dome Camera’s dimensions for your reference before installation. -
Page 14: Optional Accessories
Installation Guide Optional Accessories Dome Camera Accessories Transparent/Vandal Proof Transparent Cover (Standard) Vandal Proof Cover (Optional) Mounting Accessories Standard Pendent Mount (Art. No. 200825) White; 348×104×138.6 mm (13.7×4.1×5.5 inches); 1.5 kg (3.3 lbs); Diameter: 45 mm (1.8 inches). Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1, rubber washer-8 x1 and sponge x2. - Page 15 Installation Guide Compact Pendent Mount (Art. No. 200826) 184×104×127 mm (7.24×4.09×5 inches); 0.6 kg (1.2 lbs) Supplied with rubber washer-8 x1, pendent tube washer x1, spring washer-8 x1 and M8x12 screw x1. 76.2 4x 8.5 Dimensions: mm Straight Tube (Art. No. 200827) Iron, Height: 250 mm (9.8 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs), Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1, rubber washer-8 x1 and waterproof rubber x1.
- Page 16 Installation Guide Corner Plate Mini (Art. No. 200831) For mounting with Compact Pendent Mount. 200(L)×90(H)×117(D) mm (7.87×3.54×4.6 inches); Supplied with washer-8 x4, spring washer-8 x4, M8x16 screw x4 and M8 nut x4. 8x 8.5 90° Dimensions: mm Corner Standard Mounting Plate (Art. No. 200830) 204(L)×222(H)×117(D) mm (8×8.74×4.6 inches);...
- Page 17 Installation Guide Pole Thin Direct Mounting (Art. No. 200834) 232(H)×136(W)×50(D) mm (9.1×5.4×2 inches); Diameter: 112~130 mm (4.4~5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps x4, M8x16 screw x4, washer x4 and spring washer-8 x4. 8x 8.5 Dimensions: mm Corner Wide Box Mounting (Art.
- Page 18 Installation Guide Pole Wide Box Mounting (Art. No. 200835) 270(H)×170(W)×155(D) mm (10.6×6.7×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8x16 screw x4, washer-8 x4, spring washer-8 x4 and stainless steel straps x4. Power Box can be set inside the wide box. 8x 8.5 Dimensions: mm Wall Box Mounting (Art.
- Page 19 Installation Guide Stainless Steel Straps For fixing Pole Direct Mounting / Pole Box on the pole. Length: 650mm (25.6 inches); Width: 12.7mm; Weight: 50g (0.1 lb) All photos of the accessories are subject to change without notice.
-
Page 20: Ceiling Mount With Straight Tube
Installation Guide Ceiling Mount with Straight Tube The Straight Tube is available in different length: 25cm and 50cm. Package Contents: M8x12 Screw x1 Spring Washer-8 x1 Pendent Tube Washer x1 Rubber Washer-8 x1 Waterproof Rubber x1 Items Needed: Dome Camera Power Cable Ethernet Cable Straight Tube... - Page 21 Installation Guide Mount the Dome Camera to the Mounting Kit. (Ensure Dome Camera fixed completely, and the thread holes on the Lock Screw Plate and Mounting Kit are aligned). Afterwards, screw the supplied M5 standard screw / security screw, as shown in the picture.
-
Page 22: Wall Mount
Installation Guide Wall Mount The Dome Camera can be mounted on the wall with Compact Pendent Mount, Standard Pendent Mount and Wall Box. Please follow the installation instructions below for mounting the Dome Camera via different ways. 4.4.1 Compact Pendent Mount Package Contents: Rubber Washer-8 x1 Pendent Tube Washer x1... - Page 23 Installation Guide 2) Fix the Compact Pendent Mount on the wall with proper screws and screw anchors. 3) Attach the Waterproof Rubber to the Compact Pendent Mount. 4) Run the cable(s) through the Compact Pendent Mount. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount.
-
Page 24: Wall Box Mounting
Installation Guide 4.4.2 Standard Pendent Mount Package Contents: M8x12 Screw x1 Spring Washer-8 x1 Pendent Tube Washer x1 Rubber Washer-8 x1 Sponge x2 Items Needed: Dome Camera Power Cable Ethernet Cable Standard Pendent Mount and equipped items (optional accessory) Mounting Kit Waterproof Rubber Screws and Screw Anchors for fixing the Standard Pendent Mount onto the ceiling... - Page 25 Installation Guide 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Mounting Kit with the supplied screw and washers.
- Page 26 Installation Guide 4.4.3 Wall Box Mounting Package Contents: M8x16 Screw x4 Washer-8 x4 Spring Washer-8 x4 Items Needed: Dome Camera Power Cable Ethernet Cable Standard/ Compact Pendent Mount and equipped items (optional accessory) Wall Box Mounting (optional accessory) Mounting Kit Waterproof Rubber Screws and Screw Anchors for fixing the Wall Box Mounting onto the ceiling Tools Needed:...
- Page 27 Installation Guide 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Mounting Kit with the supplied screw and washers.
-
Page 28: Corner Mount
Installation Guide Corner Mount 4.5.1 Corner Standard Mounting Plate/Corner Plate Mini Package Contents: Washer-8 x4 Spring Washer-8 ×4 M8x16 Screw x4 M8 Nut x4 Items Needed: Dome Camera Power Cable Ethernet Cable Standard/Compact Pendent Mount equipped items (optional accessory) Corner Standard Mounting Plate/Corner Plate Mini (optional accessory) Mounting Kit Waterproof Rubber Screws and Screw Anchors for fixing the Corner Mounting Plate... - Page 29 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. Refer to the illustrations in section 4.4.2 Compact Pendent Mount > Step 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers.
-
Page 30: Corner Thin/Wide Box Mounting
Installation Guide 4.5.2 Corner Thin/Wide Box Mounting Package Contents: M8x16 Screw x4 Washer-8 x4 Spring Washer-8 x4 Items Needed: Dome Camera Power Cable Ethernet Cable Standard/ Compact Pendent Mount and equipped items (optional accessory) Corner Thin/Wide Box (optional accessory) Mounting Kit (optional accessory) Waterproof Rubber Screws and Screw Anchors for fixing the Corner Thin/Wide Box Tools Needed:... - Page 31 Installation Guide 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
-
Page 32: Pole Mount
Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting Package Contents: Stainless Steel Straps x4 M8x16 Screw x4 Washer x4 Spring Washer-8 x4 Items Needed: Dome Camera Power Cable Ethernet Cabl Standard/Compact Pendent Mount equipped items (optional accessory) Pole Thin/Wide Direct Mounting (optional accessory) Mounting Kit Waterproof Rubber Stainless Steel Straps for fixing the Pole Thin/Wide Direct Mounting... - Page 33 Installation Guide NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. Refer to the illustrations in section 4.4.2 Compact Pendent Mount > Step 4) Attach the Waterproof Rubber to the Standard/ Compact Pendent Mount. 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers.
-
Page 34: Pole Thin/Wide Box Mounting
Installation Guide 4.6.2 Pole Thin/Wide Box Mounting Package Contents: M8x16 Screw x4 Washer-8 x4 Spring Washer x4, Stainless Steel Straps x4 Items Needed: Dome Camera Power Cable Ethernet Cable Standard/Compact Pendent Mount equipped items (optional accessory) Pole Thin/Wide Box Mounting (optional accessory) Mounting Kit Waterproof Rubber Stainless Steel Straps for fixing the Pole Thin/Wide Box Mounting (optional... - Page 35 Installation Guide 4) Attach the Waterproof Rubber to the Standard/Compact Pendent Mount. 5) Thread the cable(s) through the Mounting Kit and join the Mounting Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera.
- Page 36 Part 2 User Manual Version 1.2...
- Page 37 User Manual Table of Contents – Part 2 Overview ..........................38 Features ........................38 Package Contents ..................... 39 Dimensions ........................ 40 Camera Cabling ........................41 Product Application ....................41 Switch/Connector Definition ..................42 Communication Switch Setting .................. 43 ID Setting ........................44 Camera Control Protocol Setting ................
-
Page 38: Overview
User Manual Overview HD-CCTV standard offers a new opportunity for traditional CCTV surveillance industry. It makes CCTV Camera transmit high definition image through coaxial cable. Combing SDI standard with high quality SONY CMOS sensor, the SDI High Speed Camera delivers up to 20x optical zoom ratio to capture clear image in the distance. -
Page 39: Package Contents
User Manual Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Outdoor Dome Camera Package M3 Standard Screw (x1) M3 Security Screw (x1)* Dome Camera with M5 Standard Screw (x1) -
Page 40: Dimensions
User Manual Dimensions 44.5 Dimensions: mm... -
Page 41: Camera Cabling
User Manual Camera Cabling Please follow the instructions below to complete SDI High Speed Dome Camera cable connections. Product Application Connect the SDI High Speed Dome Camera to other devices as shown in the diagram to complete a video surveillance solution. -
Page 42: Switch/Connector Definition
User Manual Switch/Connector Definition Configuring the Camera’s ID and communication protocol is required before connecting the Dome Camera to other devices. The switches used for configuring these settings are located on the camera’s rear plate. Please refer to the diagram and table accompanied with for use of each switch/connector. -
Page 43: Communication Switch Setting
User Manual Communication Switch Setting The Camera’s communication switches are specified in the table below. SW 1 Communication Switch SW 2 RS-485 Setting SW 3 SW 4 SW 5 Reserved SW 6 Reserved RS-485 is the interface that communicates the Camera and its control device; for this reason, the RS-485 setup of the Camera and the control device must be the same. -
Page 44: Id Setting
User Manual ID Setting Please assign an ID number to a Camera if there is more than one Camera in the same network. The camera’s ID can be setup using the 10-bit ID Dip Switch, which is located on the Camera’s back plate. If the Camera’s ID number is 6, for instance, the ID switch SW 2 and SW 3 should be set to “ON”... -
Page 45: Camera Control Protocol Setting
User Manual Camera Control Protocol Setting Define the protocol you are going to use basing on the devices of your surveillance system. Generally, use one protocol even the devices are provided from different manufacturers. Please refer to the table below for all supported protocols with their matching switch numbers and baud rate and choose a protocol for your Camera. -
Page 46: Power Connector
User Manual For switch configuration details, please refer to Appendix B: Switch Settings Index Table. Power Connector Please refer to the illustrations below for power connector definition before wiring. SW 1 AC24V_1 SW 2 SW 3 AC24V_2 Apply Alarm I/O The Camera supports 4 digital alarm inputs and 2 digital alarm outputs. -
Page 47: Rs-485 Connector Definition
User Manual RS-485 Connector Definition Please refer to the illustrations below for RS485 connector definition before wiring. RS485 SW 1 Connector SW 2 SW 3 SW 4 SW 5... -
Page 48: Operation And Configuration
User Manual Operation and Configuration Display Format The information shown on the screen is described in terms of OSD display, position and function description in the table below. Function OSD Display Description Motion MOTION Alarm Detect Message Alarm ALARM 1 Alarm Message Auto Focus Mode Focus... -
Page 49: Setup Id Display
User Manual Setup ID Display Press the direction key down to turn the MAIN MENU page from 1 to 2, and then the menu item <ID DISPLAY> will be shown on the top. Users are allowed to choose whether the Camera’s ID will be displayed on screen for identifying the domes. -
Page 50: Setup Time
User Manual STEP 4: Press the <CAMERA MENU> key (ENTER) on the keyboard to go into the editing page. TITLE SETTING: 01 EXIT SAVE DELETE TITLE: STEP 5: Choose a character with direction keys and then press the <CAMERA MENU> key (ENTER) to input. For example: <A> <CAMERA MENU>, <B>... -
Page 51: Setup Schedule
User Manual Setup Schedule The schedule function enables users to program a preset point or function (Sequence/Auto-pan/Cruise) automatically to perform in a specific period of time. SWITCH Select <ON> to enable or <OFF> to disable the schedule function. POINT Users are allowed to arrange 32 sets of schedule point, i.e. each set of schedule point can be assigned one kind of schedule modes. -
Page 52: Appendix A: Technical Specifications
User Manual Appendix A: Technical Specifications Type HDD-2018PTZ1080 Art. No. 202149 Series eneo HD-SDI System day&night Sensor size 1/2,8" Imager CMOS, Sony Progressive scan Resolution 1920x1080 (16:9), 1280x720 (16:9) Frame rate 1080 at 25/30p, 720 at 50/60p Signal-to-noise ratio -50 dB Sensitivity (at 50% video signal) 0,1Lux, (colour);... - Page 53 Temperature range (operation) -40°C ~ +50°C Vandalism resistant Protection rating IP66 Dimensions see drawing Parts supplied manual, screw set, plug set, allen key Certificates CE, IK10 Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www.eneo-security.com...
-
Page 54: Appendix B: Switch Settings Index Table
User Manual Appendix B: Switch Settings Index Table Please refer to the switch settings below for Mini Speed Dome Camera’s ID and protocol setup. Camera ID Setup SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10... - Page 55 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
- Page 56 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
- Page 57 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
- Page 58 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
- Page 59 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
- Page 60 User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10...
-
Page 61: Protocol Setup
User Manual SWITCH SETTING ID No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 SW-9 SW-10 Protocol Setup SWITCH SETTING Protocol No. SW-1 SW-2 SW-3 SW-4 SW-5 SW-6... - Page 62 Part 3 OSD Menu Version 1.2...
- Page 63 OSD Manual Table of Contents – Part 3 OSD Menu Tree ........................64 Configuration Menu ......................67 VIDEO TYPE ......................68 DEFAULT CAMERA ....................68 BACKLIGHT ......................68 FOCUS ........................68 AE MODE ........................69 WBC MODE ......................70 SETUP MENU 1 ......................71 SETUP MENU 2 ......................
-
Page 64: Osd Menu Tree
OSD Manual OSD Menu Tree The OSD setup menu structure is listed separately in the following section. Item Layer 1 Layer 2 Layer 3 Default VIDEO TYPE PAL/ NTSC VIDEO TYPE RESOLUTION 1920 x 1080, 1280 x 720 SAVE & RESET DEFAULT CAMERA <ON>, <OFF>... - Page 65 OSD Manual Item Layer 1 Layer 2 Layer 3 Default EXIT SPEED BY ZOOM <ON>, <OFF> AUTO CALI. <ON>, <OFF> PASSWORD <ON>, <OFF> OSD AUTO CLOSE <OFF>, <5> ~ <30> SEC. SYSTEM RESET SYSTEM RESET DEFAULT SYSTEM EXIT EXIT ID DISPLAY <ON>, <OFF>...
- Page 66 OSD Manual Item Layer 1 Layer 2 Layer 3 Default PRIVACY SWITCH <ON>, <OFF> TRANSPARENCY <ON>, <OFF> <BLACK>, <WHITE>, <RED>, <GREEN>, <BLUE>, COLOR <CYAN>, <YELLOW>, <MAGENTA> H CENTER: L/R PRIVACY MASK V CENTER: D/U SET MASK <01> ~ <16> H SIZE <000> ~ <080> V SIZE <000>...
-
Page 67: Configuration Menu
OSD Manual Configuration Menu The detailed functions and parameter settings of your Speed Dome can be set through the OSD (On Screen Display) menu with a control device, such as a control keyboard. The items in each model’s OSD menu are described in the following sections. -
Page 68: Video Type
OSD Manual VIDEO TYPE Select the video format (NTSC/PAL) and resolution (1920x1080/1280x720) that matches the present TV system. To select resolution as <1920x1081>, the frame rate will be 30fps for NTSC system, and 25 fps for PAL system. As for <1280x720>, the frame rate will be 60 fps for NTSC system and 50 fps for PAL system. -
Page 69: Ae Mode
OSD Manual Zoom Trigger Mode When users press the TELE or the WIDE keys on a control keyboard or other control devices to change the zoom, the Dome Camera will automatically adjust its focus after a period of time (the factory default value is about five seconds) until the commands of TELE/WIDE is terminated. -
Page 70: Wbc Mode
OSD Manual SHUTTER With this option, Shutter speed takes main control of exposure. Bright Value, Iris and AGC will function automatically in cooperation with shutter speed to achieve consistent exposure output. The range of shutter speed is from 1/10000 to 1/30 (PAL: 1/10000 to 1/25). IRIS With this option, the IRIS function adjusts exposure in higher property. -
Page 71: Setup Menu 1
OSD Manual AUTO In this mode, white balance works within its color temperature range. This mode computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 2700K to 7500K. -
Page 72: Setup Menu 2
OSD Manual With Digital Noise Reduction (D.N.R.), the processor analyzes pixel by pixel and frame by frame to eliminate environmental noise signal so that the highest quality image can be produced even in low light conditions. IMAGE INVERSE Users can select <ON> to make the displayed image inversed vertically and horizontally (see the figures shown below). - Page 73 OSD Manual FLIP Users can track an object continuously when it passes through under the Dome Camera with setting Flip to M.E. (mechanical flip). M.E. (Mechanical Flip) M.E. is a standard mechanical operation. As the Dome Camera tilts to the maximum angle, it will pan 180°, and then continue tilting to keep tracking objects.
- Page 74 OSD Manual PT POSITION PT Position can display the Pan/Tilt position of Dome Camera on the screen. Refer to User Manual (up to page 36) for the item displayed location. PT DISPLAY Turn the item to <ON> to display the pan/tilt position on the screen. The display format will be “XX YYY/ YY”.
- Page 75 OSD Manual PASSWORD The administrator can activate OSD Password function for security concerns. Once the function is turned on, users are required to enter the password every time when accessing to the OSD menu. The password setting procedure is like the following: 8) STEP 1: Choose a number with direction keys and then press the <CAMERA MENU>...
-
Page 76: Id Display
OSD Manual SYSTEM RESET Select this function for system reboot. Press <ENTER> and system reboot will start up. DEFAULT SYSTEM This function allows users to restore the camera to its factory default state. Press <ENTER> and reset will start up. EXIT Exit <SETUP MENU 2>... -
Page 77: Title Setting
OSD Manual 2.11 TITLE SETTING Up to 16 zone titles can be set with maximum 20 characters for each title. Follow the steps to set a camera title. STEP 1: Operate the dome to a view area where you want to set a title for it. STEP 2: Turn on the OSD and go to the <MAIN PAGE 2>... -
Page 78: Preset
OSD Manual 2.12 PRESET PRESET SET Totally 256 preset points can be set. Follow the steps below when in the preset setting menu. 12) STEP 1: Press the right/left key on the keyboard to select a number (001 represents preset point 1, 002 represents preset point 2, etc.) 13) STEP 2: Press the <CAMERA MENU>... - Page 79 OSD Manual SEQUENCE LINE There are eight sets of sequence lines built in the Dome Camera. Using LEFT/RIGHT direction keys to select a line first and then set its sequence points. SEQUENCE POINT Up to 64 points can be setup for each Sequence line. The Sequence Points represent order of the preset points that the Dome Camera will automatically run.
-
Page 80: Autopan
OSD Manual RUN SEQUENCE Users can command the Dome Camera to run the selected Sequence line manually. Press the <CAMERA MENU> key (ENTER) to execute a sequence line. EXIT Exit <SEQUENCE> menu and go back to the <MAIN PAGE 2> to carry on other function setups. - Page 81 OSD Manual END POINT Users are able to set the end point after the start point is defined. Pan the Dome Camera to another position and press <ENTER> to save the position as the end point. DIRECTION The item is for setting the Auto-Pan direction of the Dome Camera. The dome will start to pan clockwise from the start point to the end point if your selection is <RIGHT>, and then return to the start point.
-
Page 82: Cruise
OSD Manual 2.15 CRUISE CRUISE is a route formed with manual operation, through adjusting pan, tilt position and zoom parameters, which can be stored and recalled to execute repeatedly. CRUISE LINE Up to eight sets of Cruise routes can be created for one camera. Using LEFT/RIGHT direction keys to select a line first and then follow the steps below to start recording the Cruise route. -
Page 83: Home Setting
OSD Manual 2.16 HOME SETTING Users are able to set an operation mode to ensure constant monitoring. If the Dome Camera idles for a period of time, the selected function will be activated automatically; this is the Home function. The Home function allows constant and accurate monitoring to avoid the Dome Camera idling or missing events. -
Page 84: Ir Function (Removable Ir Cut Filter)
OSD Manual CRUISE LINE Select a cruise line that the Dome Camera should execute after the Return Time function is activated. The cruise line(s) should be defined prior either in the <CRUISE> setup menu or through the keyboard. RETURN TIME The dome starts to count down Return Time when the dome idles, and then execute the <SELECT MODE>... -
Page 85: Alarm Setting
OSD Manual EXIT & SAVE Exit <AUTO> mode and go back to the <MAIN PAGE 2> to carry on other function setups. MANUAL IR MANUAL ON Select the item to remove the IR cut filter; the camera will be in B/W (Night) mode. - Page 86 OSD Manual ALARM TYPE There are two kinds of alarm types: Normal Open and Normal Close, which are illustrated as below. Select an alarm type that corresponds with the alarm application. Alarm In Normal Open Alarm In Normal Close ALARM ACTION The alarm actions include Preset, Sequence, Autopan and Cruise functions.
- Page 87 OSD Manual AUTOPAN LINE Select an auto-pan line that the Dome Camera should execute when an alarm pin is triggered. The auto-pan line(s) should be defined prior either in the <AUTOPAN> setup menu or through the keyboard. CRUISE LINE Select a cruise line that the Dome Camera should execute when an alarm pin is triggered.
-
Page 88: Wdr Function
OSD Manual 2.19 WDR FUNCTION The Wide Dynamic Range (WDR) function is especially effective in solving indoor and outdoor contrast issues to enhance better image quality and video display. It enables the dome to catch detailed data from the dark part (Indoor) without any saturation from the bright part (Outdoor). - Page 89 OSD Manual SET MASK Use the control device to move the Dome Camera to the area where you want to set a mask. Press <ENTER> to enter the <SET MASK> menu. The Dome Camera will memorize the present position as a privacy mask position.
-
Page 90: Time Setting
OSD Manual 2.21 TIME SETTING The time setting function is used to set the TIME related parameters of the integrated Speed Dome. Each item in the menu is listed as follows. TIME DISPLAY Select <ON> to display time information on the screen or <OFF> not to display. -
Page 91: Exit Osd
