Eneo GLC-1601 Installation And Operating Manual

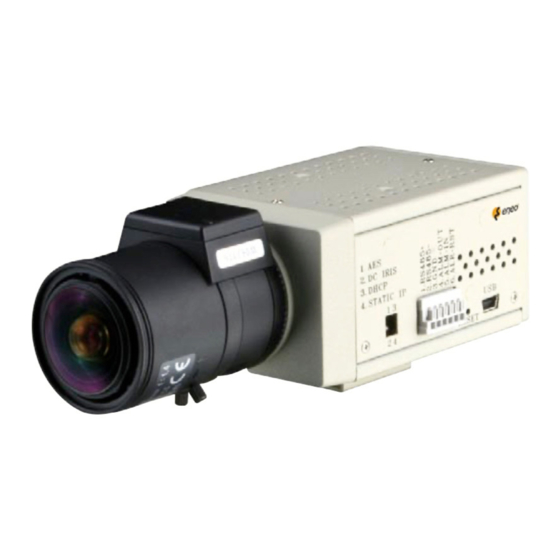

1/3” day/night network colour camera, integr. web server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operating Manual
1/3" Day/Night Network Colour Camera, integr. Web Server
GLC-1601


Advertisement

Table of Contents
loading

Related Manuals for Eneo GLC-1601

Summary of Contents for Eneo GLC-1601

  • Page 1 Installation and Operating Manual 1/3” Day/Night Network Colour Camera, integr. Web Server GLC-1601...

  • Page 2: Table Of Contents

    5. Cable Connections ............................4 5. Configure your IP camera Network Settings ......................6 5.3 TCP/IP Communication Software ........................7 5.4 TCP/IP Installation ............................8 5.5 TCP/IP Configuration Setting ..........................9 5.6 Connection Testing ............................0 Operating Instructions for Image Software and Network ................... 6. Microsoft Internet Explorer..........................3 6. The IP camera eneo GL-Manager ........................56 Advanced Operation ............................78 Specifications ..............................8 Function of Client PC ............................83 0. Dimensional Drawings ............................83 APPENDIX  - SCAN IP ..............................84 APPENDIX  - IP Camera UPnP ..........................87 APPENDIX 3 - The ARP Function ..........................98 APPENDIX 4 - Register as a DDNS Member .......................99 APPENDIX 5 - MPEG4 Bit Rate Lookup Table of IP Camera ..................03...

  • Page 3: Safety Instructions

    1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • P rotect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. Operate the camera only at a temperature range of +5°C to +40°C and at a humidity of max. 80%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • Never point the camera towards the sun with the lens open as this may prevent the sensor functioning. • Do not block ventilation openings. • The installer is responsible for maintaining the protection class. • Only use rust-proof screws should be used to mount the housing and camera outside. • Do not place anything on top of the unit that might spill or fall into it. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Maintenance and repair have to be carried out only by authorized service centers. Before opening the cover disconnect the unit from mains input. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface. In case the dirt is hard to remove, use a mild detergent and wipe gently. NOTE: This is a class A digital device. This digital device can cause harmful interference in a residential area;...

  • Page 4: Product Features

    2. Product Features 2.1 Product Introduction This user-friendly device combines cutting-edge sophistication with practical reliability and convenience, high perfor- mance with smooth remote communication. Just plug in the network cable ! You’ll get live streaming Video & Audio anytime any place ! You’ll have security you can rely on ! The especially high resolution has 50 TV lines, a built-in web server and a Network interface to connect you with the Internet securely and fast. Other special features include the masking of personal private images with flexible mask-area positioning and size, the self-downloading automatic video codec and other components, and the whole unit is very easy to set up. You can access the network to get smooth images through the real-time and synchronized audio / visual stream provided by the device, because it supports two compression modes, the MJPEG and the MPEG4 - you can change from one to the other as you wish. The MPEG4 file format is a very small size file, so it can save more images over a longer time and can be set extremely fast. The device also has a built-in website server providing many Internet functions and protocols, including the MDIX protocol which recognizes both the normal and the crossover cables, either of which can connect up with a IP camera. We hope this device makes it easier for you to get your IP address information. This unit supports the USB interface which helps you to very easily get an IP address to open the IE browser: Just type in your IP address to the browser and you can access your IP camera. The device can hopefully provide the advanced motion detection function to improve your network surveillance with both the powerful and enhanced multi-zone and multi-sensitivity modes of detection. We believe this unit is the right answer to all your network surveillance problems. Try it and you’ll see. NOTE: Our camera already has a built-in refocus for its Day and Night function. So users don’t need to have an IR lens in this camera, they can just use a normal lens.

  • Page 5: Description Of The Front/Rear View

    3. Description of the Front/Rear View 3.1 Front Panel and Rear Panel Front Panel Rear Panel 1. Microphone The IP camera has an additional audio function. The device has a microphone built into its front panel which records sound. 2. Plug Inlet A VDC inlet that connects to an external power supply. 3. ETHERNET (PoE) This is a standard RJ-45 connector for 0/00 Mbps Ethernet networks. PoE (Power over Ethernet) function: Provides power to the device via the same cable as used for the network connection. 4 AUDIO OUT Connector: The connector provides the unit’s audio signal to a speaker. 5. VIDEO OUT Connector The connector provides the unit’s composite video signals to a monitor. 6 POWER indicator Indicates the power status of the unit. The green light indicates the unit is activating.

  • Page 6: Flank Panel

    3.2 Flank Panel Right Flank Panel Left Flank Panel Lens Mount: This IP camera is used with either C or CS mount lens. DIP Switch: 1. AES: Auto electric shutter 2. DC IRIS: Use auto iris (DC drive) 3. DHCP: Turn On / Turn Off use DHCP protocol. If the switch points upwards, the device can change the setup of network function (enable/disable) via the network. 4. STATIC IP: If the switch points down, the device can’t obtain an IP address from the DHCP server. This option is needed to configure the network communication settings. ALARM I/O: This is a 6-PIN connector including the ALARM IN/OUT, ALARM RESET and GROUND items for connecting with external devices. • RS-485 pin: D+ • RS-485 pin: D- • GND: Ground Contact • ALARM IN (INPUT): This is an alarm input which can be programmed in the menu system to Normally Open or Normally Closed. ( 0V(Active) • ALARM OUT (OUTPUT): This is an alarm-output trigger. Connect this to external devices such as buzzers or...

  • Page 7: The Usb Function

    3.3 The USB Function By connecting the IP camera with a PC via the USB connector, the IP camera can provide two different functions. . Insert an SD card: As a card reader Insert an SD card into the IP camera, then connect to the PC. You might transfer files between the SD card and the PC. Once you’ve connected your IP camera to your computer, the Windows system will detect the connection and ask you what you want to do with your SD card. In another words, if the user connects the IP camera with an SD card and the PC via the USB connector, the IP camera can be used as a normal card reader. . Remove an SD card: As a configuring tool Before using the USB configuration setting page, please remember to remove the SD card or your PC will read the SD card and won’t show this window. Network Setting PPPoE Setting DHCP ON DHCP OFF WARNING: After changing the settings, please click the „Apply” button. All of the options will be effective after removing the USB connector.

  • Page 8: Poe (Power Over Ethernet)

    3.4 PoE (Power over Ethernet) These technologies will enable the development of new networked appliances, by providing power as well as data over existing Ethernet cables. The Summary Comparison of PoE Standards (Table ) is listed as follows. Table 1. Summary Comparison of PoE Standards SOURCE LOAD Ethernet RJ-45 connector pin number * STANDARD REMARKS Source DC Load Load Voltage Connec- Voltage IEEE 80.3af 48VDC, RX, RX, TX, TX, Industry Standard spare spare spare spare (embedded) protected for embedded PoE using data pairs...

  • Page 9: Installation

    4. Installation Please follow the instructions and the diagram below to set up the system. NOTE: The IP camera is linked by its Video Out connection via a BNC connector to a monitor’s Video In connection. If this connection is there, you can see some information on the monitor screen, such as the IP camera factory default Static IP address (192.168.1.168).

  • Page 10: Connecting With A Dvr

    4.2 Connecting with a DVR CONNECT TO VIDEO OUT BNC CONNECTOR CONNECT TO DVR VIDEO IN 4.3 Connecting with a Multiplexer IP camera  TO LAN Camera VIDEO OUT BNC CONNECTOR IP camera  IP camera 6...

  • Page 11: Updating System Software

    4.4 Updating System Software If the system software of the IP camera needs to be upgraded, please take the following steps to safely process it. Important: Before carrying out the following procedures, please ensure the SD card is working and the file of system firmware is intact. . Format an SD card using the FAT6 format if it is unformatted; there are no limitations to an SD card’s capacity. . Create a directory named LANCAM in the SD card if it does not exist. 3. Copy the file of UPDATE.BIN to the LANCAM-directory. 4. If the IP camera is running, please power it off first. 5. Insert the SD CARD into the IP camera. 6. Remove the Ethernet cable from the RJ-45 port and then power on the IP camera.

  • Page 12: Ip Camera Sd Card Troubleshooting

    4.5 IP camera SD Card Troubleshooting . Check if the SD card position is correct or not. Please refer to the manual for the related information. . After powering the IP camera on, correctly insert the SD card, and a little icon of „SD” will show up in the upper-right corner of the monitor screen. If not, it means the device detection has failed. Please contact your technical support and ignore the following steps. 3. If no cross sign appears beside the „SD” icon, please go on to the next step. If a cross sign appears, please check the following: a. Is it really an SD „Memory” Card? b. Is this SD card formatted in the FAT6 format? c. Connect the SD card with a PC and test to see whether the PC can read the data or not. d. Does this SD card still have the capacity for storing data? e. Is the SD card set to write? If all the answers are „yes” but the cross sign still persists, please contact your technical support and ignore the following steps. 4. Please make sure the function of „SD CARD ENABLE” is activated in the ALARM and SCHEDULE pages if no cross sign appears beside the „SD” icon on the screen. 5. After recording, read the data on the web page of „sdget.htm”. If the data cannot be read through the network, please read it instead in a PC, check the data stored in the „LANCAM” directory and contact your technical support regardless of whether there is data or not. WARNING: Performing this troubleshooting process may need a monitor, a PC, a card reader and some cables.

  • Page 13: Adjustment Of Lenses

    4.6. Adjustment of Lenses C mount lens CS mount lens Adjustment of flange This adjustment (distance between lens casing and sensor surface) is required if a sharp focus for fixed focus definition cannot be obtained with the lens focussing, or in order to adjust the ∞ position lenses To obtain a sharp definition, point the camera at an object which is at least 000 times further away from the front of the lens than the focal length. (If the focal length is 7.5mm, the object must be at least 5m distant from the camera). Open the aperture fully and set the focus to ∞ (infinite). If the lens has automatic exposure control, select a dark object, or better use an ND filter (64-x) to ensure that the aperture is fully open. Undo set screw M. Turn the lens with the CS mount connection until the definition is sharp. When finished, retighten screw M. Adjustment of flange To obtain a sharp definition, point the camera at an object which is at least 5 times the focus for variable minimum lens distance (MOD) of the lens. (If this is m, the object must be at least 5m focus lenses distant from the camera). Open the iris fully and set the lens to the maximum tele position and focus with the focus ring. If the lens has automatic iris control, select a dark object (or use an ND filter, 64-x) to ensure that the iris is fully open. Set the lens to the maximum wide-angle position. Undo set screw M and turn the C/CS ring on the camera until an optimal sharpness is reached. Repeat the process for checking purposes, if necessary.

  • Page 14: Network Configuration

    Explanation of terms for iris setting AGC (automatic gain This starts tooperate when the light intensity is insufficient to deliver a full video signal control) (Vp-p). The greater the gain, the greater the signal noise in the picture. It is generally activated between 0.8 and .0Vp-p. White clip Signal limitation at high image amplitudes. The white clip value generally lies between . and . Vp-p. AES (automatic This automatically controls the shutter times, it starts when the light intensity becomes shutter control) stronger and the signal would otherwise be limited/over-regulated by the white clip feature. Automatic shutter control is mainly applied for manual lenses. If a camera is operated with controlled lenses, regardless of whether DC or AI, the AES must be switched off. Problems arise if this is not done because both control systems try to steer the volume of light for the camera. As the AES generally reacts faster, the iris remains fully opened and the shutter resumes the control work, which produces major drawbacks. As the iris is open, the depth of focus is very low. When shutter times are short, this can cause a smear effect (bright, vertical stripes in light parts of the picture). Iris adjustment The working point of the iris should always be above the AGC start and below that of the white clip. This range is very small with some cameras, making it difficult to adjust the lens. It is therefore advisable to switch off the AGC (if possible) when adjusting the iris. Once the lens has been focussed, the AGC must be switched back on (only for cameras which allow the AGC to be switched off). In the case of DC lenses, the working point of the iris is adjusted at the camera’s level potentiometer (the AI amplifier is built into the camera). In the case of AI lenses, the level potentiometer is located on the lens (the AI amplifier is built into the lens).

  • Page 15: Connect To A Computer

    5.1.1 Connect to a Computer Use a straight LAN cable to connect directly to a computer. CROSSOVER CABLE TO PC LAN CARD CROSSOVER CABLE PIN CONFIGURATION 5.1.2 Connect to a LAN Hub (INTRANET) The RJ-45 PIN configuration for connecting with a LAN Hub is shown below. TO PC NETWORK CARD TO NETWORK...

  • Page 16: Configure Your Ip Camera Network Settings

    5.2 Configure your IP camera Network Settings Upon connecting with the network hardware, you need to activate the network function and configure the proper network settings of the IP camera. 5.2.1 Enable DHCP Function This function can only work if the LAN, which the unit is connected to, has a DHCP server. If the DHCP server is working, please move the dip switch points up to 3 on the flank panel; now the IP camera will obtain an IP address automatically from the DHCP server. In that case, please skip section 5.. (Set IP address) and follow section 5.3 (TCP/IP Communication Software). 5.2.2 Set IP Address You need to set an IP address for the unit if the LAN unit isn’t connected to a DHCP server. Otherwise, please follow the instructions given below: Set the IP, SUBNET MASK and GATEWAY. The following is a sample setting. IP: 9.68..X MASK: 55.55.55.0 GATEWAY: 0.0.0. NOTE: When only one unit of the IP camera is connected to a computer or LAN, you can freely assign an IP address for the IP camera.

  • Page 17: Tcp/Ip Communication Software

    5.3 TCP/IP Communication Software Follow the instructions below to install the TCP/IP communication program into your computer. Click the Start menu from your computer, and point to the Settings/Control panel. Double click the Network icon to enter the windows.

  • Page 18: Tcp/Ip Installation

    Click the Configuration tag, and check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process section 5.5. If it is not included, please follow section 5.4 to install the TCP/IP. 5.4 TCP/IP Installation During the installation, you will be requested to insert the Windows CD-ROM. After installation, the PC may be restarted.

  • Page 19: Tcp/Ip Configuration Setting

    5.5 TCP/IP Configuration Setting Click Start –> Settings –> Control Panel –> Network Select TCP/IP, and then click Properties. Before processing the IP camera installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. If you are using a DHCP server, please select Obtain an IP address automatically. Any assigned IP address for the connected LAN CAMERAs must be in the same class type as the server. If there is no DHCP server, please select specify an IP address and type in the IP address of your PC. NOTE: The IP address of a IP camera in a network must be unique to itself as opposed to those of the other chosen PCs, but in the same class type.

  • Page 20: Connection Testing

    5.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start –> Programs –> MS-DOS Prompt Type in ping 192.168.1.168 then Enter. (See the sample screen below) • This IP is the IP camera IP address that is assigned for the connected IP camera in step .
  • Page 21 If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installation by repeating steps  to 5. If you still can’t establish the connection after re-checking, please contact your dealer. If you receive a response as in the sample screen below, you have successfully made the connection.

  • Page 22: Operating Instructions For Image Software And Network

    6. Operating Instructions for Image Software and Network Two choices of software are available for linking up with the IP camera: () the Microsoft Internet Explorer; and () the IP camera VIEWER, a network browser in a PC which provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol. The details are listed as follows. System Requirements • Compatible with operating systems such as Windows 000 and Windows XP. • Internet Explorer 6.x. • Non-network modem installation needs Windows PC. RJ-45 PIN configuration for Ethernet PIN NO. PIN Assignment RJ-45 socket TX + TX - RX + Not Connected Not Connected RX - Not Connected Not Connected Physical specification for Ethernet Wire Type Cat.

  • Page 23: Microsoft Internet Explorer

    6.1 Microsoft Internet Explorer 6.1.1 Connecting the IP camera . Start up the Microsoft Internet Explorer, and then follow the steps below to connect the IP camera. . Click the URL block at the top of the window. 3. Enter the URL address of the IP camera into the URL block and press the „Enter” button to enter the home page. 4. Scroll to the bottom of the page, with its five icons, „Image”, „Network”, „System”, „Application” and „SD Card”. Whichever you click, the page headlined „Enter Network Password” will appear. 5. Type in the „User Name” and „Password” in the appropriate spaces. 6. Click the „OK” button to set your entries, and automatically exit the page. NOTE: The default „User Name” and „Password” are admin and 9999 respectively. NOTE: The page headlined „Enter Network Password” is shown below. Please enter the user name and password of the IP camera when you see it.
  • Page 24 Browsing images from the IP camera The images from the IP camera will be displayed on the home page while going online with the IP camera. Some buttons provided at the bottom of the home page for further setting. In MJPEG mode or in MPEG4 mode, there are different display formats of its home page. Homepage of MPEG4 mode Homepage of MJPEG mode • Click the Image button to enter the image-setting page. • Click the Network button to enter the network-setting page. • Click the System button to enter the system-setting page. • Click the Application button to enter the application-setting page. • Click the SD Card button to open the SD Card- FILELIST of the MEMORY CARD window, if the SD card is inserted. • Click the Pan/Tilt button to change the Pan/Tilt/Zoom settings. • Click the button to change the time/date display mode. • Click the button to switch high/low speed network. • Click the button to play the live audio. Click once again to deactivate. • Click the button to archive AVI videos into your PC. Click once again to deactivate. In the recording mode, there will appear a red twinkling icon in the upper-right hand corner of the image.

  • Page 25: Change Image Setting

    6.1.2 Change Image Setting Please follow the steps below to change the image setting through the network if and as necessary. . Click the image button on the home page to enter the image-setting page. Image setting page of MPEG4 mode Image setting page of MJPEG mode . Adjust the image setting including „Device Title”, „Resolution”, „Quality”, „Frame rate” (MPEG4 mode only), „Format”, and „Viewer Type” (MJPEG mode only) if necessary. 3. Click the Submit button to submit the new image setting. 4. Click the Fine Tune button to enter the Image Fine Tune page to set the details of the device including: „Brightness”, „Saturation” and „Sense Up”. Click the Default button to reset all the settings. NOTE: The revised image will appear immediately after any change in made.
  • Page 26 5. Click the Privacy Mask button to enter the Privacy Mask page. 6. Click the Day & Night button to enter the Privacy Mask page. Click the drop-down list to choose the Day & Night mode of „Auto”, ”Day mode”, „Night mode” and „Schedule”. NOTE: In the „Schedule” mode, you can click the icon to set the Day or Night mode of each hour. „0” means „00:00~00:59”, „1” means „01:00~01:59”, and so on.
  • Page 27 7. Click the Home button to return to the home page while the new image setting acts on the images to effect the desired changes instantly. (If the setting has not been changed by the above steps, any (re)entry onto the home page will find images in their earlier or original setting.) Exchange the image format . Tick on one of the formats then press the Submit button. . The IP camera will restart automatically after several seconds. Description of function keys MPEG4 mode Device Title: Type in the camera title in the given space. Resolution: Scroll to choose the image resolution from „VGA” or „QVGA”. Quality: Scroll to choose the image quality out of a spectrum of qualities ranging from „highest”, „high”, „medium”, and „low” to „lowest”. In MPEG4 mode, you can also set the quality by typing in the value. The custom quality value must be in the range between 64 Kbps to 89 Kbps. Frame rate: Click the drop-down list to choose the frame rates of „5FPS”, „4FPS” or „5FPS”. Format: Click to choose the „MJPEG” or the „MPEG4” mode. Fine Tune mode Brightness: Enter your desired quality of image brightness from a spectrum of 0 to 55. Saturation: Type in the saturation level in the blank (0 to 55). MJPEG mode Viewer type: Click to choose the viewer type of the „ActiveX” or „JAVA Applet” mode. Submit: Click to submit the new image setting to the IP camera. Default: Click this button to install the default settings in all the entries for image parameters on this page.

  • Page 28: Change The Network Setting

    6.1.3 Change the Network Setting Please follow the steps below to change the network setting through the network if and as necessary. • Set the network options and IP address . Click the network button in the home page to enter the network-setting page. . The accessible networks here are the „FTP”, „SMTP”, „SNTP”, „DDNS”, „PPPoE”, „UPnP”, „IP Filter” and the „Traffic”. 3. Fill in the „IP Address”, „Netmask”, „Default gateway”, „Primary nameserver”, and „HTTP Port Number” if necessary. 4. Click the Submit button to submit the new network setting. 5. Click the Home button to return to the home page. Description of function keys IP Address: Enter the 4Byte IP Address in the appropriate blank space (the value in each box may be anywhere between 0 and 55). Every IP camera has to own an IP address to be identified on the network. Netmask: Fill in the 4Byte Subnet Mask in the required blank spaces (usually any numbers between 0 and 55). It is used to identify the subnet where the IP camera is sited. Default gateway: Type in the 4Byte Gateway in the relevant blank spaces (each unit value must be between 0 and 55). Primary nameserver: Enter the 4Byte DNS Server Address in the blank spaces provided (each value unit must be between 0 and 55). The DNS Server is in charge of translating the Domain Name into the IP Address.
  • Page 29 • Change the Network Setting - FTP (MJPEG mode only) Please follow the steps below to change the FTP setting via the network if necessary to upload recording data live. . Click the FTP button at top left to enter the „FTP Server Setting” page. . Type in the „FTP Server” address, the „User Name”, and the „Password” of the FTP Server; and set the „File Upload Path” of the image files when necessary. 3. Click the Submit button to submit the new FTP setting of the recording. 4. Click the Home button to return to the home page. Description of function keys FTP IP Address: Enter the FTP server DOMAIN NAME or IP address in the appropriate blank spaces. User Name: Fill in the FTP user name in the attached blank space (if the data is not provided, warning messages will show up). Password: Type in the FTP password in the attached blank space (if the space is blank, warning messages will show up). File Upload Path: Enter the upload path while doing the FTP. Submit: Click to submit the new FTP setting to the network camera.
  • Page 30 • Change the Network Setting - SMTP (MJPEG mode only) Please follow the steps below to change the SMTP setting through the network if necessary. . Click the SMTP button at upper left above to enter the „SMTP Server Setting” page. . Click ”My Server Requires Authentication” to checkmark the attached box and activate the function. 3. Fill in the Sender name, DOMAIN NAME of the SMTP server, and set the recipient’s e-mail address if necessary. 4. Click the Submit button to submit the new SMTP setting. 5. Click the Home button to return to the home page. Description of function keys Account Name & Password: Fill in the account name and password if you check marked the „My Server Requires Authentication” function SMTP Server: Enter the SMTP server DOMAIN NAME or IP address in the given blank space. Email Address: The recipient’s e-mail address Submit: Click to submit the new SMTP setting to the network camera.
  • Page 31 • Change the Network Setting - SNTP Please follow the steps below to change the SNTP setting through the network if and as necessary. . Click the SNTP button at upper left above to enter the „SNTP SERVER SETTING” page. . Enter the IP Address of the SNTP server, and choose one of the time zones as and when necessary. 3. Click „Automatically Adjust for Daylight Saving Time Changes” to checkmark the attached box and activate the function. 4. Click the Submit button to submit the new SMTP setting. 5. Click the Home button to return to the home page. Description of function keys SNTP Server: Enter the SNTP server DOMAIN NAME in the blank space provided. Time Zone: As we know, the globe is divided into various time zones. The user must enter his/her time zone. If this is not done, the time given by the unit may be incorrect. Submit: Click to submit the new SNTP setting to the IP camera.
  • Page 32 • Change the Network Setting - DDNS The „Network” page has, on its upper left, the „DDNS” icon. Please follow the steps below to change the DDNS setting through the network if and as necessary. . Click the DDNS button at upper left above to enter the „DDNS SETTING” page. . Click the „Enable DDNS Function” to checkmark the attached box and activate the function. 3. Click „DDNS Type” to open the list of two DDNS modes to choose from: „DynDNS” and „hn”. Click the „Apply” button and connect their website automatically and visit it. Type in your dynamic IP Address and Email Address. If they are accepted by the website, you will get an Email containing your DDNS Account and DDNS Password in your Email box. 4. Type in the „DDNS Host Name”, the „DDNS Account” and the „DDNS Password”. 5. Click the Submit button to submit the new setting. 6. Click the Home button to return to the home page. NOTE: Please refer to 5.1.8 PPPoE & DDNS section for more details. Description of function keys Enable DDNS Function: Checkmark to activate the function DDSN Type: Click to open the list of two DDNS modes to choose from: „DynDNS” and „hn”.
  • Page 33 • Change the Network Setting - PPPoE The „Network” page has, on its upper left, the „PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network if necessary. . Click the PPPoE button at upper left above to enter the „PPPoE Setting” page. . Please read the „PPPoE Troubleshooting” document first, then press „Close” button. 3. Click the „PPPoE mode” to activate the function. 4. Type in the PPPoE „Account” and the PPPoE „Password”. 5. Click the Submit button to submit the new setting. 6. Click the Home button to return to the home page. NOTE: Please refer to 5.1.8 PPPoE & DDNS section for more details. Description of function keys PPPoE mode: Click your choices to enable the PPPoE function Account: Enter it in the given space.
  • Page 34 • Change the Network Setting - UPnP The „Network” page has, on its upper left, the „UPnP” icon. Please follow the steps below to change the UPnP setting through the network if necessary. . Click the UPnP button at upper left above to enter the „Universal Plug and Play” page. . Click „Enable UPnP” to checkmark the attached box and activate the function. 3. Type in the UPnP „Max Expired Age”, the „SSDP Port” and the „UPnP Port”. 4. Click „Enable UPnP Memory Card Access” to checkmark the attached box and activate the function. 5. Click the Submit button to submit the new setting. 6. Click the Home button to return to the home page. Description of function keys Max Expired Age: Enter it in the given space from a range of 0~3600. SSDP Port: SSDP stands for Simple Service Discovery Protocol. SSDP searches for upstream Internet gateways using UDP port 900. UPnP Port: Type in the UPnP Port in the attached space. Submit: Click to set.
  • Page 35 • Change the Network Setting - IP Filter The „Network” page has, on its upper left, the „IP Filter” icon. Please follow the steps below to change the IP Filter setting through the network if necessary. . Click the IP Filter button at upper left above to enter the „Network Setting” page. . Click „Enable IP Filter” to checkmark the attached box and activate the function. 3. Select the Default policy. 4. Set the Allow/Deny IP Filter policy and enter its IP address. 5. After setting the policies, they will be shown on the Policy List. The user can use the „Up” or „Down” to select a policy and use the „Delete” button to erase it. 6. Click the Submit button to submit the new setting. 7. Click the Home button to return to the home page. NOTE: The settings of the IP Filter must be correct or you may not able to operate the device regularly. In case of the wrong setting of the IP Filter and you can’t access the device normally, please press the „Default”...
  • Page 36 • Change the Network Setting —Network Traffic. The „Network” page has, on its upper left, the „Traffic” icon. Please follow the steps below to change the UPnP setting through the network if necessary. . Click the Traffic button at upper left above to enter the „Network Traffic” page. . Type in the „Maximum Upload Bandwidth” and the „Maximum Download Bandwidth”. 3. Click the Submit button to submit the new setting. 4. Click the Home button to return to the home page. Description of function keys Maximum Upload Bandwidth: Enter it in the given space from a range of 0 to 0400. Maximum Download Bandwidth: Enter it in the required space from a range of 0 to 0400. Submit: Click to set.

  • Page 37: Change The System Setting

    6.1.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network if and as necessary. • Set the Date and Time of the system . Click the System button in the home page to enter the „Date and Time” page (default). . Choose one of the three modes shown on the page to set the Date and Time of the system. The three modes are „Set Manually”, „Synchronize With Computer Time”, and „Synchronize With SNTP Server”. 3. Click the Submit button to submit the new Date and Time setting. 4. Click the Home button to return to the home page. Description of function keys The Local Time: Shows the current date and time of the Network camera. Set Manually: Manually sets the date and time of the network camera. Synchronize With Computer Time: Synchronizes with the linking computer. Synchronize With SNTP Server: Synchronizes with the SNTP server. In this mode, two choices of adjusting are provided: doing it manually or setting the frequency to enable the system to do it automatically.
  • Page 38 • Change the System Setting - Timestamp Please follow the steps below to change/add the timestamp through the network if necessary. . Click the Timestamp button on the left side of the „System - Date and Time” page to enter the „System- Timestamp” page. . Click „Enable Timestamp” to checkmark the attached box and activate the function 3. Add or modify any timestamp’s data if necessary. 4. Enter the „Timestamp Color” you have chosen. 5. Enter the „Timestamp Location” you have chosen. 6. Enter the „Timestamp Format” you have chosen. 7. Click the Submit button to submit the new user’s setting. 8. Click the Home button to return to the home page. Description of function keys Enable Timestamp: Checkmark to activate the function. Timestamp Color: Click to open the list of eight color modes to choose from: „BLACK”, „WHITE”, „RED”, „ORANGE”, „YELLOW”, „GREEN”, „BLUE”, and „PURPLE”. Timestamp Location: Click to open the list of four location modes to choose from: „UPPER LEFT”, „UPPER RIGHT”, „BOTTOM LEFT”, and „BOTTOM RIGHT”. Timestamp Format: Click to open the list of six format modes to choose from: „YY/MM/DD”, „MM/DD/YY”, „DD/MM/YY”, „YY/MM/DD TITLE”, „MM/DD/YY TITLE”, and „DD/MM/YY TITLE”.
  • Page 39 • Change the System Setting - Users Please follow the steps below to change/add the users’ authority through the network if necessary. . Click the Users button on the left side of the „System - Date and Time” page to enter the „System - Users” page. . Add, modify or delete any user’s data if and as necessary. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. Description of function keys User List: The list shows the registered user(s) and the corresponding authority. Delete: Deletes the user selected. Name: Enter the user’s name, which will be added or modified Password: Enter the new password of the user’s name above. Confirm: Type in the password again for verification. Authority: Choose an authority option of the user’s name from: Admin, Operator, and Viewer. Submit: Click to submit the new setting to the network camera.
  • Page 40 • Change the System Setting - Digital I/O Please follow the steps below to change the Digital I/O through the network if necessary. . Click the Digital I/O button on the left side of the „Date and Time” page to enter the „DIGITAL I/O SETTING” page. . Mark „Digital Input” „ON” or „OFF” and the „Digital Output” „ON” or „OFF”. Click your choices to enable. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. Description of function keys Digital Input: Select „ON” or „OFF” to use the GPIO connector, or shut it down. Digital Output: Select „ON” or „OFF” to use the GPIO connector, or deactivate it.
  • Page 41 • Change the System Setting - Audio Mechanism Please follow the steps below to change the Audio Mechanism through the network if necessary. . Click the Audio Mechanism button on the left side of the „Date and Time” page to enter the „Audio Mechanism Setting” page. . Mark „Audio Mechanism” „ON” or „OFF”. 3. Click the Submit button to submit the new user’s setting. 4. Click the Home button to return to the home page. NOTE: This setting is for turning the audio mechanism of the Camera on/off automatically. The Live audio service is not provided in the MPEG4 mode via the Web browser. Description of function keys Audio Mechanism: Select „ON” or „OFF” to activate or deactivate the function.
  • Page 42 • Change the System Setting - RS485 Setting. Click the RS485 Setting button on the left side of the „Date and Time” page to enter the „RS485 Setting” page. Description of function keys Baud rate: Eight different speeds can be used: 400 baud per second, 4800 baud, 9600 baud, 900 baud, 8800 baud, 38400 baud, 57600 baud and 500 baud. Type: Choose one of the types. Device ID: You have the option of using an ID code (any number between 1 and 255). Raw format: Set to transmit the ASCII codes. Canonical format: Set to transmit the character string.
  • Page 43 • Change the System Setting - Update Firmware Please follow the steps below to update the firmware through the network if necessary. . Click the Update Firmware button on the left side of the „Date and Time” page to enter the „Update Firmware” page. . Click the „Browse…” button to select the UPDATE.BIN file which was copied into your computer. 3. Click the „Update” button. 4. DO NOT power off the Network camera while this update process is running. NOTE: Don’t interrupt the process while the unit is updating itself. NOTE: Please make sure that the UPDATE.BIN file is fit in with the model of the unit. Updating with the wrong UPDATE.BIN file may cause any physical damage to the device.
  • Page 44 • View the Event Logs Please follow the steps below to view events through the network if and as necessary. . Click the Events button on the upper left above to enter the „Event Log” page. . Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled „First Page”, „Previous 0”, and „Next 0”. Description of function keys First Page: Displays the first page Previous 20: Displays the previous 0 pages Next 20: Displays the next 0 pages...

  • Page 45: Change The Application Setting

    6.1.5 Change the Application Setting Please follow the steps below to change the application setting through the network if and as necessary. • Change the Application Setting - FTP Application Setting (MJPEG mode only) Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live. . Click the Application button on the home page to enter the „FTP Application Setting” page (default). . For storage setting, type in the required number of images you wish to set in the „Pre- Alarm Memory Buffer” and the „Alarm Memory Buffer” respectively in their corresponding blank spaces. 3. Enter the „Upload Rate” you have chosen. 4. Click Submit after each of the above entries for their setting. 5. Click the Home button to return to the home page. Description of function keys Pre - Alarm Memory Buffer: Fixes the desired number of images to prelude an alarm. Alarm Memory Buffer: Determines the selected length of the image buffer after an alarm. Upload Rates: Sets the upload speed rate.
  • Page 46 • Change the Application Setting - SD Card Application Setting Please follow the steps below to change the SD CARD setting via the network if necessary to upload recording data live. . Click the SD card button on the top left to enter the „SD-Card Application Setting” page. SD Card setting page of MJPEG mode SD Card setting page of MPEG4 mode . You have an option as to which SD - card storage format to use, the MJPEG (MJPEG mode only) or the AVI. Click your selected format and click Submit to set it. 3. If it’s MJPEG you want, fill in the „Max MJPEG Numbers” entry. 4. If AVI is your choice, enter its recording rate and duration in seconds, and click Submit for their setting. Description of function keys MJPEG Format: One image per file Max MJPEG Numbers: Sets the number of file sequences you can save per second.
  • Page 47 • Change the Application Setting - SMTP Application Setting (MJPEG mode only) Please follow the steps below to change the SMTP setting via the network if necessary. . Click the SMTP button on the left side to enter the „SMTP Application Setting” page. . Enter the attached file number as and when necessary. The maximum number which can be used is 8. 3. Click the Submit button to submit the new SMTP setting of the recording. 4. Click the Home button to return to the home page. Description of function keys File numbers: Sets the quantity of images per Email.
  • Page 48 • Change the Application Setting - Language Setting Please follow the steps below to change the Language setting via the network if necessary. . Click the Language button on the left side to enter the „Language Setting” page. . You have an option as to which language to use. The default is „English” 3. Click your selected language and click „Submit” to set it.
  • Page 49 • Change the Application Setting -Record Application Enable Setting Please follow the steps below to change the setting via the network if necessary. . Click the Enable Record button on the left side of the record to enter the „Record Application Enable Setting” page. Record setting page of MJPEG mode Record setting page of MPEG4 mode . Click „Enable Record - UPLOAD Via FTP” to checkmark the attached box and activate the function (MJPEG mode only). 3. Click „Enable Record - Save Into SD card” to checkmark the attached box and activate the function. 4. Click the Submit button to submit the new setting of the recording. 5. Click the Home button to return to the home page. Description of function keys Enable Record - Upload Via FTP: Activates or deactivates the recording to the FTP server.
  • Page 50 • Change the Application Setting -Record - Schedule . Click the Application button on the home page to enter the „SCHEDULE” page. . Check/uncheck any/all of the first seven boxes set vertically in the upper half of the „Schedule” page to enable/disable the programmed recording function, and vary the setting of the targeted item while it is enabled. 3. Click the Submit button to submit the new schedule setting. 4. Click the Remove All Schedules button to clear out all the data of the schedule setting. Description of function keys Schedule: Check / uncheck the first seven boxes in a vertical row on the left to enable/disable the programmed scheduled recording function if necessary. Vary any of the schedules of the recording setting if necessary (please refer to the above description). Chart: Schedule list Submit: Click to submit the new setting to the IP camera. Remove All Schedules: Click to clear out all the data of the schedule setting.
  • Page 51 • Change the Application Setting - Alarm Application Enable Setting Please follow the steps below to change the setting via the network if necessary. . Click the Enable Alarm button on the left side of the record to enter the „Alarm Application Enable Setting” page. MJPEG mode MPEG4 mode . Click „Enable Alarm – Trigger an Alarm When Ethernet Is Lost” to checkmark the attached box and activate the function. 3. Click „Enable ALARM - UPLOAD via FTP” to checkmark the attached box and activate the function (MJPEG mode only). 4. Click „Enable ALARM - SAVE Into SD Card” to checkmark the attached box and activate the function. 5. Click „Enable ALARM - UPLOAD Via SMTP” to checkmark the attached box and activate the function (MJPEG mode only). 6. Enter the „Alarm Duration” you have chosen. 7. Click the Submit button to submit the new setting of the recording. 8. Click the Home button to return to the home page. Description of function keys Enable ALARM - Trigger an Alarm When Ethernet Is Lost: Activates or deactivates the alarm triggering while the Ethernet lost.
  • Page 52 • Change the Application Setting - Alarm - Motion Detection Please follow the steps below to enable changes in the motion detection function of the alarm through the network if necessary. Set the motion detection: . Click the Motion Detection button on the left side of the Alarm to enter the „Alarm - Motion Detection” page. . Click and drag the mouse across a targeted zone to draw a red rectangle on the image (coordinates provided below). NOTE: You can set more than one targeted zone depending on your requirement. 3. Enables / disables the motion detection function. 5. Set up the signal level. 6. Click the Submit button to submit the new setting of the recording. 7. Click the Home button to return to the home page.

  • Page 53: Change The Sd Card Setting

    6.1.6 Change the SD Card Setting Please follow the steps below to change the SD Card setting through the network if and as necessary. • Change the SD Card Setting - FILELIST of MEMORY CARD Please follow the steps below to change the setting via the network if necessary. . Click the „SD Card” button at the bottom of the home page to enter the page containing the „FILELIST of MEMORY CARD”. The page comes in two modes, the JPEG and the AVI (please refer to the chapter „SD card Application Setting” page). . Click the desired file to display the images therein. 3. Every file can be deleted by clicking the attached „DELETE” hyperlink. NOTE: You can’t directly click the hyperlink of the file in the „FILELIST of MEMORY CARD” page with the right button of the mouse focus then click „SAVE”...
  • Page 54 6.1.7 Change the Pan/Tilt Setting Click the Pan/Tilt button on the home page to open the Speed Dome Controller. . Click „Configure” to enter to the RS485 setting page (please refer to Change the System Setting - RS485 Setting). . Select a Speed Dome device ID from the drop-down list on the Speed Dome Controller. The Controller will display the corresponding ID. 3. Each of the ten buttons under ‚Set’ is connected with a specific position and angle of either panning or tilting of the camera. Click each button to activate its particular position and angle. Press the button under ‚Preset’ to turn the camera angle by angle in the set positions. Each of the ten buttons designated ‚Go to’ can be clicked to view the particular corresponding angle of the position in which it is set. 4. Select the connecting port. The RS-3 communication port functions as a connector to an external control device. 5. Upon the buttons being clicked, a camera will move one short step only in any of the four designated directions. 6. Click the buttons to control the Focus setting on the Speed Dome Controller. Click „+” button to focus far and click the „–” button to focus near. 7. Click the buttons to control the Zoom setting on the Speed Dome Controller. Click „+” button to zoom in and click the „–” button to zoom out. 8. Upon the buttons being clicked, a camera will turn all the way, without stopping, in one of the four designated directions. 9. Click the buttons to control the Aperture setting on the Speed Dome Controller.
  • Page 55 6.1.8 PPPoE & DDNS Using the PPPoE . Install the XDSL software (obtained from your ISP dealer) in your PC. . Search your IP camera’s IP address: you can use your Network Viewer’s Scan IP program, or just connect the LAN CAM and the Video monitor. The monitor screen will show the IP address on its right side. 3. Change the switch on the LAN CAM’s side panel to position 4. 4. Installing an IP address in your PC or notebook. Desktop –> Move the mouse focus to the Network neighborhood and click the right key of the mouse –> Choose the properties –> Choose your local connection –> Choose the properties and select the configuration –> Select the TCP / IP –> Choose the properties –> Type in the IP address in a four - part formula, for example „9. 68. .0” (the first three parts must be identical to the above numbers, only the last part can be changed to your own number, which must never exceed 55) –> Click the mask and the mask input, namely „55. 55. 55. 0” (a fixed formula) –> Click „OK” –> Click „OK”. 5. Desktop –> Choose IE browser –> Type in the IP camera IP address in the URL (check step  above) –> Enter –> LAN CAM images will appear. PPPoE Settings . Enter the IP camera home page –> Choose the network –> Type in „User Name: admin” and „Password: 9999” –> Click „OK’. . Choose PPPoE –> PPPoE mode: Select „ON” –> Type in „Account” –> Type in „Password” –> Submit –> Unplug the power connection. 3. Plug in the IP camera and it will receive an IP address from the ISP dealer (this IP address is dynamic - every time you unplug and plug in again you’ll get a new IP address). Test: Go to the Internet. . Set your PC to enter the Internet.

  • Page 56: The Ip Camera Eneo Gl-Manager

    6.2 The IP camera eneo GL-Manager This section provides instructions for installing and using the eneo GL-Manager and Image Viewer, which are included with the network camera. The programs can be operated by a selected PC equipped with the following requirements. System Requirements • Intel Pentium .5GHz processor or above (.8GHz or higher recommended). • 8MB RAM at least (56MB or higher recommended). • Windows 000, XP or above. • 4MB VGA card capable of 4Bit true color display. • 00MB free hard-disk space for software installation. • 0/00 Base-TX network for LAN operation. • The Microsoft Internet Explorer 6 above. In the multi-channel recording mode, the HD data transfer rates must be 66MB or above (00MB or higher recommended). 6.2.1 Introduction to eneo GL-Manager The eneo GL-Manager allows you to access many units of the network camera from a remote desktop or a laptop in a TCP/IP networking environment. It can perform the following functions. • View live images from the network camera. • Store, search, and review recorded video from an FTP server, PC, and SD card. • Change a regular record, event record, and timer properties. Before you are ready to view images from a desktop, you need to have your network camera networked by obtaining a 0/00 base-TX Ethernet data cable (Standard RJ-45) to connect the network camera to your LAN/WAN. Now enter...
  • Page 57 6.2.2 Install the eneo GL-Manager in your PC Install the eneo GL-Manager from the supported CD-R . Exit all applications currently running in the selected PC. . Insert the supported CD in the CD-ROM drive. The program will execute the installation automatically. Follow the on-screen instructions to proceed with the rest of the installation procedure as they appear. NOTE: It will update the .NET Framework to version 2.0 automatically. Please click „Accept” to continue. 3. After the installation is complete, pop up the START menu from your computer, and point to Programs / eneo GL-Manager / eneo GL-Manager to open up the program selection page as shown below.
  • Page 58 6.2.3 IP camera software Login the IP camera software Once the eneo GL-Manager is executed, a Login prompter will appear. You must enter the default User Name: admin, and the password: 9999 in the respective spaces. Click the „OK” button and enter the console page of the eneo GL- Manager: both the user name and password must be entered correctly. Click the „Cancel” button and exit the login of the Network Viewer. View the Network camera video from a remote PC Follow the instructions below to use the eneo GL-Manager to browse a network camera video from a remote location. Upon entering the eneo GL-Manager, a connection box will appear as follows.
  • Page 59 . Press the button to enter the Settings page. . Press the button to add a new device group. After typing the Group Name, please press the OK button. 3. Add a channel from the button. 4. (1) Click the Auto-Search button at the bottom of the „Connect Network Camera Wizard” page to discover the connection of the network camera - type device in the LAN. Instantly the „Search Network Camera „ page will appear. Click the device of your choice and click „Select” at the bottom of the page to access the „Connect Network Camera Wizard” page again. (2) Type in the IP Address or the domain name and HTTP port of the device and add the device to the Device List. 5. Type in the Password in the „Connect Network Camera Wizard „ page. Click „Next” button to open another „Add Device Wizard” page.
  • Page 60 6. This page provides the IP Address, the device type, and the MAC Address. After typing the Device Title and selecting the Connect Mode, please click the „Next” button to access the next „Connect Network Camera Wizard” page. NOTE: Please click the icon to see the details of the Connect Mode. 7. After finishing the setting of the Device Recording, please click the „Finish” button to establish the connection between the device and the computer. 8. Click the device title to begin viewing images with this camera from the Device List. NOTE: To add more connections or units to the network camera, please repeat the above instructions.
  • Page 61 6.2.4 Operation 6.2.4.1 Live Monitor Once the connection has been established, click the button to enter the Live Monitor window. (See the sample screen below.) On the left side of the window is the connected device that has been arranged when you established the connection. . The Live Monitor icon: • Add a camera video onto the Live Monitor area: () Click on the title of the camera that was connected. () Hold down the right mouse button and drag onto the droppable Live Monitor area. The video from the new camera will be displayed. (3) In the Live Monitor area, if you want to exchange the videos of different cameras, you can drag the video and drop it where you want to locate the video. . The Split-Screen display function bar: This allows you to display the connected device in the single channel and multi-format screens. 3. The Sequence configuring button: Press to enter the sequential jumping mode, each multi-screen, and one sequence; the picture will sequentially switch to different channels according to the Sequence Views setting (refer to 6..4.3).
  • Page 62 7. Motion on/ Alarm on: The warning icons Motion-on icon: When there is a detection of motion in any channel, it will display this icon in the right upper corner of that channel to warn the user. Alarm on-icon: When there is a detection of external devices such as a sensor, it will display this icon on the upper right corner of that channel to warn the user. 8. Pop-menu: You can use the mouse to move to each channel. Click the right key of the mouse to show a window. You can select „Delete”, „Capture / Print”, „Play/Stop Audio” or „Reexamine Audio Mechanism”. 9. Click this button to hide the „devices list”, „common” and „alarm message list” boxes from view behind the video display screen. 0. The section in the upper left margin will show the information in all the devices and its group names. The users can click and hold on the device title on the list and drag it to the Live monitor area to see the live image of the camera. . Common icons: Play Audio: Click the button to play the live audio. Click once again to deactivate. Record: Click the button to archive AVI videos into your PC. Click once again to deactivate. In the recording mode, there will appear a red twinkling icon in the upper-right hand corner of the image. Capture / Print: Provides the image capturing and printing functions Delete: Drop the view here to delete it. • Delete a camera video from the Live Monitor area: () Select the video of the camera which you want to delete.

  • Page 63: Playback Viewer

    6.2.4.2 Playback Viewer Press the button to enter the Playback Viewer setting page. . The Playback Viewer icon . The display area 3. Click to choose the The alarm events which were recorded will be marked in pink colour. Recording List Live Event Message Click to refresh the recording list.
  • Page 64 NOTE: To view the alarm lists of a camera which were recorded, please (1) click the icon (2), the Alarm List window will appear as shown below, (3) select a camera from the drop-down list, then (4) click the „Search” button. 4. Move to left/right area.
  • Page 65 • Play Rate: During play mode, please use the scroll bar to control the show speed. 7. Shows the device title 8. This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH/DAY/YEAR/HOUR/ MINUTE you wish to search and click to proceed. 9. Functions to fit the starting and ending points of an image display, when the user wants to transfer a file. JPEG: Archives images in the JPEG format to save a single picture in every file. AVI: Archives images in the AVI format to save a sequence of images in a file. WARNING: The audio and video signals would likely be unable to play back simultaneously because of incomplete files caused by unstable network transmission or altered setup while doing the AVI backup with the „Include Audio”...
  • Page 66 6.2.4.3 Setting Press the button to enter the Setting page. . The Setting page . Function buttons: Add a new device group. Click this button and type in the new group, then press „OK” to save it. Remove a device group. Click this button and select the group name, then press „OK” to delete the group. Add a new camera. For more details please refer to section 6..3. Remove a camera. Click this button and select the group name and Lan camera, then „OK” to delete the device. To edit camera. Please select a device then click this button to edit the device.
  • Page 67 1. Device Setting page 2. Image Setting page NOTE: The eneo GL-Manager software connects the Internet to a network camera. There may be a problem if the bandwidth is not enough, in which case the speed rate of the image transmissions may become too low.
  • Page 68 (1) Global Settings • Monitor setup: Sets the date/time mode, display mode, and controls the CPU use percentage on five levels. • Default Directory: Sets the default files’ saving path. Click to select the directory. (2) Event Notification • Channel Prompt: Sets each camera to activate or deactivate the three modes of „Motion Buzzer”, „Sensor Buzzer”, and „Alarm Focus”. Tick mark the blank space for each device to activate it.
  • Page 69 • Popup Message: Sets the maximum number of the pop-up messages, the displaying time and the pop-up forms. Tick mark the blank space for each device to activate it. • E-mail Notice: Sets each camera to activate the E-mail Notice function of the three situations: „Motion Alarm”, „Sensor Alarm”, and „DISK Full”. Set the SMTP, the E-mail address and the attached file numbers to mail the user when the alarms occur. Tick mark the blank space for each device to activate it.
  • Page 70 (3) Recording Settings • Recording settings: You can control the HDD reserved space by using the scroll bar. • Recording quota setting: Set the maximum recording quota of each channel. (4) Scheduler () Choose one of the devices to set its recording schedule. () Select the period: Click to set to record only once or record every day. (3) Select the recording time: Sets the periods of time in recording. Select the Begin time and the End time then the time markers will display above. Please use the up (increase) and down (decrease) arrows to adjust the setting. Add the selected period schedule. You can also hold down the left mouse button to drag a period. Erase the selected period schedule. You can also use the right mouse button to cancel the period.
  • Page 71 (4) Select the recording mode. (5) Press to show the scheduled recording list. (6) Set the secondary schedule: Activate or inactivate the other recording modes besides the primary schedule. (7) Option buttons: Undo: Undo the latest changes. Clear: Clear all the schedule markers in the current editing area. Save: Apply the changes. Close: Close the window. (5) Sequence Views This function enables you to use four modes to set the sequence of displays you want for the Sequence Mode of the Live Monitor. The user has to modify the „Sequence Views Setting” to make it work. For example, if you want to see the 4-window sequence, please follow the steps given below: Step 1: Click the Sequence Views button to enter the Sequence Views setting page. Step 2: Select the „4 SEQ views” and the 4-windows will show in the Location Setting area. Step 3: Select one of the four channels (Location-4), then click the „Setting” button.
  • Page 72 Step 4: The 4 SEQ View(s) page will show below. Choose the device(s) and set the Dwell Time (3-30 seconds) from the drop-down list, then press the „Confirm” button. Step 5: Set the other channels as in step 3-4. Step 6: Click „Save all” button, then press „Close” button to exit the setting page. Step 7: Open the Live Monitor page, then click the (4 SEQ views) button to see the 4-window sequence. (6) Speed Dome • Tick mark to activate the Speed Dome Controller function of the selected channel. The user can set the model, ID and the protocol here.
  • Page 73 • Click „Configure” to enter to the RS485 setting page. (7) Authority Setup Authority setup: Change or add the user’s authority. There are three different levels of authority , namely Admin, Operator and Viewer.
  • Page 74 5. List of cameras and its groups: The users can use the icons above the list to change the groups’ names, the devices’ titles and the channels’ display modes. 6. Display area: Click the title of the camera, and you will see the live image in this area. 7. Device Recording: Click the „Start Record” button to start the recording mode and click the „Config Record” button to set the details of the recording below. 8. Status of the speed dome controller 9. You can interchange between two buttons here: the „Device Panel” and „Web page” buttons. The web page (please refer to section 6. for more details):...
  • Page 75 0. Device information: The user can read a camera’s information, such as „Site Name”, „Group Name”, „IP Address”, „HTTP Port”, „Device type”, „Monitor Alarm Process” and the „Connect Mode”. . Recording Scheduler: Shows the recording information of the selected channel. 6.2.4.4 Lock Press the button to lock the operation of this software and the eneo GL-Manager monitor will be minimized into the systray * of the Windows taskbar. To unlock the command, please click the button once, then type in the correct password. * The Microsoft Windows systray is a portion of the Windows 95, Windows 98, Windows ME, Windows NT, Windows 000, and Windows XP Operating Systems that helps display running programs. The systray is located on the taskbar and is commonly in the bottom right hand corner of the screen next to the time display. 6.2.4.5 Logout Press the button to logout the eneo GL-Manager software and the eneo GL-Manager monitor will be minimized into the systray of the Windows taskbar. If you want to return to the eneo GL-Manager monitor, please click the button once, then select the page which you want to get in. After typing in the correct user name and password, you can re-login to the software. 6.2.4.6 Tray Press the button to minimize the eneo GL-Manager monitor into the systray of the Windows taskbar. Click the button once to back to the eneo GL-Manager software.

  • Page 76: Exit Setting

    6.2.4.7 Exit Setting Press the button to exit the eneo GL-Manager monitor which is minimized into the systray of the Windows taskbar. Click the button to select the functions on the list. You can also change the password by clicking the „Tools” and „Change password” items on the list. Enter the old password once and the new password twice, then press the „OK” button to save it.

  • Page 77: The Image Viewer

    6.2.5 The Image Viewer The network camera is equipped with a digital watermark. It’s a checking software which protects archived images and informs you whether the images have been modified or not. Follow the instructions below to open an archived image from an SD card or an HDD. This is image integrity-protection software. It not only allows you to view an archived image from the SD card or HDD of a computer, but also protects an archived image from reproduction or interpolation. If an image isn’t in the original format made by a IP camera, the Image Viewer will not display the image and instead will send a warning message, „Not Correct Image”, right away. Close this message to enable you to see the image now. . Pop up the START menu in your computer, and point to Programs / eneo GL-Manager to open up the program selection page. Click the Image Viewer tag to start the Image Viewer program (see a sample screen below). . Click the RELOAD tag to load the images from a path. 3. Click the PRINT tag to get a displayed image printed out from a printer.

  • Page 78: Advanced Operation

    7. Advanced Operation Question 1: How to view the live images of the IP camera via the Microsoft Internet Explorer on the Desktop PCs or the laptop computers in a situation where there are no monitors or television ? • The way to get the IP address of the IP camera without a monitor: There are three way to get the IP address: Scan IP, Upnp and IP function.
  • Page 79 Question 3: How to use the DynDNS to connect the IP camera by using its Sub Hostname via the Intranet ? • Set the DDNS function . Click the Network button in the home page. . Click the DDNS button on the left side of the page to enter the „DDNS SETTING” page. 3. Tick on the „Enable DDNS Function” to activate it. 4. Choose one of the DDNS Types from the drop-down list. If you didn’t register for a DDNS before, please choose one of the DDNS Type then press „Apply” button to its registering homepage and register as a member. 5. Enter the DDNS Host Name, DDNS Account and DDNS Password which you created in the www.dyndns.com website.
  • Page 80 Question 4: How to add or modify the users and their authorities of using the IP camera ? • Entering the setting page . Click the System button in the home page. . Click the Users button on the left side of the page to enter the „SYSTEM - USERS” page. • Add a new user . Please enter the user name, the password, the confirmed password and choose the authority. There are three different levels of authorities, namely Admin, Operator and Viewer. Admin: The user who accesses with the admin name and password has the full power to even change the settings of the IP camera. Operator: The suggested choice for normal use.

  • Page 81: Specifications

    8. Specifications Type GLC-1601 Art. No. 9575 System Colour Video standard Sensor size /3” Imager Sony Super HAD Interline Transfer CCD (with HQ DSP), CCD Sensitivity (at 50% video signal) ,Lux, (colour); 0,6Lux (B&W). Videor measurement result at F. Horizontal resolution 480TVL, (Colour), 50TVL (B&W) Active picture elements approx. 440,000, 75(H) x 58(V) Automatic gain control (AGC) 4/30dB selectable Automatic shutter control (AES) /50 ~ /00,000sec. Digital noise reduction (DNR)
  • Page 82 Product information Viewer Software for the recording of upto 6 cameras GLC-60. System requirements for the Viewer Software: Standard PC with P IV processor and >.8GHz system clock, Windows 000 or Win XP, Network connection 0/00 Base-Tx-, Internet Explorer 5 or higher, Hard disk 80GB, depend on recording demand, RAM 5MB (recommended) Accessories Art. No. Type Description 70771 WD-23 Wall Mount Bracket with Ball Joint, /4” Camera Fixing Screw, Pantone 877 70769 WD-22 Wall Mount Bracket with Ball Joint, /4” Camera Fixing Screw, Beige Grey 76011 ZELARIS_AC S Surveillance Software for Network Cameras from Eneo, Axis 76012 ZELARIS_AC C Client Software for Zelaris_AC S 76023 ZELARIS_AC SMO Site Map Option for Zelaris_AC S 76001 ZELARIS V08 Digital Video Network Crosslink, 8 Inputs, not Extentable, USB .0 Dongle 76002 ZELARIS V16 Digital Video Network Crosslink, 6 Inputs, not Extentable, USB .0 Dongle 76003 ZELARIS VC Video Client S/W for NW Cameras/Encoder, USB .0 Dongle...

  • Page 83: Function Of Client Pc

    9. Function of Client PC System requirement Windows 000, XP or above Browser IE 6.x Live Monitor Max. 6 Split, Real Time REC / Capture / Audio / Live Event / Full Screen Playback Viewer Playback, Time / live event Search / Export (JPEG / AVI) Settings Device / System / Camera management / web page Multi-camera link Max. 6 cameras 10. Dimensional Drawings RESET Dimensions: mm...

  • Page 84: Appendix  - Scan Ip

    APPENDIX 1 SCAN IP Follow the instructions below to use the SCAN IP software to search the IP camera devices from a local location. button to discover the connection of the all-type device in the LAN. The Device List will display the . Click the connection of the all-type device. . Select the desired device from the Device List. 3. Click the desired device to show the window while the IP camera information acts to display the desired changes instantly. 4. Do you want to automatically search free IP? If and when you want to auto search the free IP, select „Yes” or „No”. If clicked „Yes” the software will provide the „Free IP Address” boxes on the right side of the window. If you click „No”, these address boxes will not show.
  • Page 85 Manual insertion of „Free IP Address” If you have clicked „No”, please manually type in insertions as required in the „Free IP Address”, „Gateway Address”, and „NET Mask”. Follow each insertion you make by typing in the „Login Name” and „Password”, and click „UPDATE” to send your alterations to the IP Camera. Automatically search „Free IP Address” . If you clicked „Yes” the „Free IP Address” box will appear on the right.
  • Page 86 . Select and double click any of the addresses in the „Free IP Address” box on the right to enter it into an IP Address on the left. 3. To change any IP address, type in the new address in the „Free IP Address” box on the right as well as the device „Login Name” and „Password” in their respective blanks at bottom left, then click „UPDATE”, and the new address will automatically be sent to the device. 4. Click „Exit” at bottom right to shut the device.

  • Page 87: Appendix  - Ip Camera Upnp

    APPENDIX 2 IP Camera UPnP The most troublesome issue when you setup a network camera is that you have no idea what the IP address of this device is. Now the network camera supports the UPnP (Universal Plug and Play) protocol which makes it easier for you to examine it; however, it is a pity that Microsoft Windows XP ® doesn’t start this service by default. Therefore, the following procedures will help you to turn it on and discover your camera step by step as shown below.
  • Page 88 1. Check the IP class of your PC In most case Microsoft Windows XP ® will assign an IP address, 69.54.*.*, automatically with a subnet mask, 55.55.0.0, if the DHCP server is absent, while the default IP address of a LANCam ® is 9.68..68 with a subnet mask of 55.55.55.0. There won’t be any communication due to different IP class domains, and you have to modify the relative settings or the UPnP protocol won’t work; however, checking your own IP address is necessary. Here are the procedures to check and modify them. Step 1: From the Start menu, point to Settings, and then click Control Panel. Step 2: When Control Panel appears, double-click the Network Connections icon. The Network Connections dialog box appears.
  • Page 89 Step 3: Click the Properties tab in the Network Connections dialog box. Step 4: When the Local Area Connection Properties dialog box shows up, choose Internet Protocol (TCP/IP) and click Properties.
  • Page 90 Step 5: In the Internet Protocol (TCP/IP) Properties dialog box, choose Use the following IP Address to indicate that you do not wish to use DHCP, and assign IP Address 9.68..00 with Subnet mask 55.55.55.0. Click OK when you finish it. Step 6: Choose Close to finish the modification.
  • Page 91 2. Install UPnP Packets As described before, Microsoft Windows XP ® doesn’t start the UPnP service by default; however, we have to install some packets before we initialize it. The following steps will help you to install them. Step1: From the Start menu, point to Set Program Access and Default, and then click it. Step 2: When the Add or Remove Programs dialog box appears, click the Add/Remove Windows Components button.
  • Page 92 Step 3: Check the Network Services in the Windows Component Wizard dialog box, and then click Details..Step 4: Check UPnP User Interface, and choose OK.
  • Page 93 Step 5: When the original Network Component Wizard dialog box returns, click Next. Step 6: After about one minute the UPnP installation will be done, and choose Finish to close it.
  • Page 94 3. Turn on Services After installation, we should turn on the relative services to start the UPnP protocol. The following procedures will teach you how to do it. Step 1: From the Start menu, point to Settings, and then click Control Panel. Step 2: When Control Panel appears, double-click the Administrative Tools icon. The Administrative Tools dialog box appears.
  • Page 95 Step 3: Click the Services icon in the Administrative Tools dialog box. Step 4: When the Services dialog box shows up, double click the SSDP Discovery Service icon.
  • Page 96 Step 5: Choose Automatic in the Startup type, and click OK to start it. Step 6: When the Services dialog box appears again, double click the Universal Plug and Play Device Host icon.
  • Page 97 Step 7: Choose Automatic in the Startup type, press the Start button, and click OK to start it. Step 8: Restart your system. 4. Scan LANCams ® through My Network Place After your installation and starting services, the UPnP protocol will take effect. You can scan all LANCams ® in My Network Place like below. Just double click the UPnP MPEG4 IP camera icon, and the video live stream will pop up automatically without assigning any IP address in Microsoft Internet Explorer ®...

  • Page 98: Appendix 3 - The Arp Function

    APPENDIX 3 The ARP Function Setting the IP Address The Ethernet interface on the LANCam has a default IP address (9.68..68) that most likely needs to be changed to make it work on your local network. You need to acquire a unique IP address (ask your network administrator). For the initial setting of the IP address the LANCam needs to be connected to the same network segment as your client, and the IP address can then be configured by using a combination of ARP and ping command. Use any of the following ways to set the IP address within thirty seconds after booting the LANCam (re-cycle the power). Setting IP using the method below can only be done on the Ethernet interface. ARP and ping from Windows or MS-DOS The user can open the PC’s MS-DOS windows from the WINDOWS 98 operation system, or open the PC’s Command Prompt windows from either the WINDOWS 000 or the WINDOWS XP operation system. • Start a DOS prompt window • Type the following in 30 seconds after the booting: arp -s <IP address> <Ethernet address> [or arp -s <IP address> < MAC address>] ping <IP address> Example: arp -s 9.68..00 00-0C-0C-00-00-0 ping 9.68..00 The IP address now is: 9.68..00. ARP and ping from UNIX or GNU/Linux • Start a shell • Type the following as superuser (root): arp -s <IP address> <Ethernet address>...

  • Page 99: Appendix 4 - Register As A Ddns Member

    APPENDIX 4 Register as a DDNS Member The DDNS (dynamic domain name system) is a function which is provided by an American company. Please refer to www.dyndns.com. This chapter provides the user with the basic instructions on how to register a free DDNS service. Registering for a DDNS Enter the URL www.dyndns.com. In the upper right-hand corner of the main page, where there is an item, „Create Account”, as shown below. Create an account After clicking „Create Account”, you will enter the Create Account page. Please complete the form at the bottom of the page to create your account. You will receive an e-mail containing instructions to activate your account. If you do not follow the directions within 48 hours, you will need to recreate your account.
  • Page 100 Set up the DDNS After creating the account successfully, please enter your user name and password in the upper right-hand corner of the main page to login, as shown below. After you login successfully, a text will appear saying „My Services”, as shown below.
  • Page 101 Click „My Services” to enter the service page. Please click the „Add Host Service” item which is below the „My Hosts” item, as shown below. Click „Add Host Service”, and its service items will appear. The Add Dynamic DNS Host item helps to add a new DDNS. Each member may have only one free account, and one free account can have only five DDNS. Click Add Dynamic DNS Host to enter the DDNS setting page as shown below.
  • Page 102 All we have to set in this page is the „Hostname” item. The user can choose a Sub Hostname as s/he likes from the right-hand side of the Hostname’s drop-down list. NOTE: You don’t have to set the „IP Address” in the same format as the camera’s IP Address. It will renew the IP Address automatically. After finishing the setting, please press the „Create Host” button as shown below.
  • Page 103 APPENDIX 5 MPEG4 Bit Rate Lookup Table of IP Camera 1. When frame rate is higher than 15 frames/second (15 is not including): Highest High Medium Lowest FULL D1 .63 .5 .75 .3 0.88 Half D1 .5 .5 0.75 Half VGA .3 .3 0.88...

  • Page 104: Appendix 6 - Faq

    5. How to turn on/off the OSD (on screen display) on/off on the IP camera ? A: Visit the homepage - tailpage.htm of the device, and select „ON” or „OFF” in the OSD column. Example: suppose the IP address of the device is 9.68..68 Type in http://9.68..68/tailpage.htm (a registration is needed) and select „ON” or „OFF” in the OSD column. WARNING: Please write down the IP address of the device before you turn off the OSD. ® eneo is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. V 1.2 Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Technical changes reserved.
