Valcom VIP-D625 User Manual

IP PoE Surface Mount Digital Clocks

INTRODUCTION

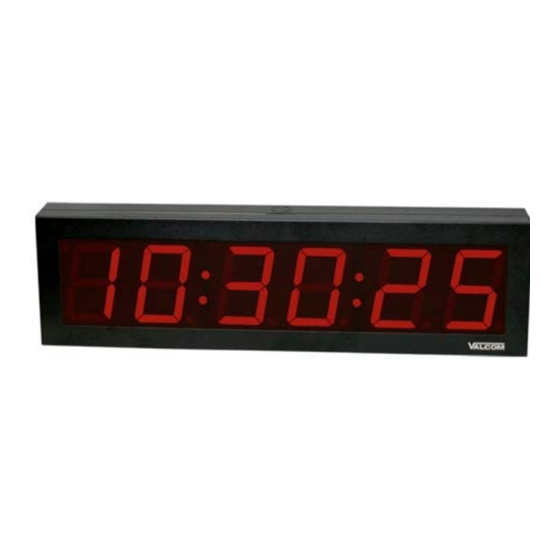

The VIP-D625 2.5 inch, 6 Digit Clock Display and
VIP-D640 4.0 inch, 6 Digit Clock Display enable
time indication, synchronization, and correction over
an IP-based LAN/WAN. This allows locating a clock
display anywhere on the network. Clock
synchronization is initiated via connection to a
factory preprogrammed time server. The enclosure
is made of steel with a durable powder coated
finish. The color of the enclosure can easily be
changed to match any décor. Power is provided to
the VIP-D625 and VIP-D640 via a Power over
Ethernet (PoE) switch meeting the 802.3af
specification.

SPECIFICATIONS

Features
•
RJ-45 network connection
•
Easy to read, high visibility Red 2.5" or 4.0"
digits display hours, minutes and seconds
•
Selectable 12 or 24 hour format (jumper setting)
•
802.3af compatible
•
High Efficiency

INSTALLATION

FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at one's own expense.
VIP-D625, 6 Digit, 2.5" Display
VIP-D640, 6 Digit, 4.0" Display

DIMENSIONS/WEIGHT

•
VIP-D625 - 15.30" L x 3.00" W x 4.90" H
•
Weight: 3.85 LBS.
•
VIP-D640 - 24.50" L x 3.00" W x 6.75" H
•
Weight: 6 LBS.
Nominal Power Requirements
6.9W via 802.3af PoE
Environment
Temperature:
Humidity:
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified serv ice personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Packing List
Qty.
1
1
1
1
0 to 85% non-precipitating
DO NOT OPEN
Do not remove cover.
Item
VIP-D625 or VIP-D640
VSP Document
VIP Setup CD
Issue 1
Issue 1
0 to +40° C
