Advantech PCI-1712 Startup Manual

PCI-1712/1712L
1 MS/s, 12-bit, 16-ch High-Speed Multifunction card
Packing List
Before installation, please make sure that you have
received the following:
• PCI-1712, PCI-1712L card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information on this product,
please refer to the PCI-1712 User Manual on the
CD-ROM (PDF format).
CD:\Documents\Hardware Manuals\PCI\PCI-1712
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the
user is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental spec-
ifications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of
cable is available from Advantech. Please contact your local
supplier for ordering information.
Overview

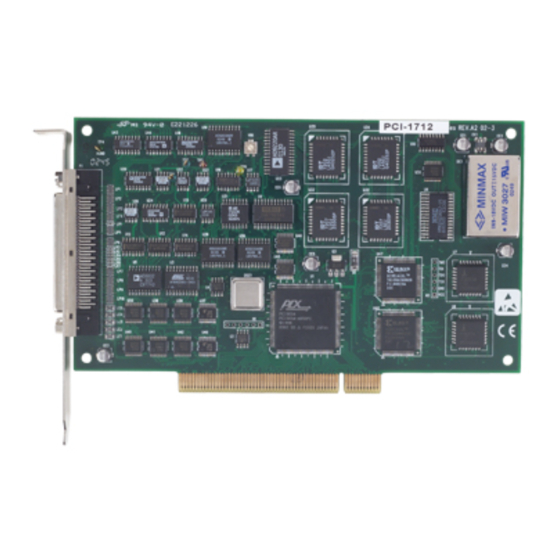

The PCI-1712/1712L is a powerful high-speed mul-
tifunction DAS card for PCI bus. It features a 1MHz
12-bit A/D converter, an on-board FIFO buffer
(storing up to 1K samples for A/D, and up to 32K
samples for D/A conversion). The PCI-1712/1712L
provides a total of up to 16 single-ended or 8 differ-
ential A/D input channels or a mixed combination, 2
12-bit D/A output channels, 16 digital input/output
channels, and 3 10MHz 16-bit multifunction counter
channels.PCI-1712/1712L provides specific func-
tions for different user requirments.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1712/1712L.
Part No.2003171210
1 Startup Manual
Specifications
Digital Input/Output
Input Channels
Number of Ports 2
Input Voltage
Output Voltage
Analog Iutput
Channels
Resolution
FIFO Size
Max. Sampling
Rate
Conversion
Time
Input range
and Gain List
Drift
Small Signal
Bandwidth for
PGA
Common Mode
Voltage
Max. Input
Voltage
Input Protect
Input
Impedance
Trigger Mode
Accuracy
External TTL
Trigger Input
External Ana-
log Trigger
Input
Clock Output
Trigger Output
1st Edition
June 2007
16 bi-directional
Low 0.8 V max.
High 2.0V min.
Low 0.5 V max. @ + 24 mA (sink)
High 2.4V min. @ - 15 mA (source)
16 single-ended or 8 differential or combi-
nation
12-bit
1K samples
Milti-channel, single gain: MS/s
Milti-channel, multi gain: 600kS/s
Milti-channel, multi gain, unipolar/bipolar:
400kS/s
500 ns
Gain 0.5 1 2
UnipolarN/A 0~10 0~5
Bipolar ±10 ±5 ±2.5 ±1.25 ±0.625
Gain 0.5 1 2
Zero(µV
±80 ±30 ±30
/°C)
Gain(pp
±30 ±30 ±30
m/°C)
Gain 0.5 1 2
Band- 4.0 4.0 2.0
width MHz MHz MHz
±11 V max. (operational)
±20 V
30 Vp-p
100 M Ω /10pF(Off); 100 M Ω /100pF(On)
Software, on-board programmable pacer
or external, pre-trigger, post-trigger, delay-
trigger, about-trigger
DNLE: ±1LSB
INLE: ±3LSB
Offset error: < 1 LSB
Gain 0.5 1 2
DC
Gain
error 0.15 0.03 0.03 0.05 0.1
(% FSR)
SNR: 68 dB
AC ENOB: 11 bits
THD: -75 dB typical
Low 0.8 V max.
High 2.0 V min.
Range -10V to + 10 V
Resolution 8-bit
Impedence 100 M Ω /10 pF typical
Low 0.5 V max.@ +24 mA
High 2.4 V min. @ -15 mA
Low 0.5 V max.@ +24 mA
High 2.4 V min. @ -15 mA
4 8
0~2.5 0~1.25
4 8
±30 ±30
±30 ±30
4 8
1.5 0.65
MHz MHz
4 8
