Advantech PCI-1714U Startup Manual

PCI-1714U/UL
Simultaneous 4-ch Analog Input Card
Packing List
Before installation, please make sure that you have
received the following:
• PCI-1714U, PCI-1714UL DA&C card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your dis-
tributor or sales representative immediately.
User Manual
For more detailed information on this product,
please refer to the PCI-1714U User Manual on the
CD-ROM (PDF format).
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the
user is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental spec-
ifications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of
cable is available from Advantech. Please contact your local
supplier for ordering information.
Overview

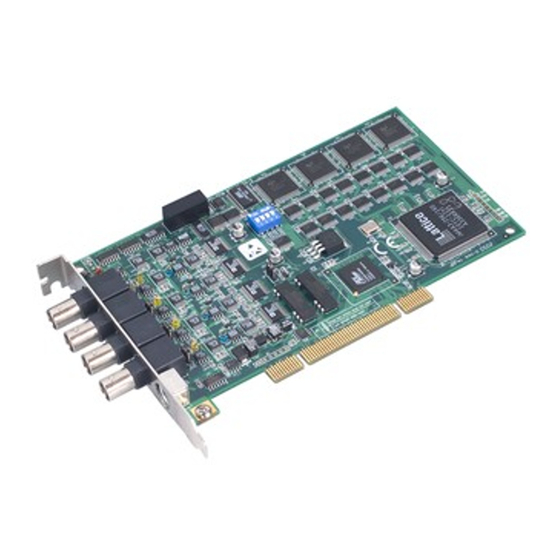

The PCI-1714U and PCI-1714UL are simultaneous 4-chan-
nel analog input cards with high sampling rates. They are
advanced-performance data acquisition cards based on 32-
bit PCI bus architecture. The maximum sampling rate of
PCI-1714U is up to 30 MS/s, and 10 MS/s for PCI-1714UL.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1714U/1714UL.
Part No. 2003171411
1 Startup Manual
Specifications

Analog Input

Channels
Resolution
FIFO Size
Max. Sampling
Rate
Input range and
Gain List
Drift
Small Signal Band-
width for PGA
Max. Input Voltage ±15V
Input Surge Protec-
tion
Input
Impedance
Trigger Mode
Accuracy
External Clock 1
External Clock 0
External Trigger 0 Logic level TTL (Low: 0.8 V max. High:
External Analog
Trigger Input
PCI-1714U: 30 MHz is only for FIFO depth of 32K.
PCI-1714UL: 10 MHz is only for FIFO depth of 8K.
2nd Edition
Feburary 2011
4 single-ended analog input channels
12-bit
PCI-1714U: 32K
PCI-1714UL: 8K
30MHz For PCI-1714U
10MHz For PCI-1714UL
Gain 1 2 5
Range ±5V ±2.5V ±1V
Gain 1 2 5
Zero (V / °C) ±200 ±100 ±40
Gain ±30 ±30 ±30
(ppm / °C)
Gain 1 2 5
Bandwidth 7MHz 7MHz 7MHz 7MHz
(-3dB)
30 Vp-p
50/1M/Hi Z jumper selectable /100pF
Software, pacer, post-trigger, pre-trigger,
delay-trigger, about-trigger
DC DNLE ±1LSB (No Missing
Codes:12 Bits
Guaranteed)
INLE ±2LSB
Offset Adjustable to
error ±1LSB
Gain Adjustable to
error ±1LSB
AC SINAD 66 dB (Hi Z)
S/ (N+D)
ENOB 10.67 bits (Hi Z)
THD -73 dB (Hi Z)
Logic level TTL (Low: 0.8 V max. High:
2.0V min.)
Input 50 ohms
impedance
Input DC
Coupled
Frequency Up to 10MHz
Logic level 5.0V peak to peak sin wave
Input Hi Z
impedance
Input cou- AC
pled
Frequency Up to 10MHz
2.0V min.)
Input Hi Z
impedance
Input DC
Coupled
Range By analog input range
Resolution 8-bit
Frequency Up to 1MHz
10
±0.5V
10
±20
±30
10
