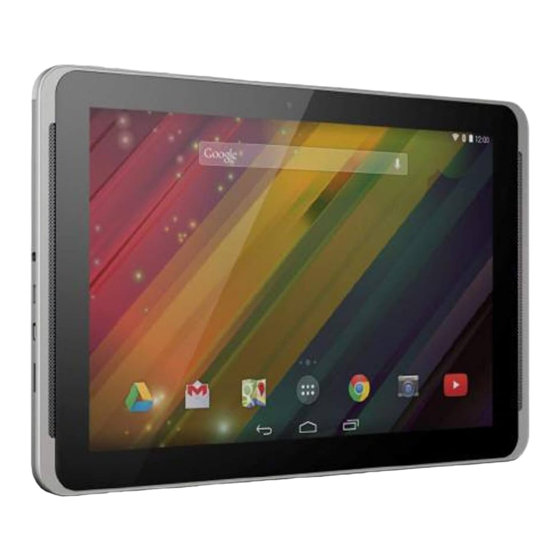

HP 10 Plus 2201 Tablet and HP 10
2101 Tablet
Maintenance and Service Guide
IMPORTANT! This document is intended for
HP authorized service providers only.

Advertising

   Summary of Contents for HP 10 Plus 2201

  • Page 1

    HP 10 Plus 2201 Tablet and HP 10 2101 Tablet Maintenance and Service Guide IMPORTANT! This document is intended for HP authorized service providers only.

  • Page 2

    By installing, copying, downloading, or otherwise using any software product preinstalled on this tablet, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy...

  • Page 3

    Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.

  • Page 4

    Safety warning notice...

  • Page 5: Table Of Contents

    Table of contents 1 Product description ......................1 2 External component identification ..................3 3 Illustrated parts catalog ....................4 Locating the tablet part number and serial number ............... 4 Tablet major components ......................5 Miscellaneous parts ........................7 Sequential part number listing ....................8 4 Removal and replacement preliminary requirements ............

  • Page 6: Table Of Contents

    Display panel cable ....................... 29 System board ........................32 6 Power cord set requirements ..................36 Requirements for all countries ....................36 Requirements for specific countries and regions ................. 36 7 Recycling ........................38 Index ..........................39...

  • Page 7: Product Description

    Product description Category Description HP 10 Plus 2201 HP 10 2101 Tablet Tablet Product Name HP 10 Plus 2201 Tablet × HP 10 2101 Tablet × Chipset/processor Allwinner A31 ARM Cortex-A7 quad core 1.0- × × GHz processor Graphics Mali400 MP2 ×...

  • Page 8

    Category Description HP 10 Plus 2201 HP 10 2101 Tablet Tablet Sensors Accelerometer × × ● G-sensor ● ● Wireless WLAN: 802.11 b/g/n, Miracast-compatible × × Ports Micro USB 2.0 with OTG support × × ● Micro SD Card Reader slot ●...

  • Page 9: External Component Identification

    External component identification Item Component Item Component Power button Micro USB port Volume control buttons Micro HDMI port Microphone Micro SD Card Reader slot Front-facing webcam Speakers Audio-out (headphone)/Audio-in (microphone) jack...

  • Page 10: Illustrated Parts Catalog, Locating The Tablet Part Number And Serial Number

    Illustrated parts catalog Locating the tablet part number and serial number The tablet part number (1) and serial number (2) are located on the tablet back cover. This information may be needed when travelling internationally or when contacting support. Chapter 3 Illustrated parts catalog...

  • Page 11: Tablet Major Components

    784326-001 adhesive) I/O bracket 784324-001 (10) Display panel cable: For use only on HP 10 Plus 2201 Tablet models 782650-001 For use only on HP 10 2101 Tablet models 782647-001 (11) System board equipped 16-GB eMMC system storage Tablet major components...

  • Page 12

    Equipped with an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor, and 791104-001 2.0-GB of system memory for use only on HP 10 Plus 2201 Tablet models Equipped with an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor, and 784330-001 2.0-GB of system memory for use on all tablet models...

  • Page 13: Miscellaneous Parts

    For use in the United Kingdom on all tablet models 747780-001 Tablet: HP 10 Plus 2201 Tablet equipped with a 10.1-in, 1920×1200, FHD, antiglare, 10-point 780486-001 MultiTouch, diagonal capacitive, wide-viewing angle, auto-rotate (selectable), tempered glass, LED backlight, display panel; an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor;...

  • Page 14: Sequential Part Number Listing

    5-V/3-A AC adapter for use in North America on all tablet models 745230-001 USB extension cable 747779-001 5-V/3-A AC adapter for use in Europe only on HP 10 Plus 2201 Tablet models 747780-001 5-V/3-A AC adapter for use in the United Kingdom on all tablet models 756038-001...

  • Page 15

    1.0-GB of system memory, and 16-GB eMMC system storage for use only on HP 10 2101 Tablet models 791104-001 System board equipped with an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor, 2.0-GB of system memory, and 16-GB eMMC system storage for use only on HP 10 Plus 2201 Tablet models Sequential part number listing...

  • Page 16: Removal And Replacement Preliminary Requirements, Tools Required, Service Considerations, Plastic Parts, Cables And Connectors

    Removal and replacement preliminary requirements Tools required You will need the following tools to complete the removal and replacement procedures: Flat-bladed screw driver ● Magnetic screw driver ● Phillips P0 screw driver ● Phillips P00 screw driver ● Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 17: Drive Handling, Grounding Guidelines, Electrostatic Discharge Damage

    Drive handling CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the tablet, damage to a drive, or loss of information, observe these precautions: Before removing or inserting a drive, shut down the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system.

  • Page 18

    CAUTION: To prevent damage to the tablet when you are removing or installing internal components, observe these precautions: Keep components in their electrostatic-safe containers until you are ready to install them. Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

  • Page 19: Packaging And Transporting Guidelines, Workstation Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations. ●...

  • Page 20: Equipment Guidelines

    Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps ● with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 21: Removal And Replacement Procedures, Back Cover

    Accessing these components can damage the tablet or void the warranty. NOTE: HP continually improves and changes product parts. For complete and current information on supported parts for the tablet/keyboard, go to http://partsurfer.hp.com, select the country or region, and then follow the on-screen instructions.

  • Page 22: Battery

    WARNING! To reduce potential safety issues, use only the battery provided with the tablet, a replacement battery provided by HP, or a compatible battery purchased from HP. CAUTION: Removing a battery that is the sole power source for the tablet can cause loss of information.

  • Page 23

    Remove the battery: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Release the tape (1) that secures the speaker and antenna cables to the battery. Pull the battery adhesive release tabs (2) as far as they will go.

  • Page 24: Speakers

    Reverse this procedure to install the battery. Speakers Description Spare part number Speaker Kit (includes left and right speakers and cables) 784328-001 Before removing the speakers, follow these steps: Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system.

  • Page 25: Wifi Antenna

    Unsolder the right speaker cables (2) from the contact points on the system board. NOTE: When installing the speakers, the right speaker red cable and the left speaker white cable should be soldered to the system board “positive” terminals. The right and left speaker black cables should be soldered to the system board “negative”...

  • Page 26

    Remove the Wifi antenna: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Unsolder the Wifi antenna cable (1) from the contact point on the system board. Release the tape (2) that secures the Wifi antenna cable to the battery.

  • Page 27: Gps Antenna

    Detach the Wifi antenna transceiver (3) from the display panel assembly. (The Wifi antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the Wifi antenna cable and transceiver. Reverse this procedure to install the Wifi antenna. GPS antenna NOTE: The GPS antenna is included in the Antenna Kit, spare part number 784327-001.

  • Page 28

    Remove the GPS antenna: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Unsolder the GPS antenna cable (1) from the contact point on the system board. Release the tape (2) that secures the GPS antenna cable to the battery.

  • Page 29: Rear-facing Webcam

    Detach the GPS antenna transceiver (3) from the display panel assembly. (The GPS antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the GPS antenna cable and transceiver. Reverse this procedure to install the GPS antenna. Rear-facing webcam Description Spare part number...

  • Page 30

    Remove the rear-facing webcam: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Release the zero insertion force (ZIF) connector (1) to which the rear-facing webcam cable is attached, and then disconnect the rear-facing webcam cable from the system board.

  • Page 31: Front-facing Webcam

    Detach the rear-facing webcam (2) from the display panel assembly. (The rear-facing webcam is attached to the display panel assembly with double-sided adhesive.) Remove the rear-facing webcam and cable. Reverse this procedure to install the rear-facing webcam. Front-facing webcam Description Spare part number 2.0-MP, fixed-focus, HD front-facing webcam (includes cable and double-sided adhesive) 782648-001...

  • Page 32

    Remove the front-facing webcam: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Release the ZIF connector (1) to which the front-facing webcam cable is attached, and then disconnect the front-facing webcam cable from the system board.

  • Page 33

    Detach the front-facing webcam (2) from the display panel assembly. (The front-facing webcam is attached to the display panel assembly with double-sided adhesive.) Remove the front-facing webcam and cable. Reverse this procedure to install the front-facing webcam. Front-facing webcam...

  • Page 34: Microphone

    Microphone Description Spare part number Microphone (includes cable and double-sided adhesive) 756038-001 Before removing the microphone, follow these steps: Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. Disconnect the power from the tablet by unplugging the power cord from the tablet.

  • Page 35: Display Panel Cable

    Reverse this procedure to install the microphone. Display panel cable Description Spare part number For use only on HP 10 Plus 2201 Tablet models 782650-001 For use only on HP 10 2101 Tablet models 782647-001 Before removing the display panel cable, follow these steps: Turn off the tablet.

  • Page 36

    (3) Red battery cable NOTE: Steps 2 and 3 apply to HP 10 Plus 2201 Tablet models. See steps 4 and 5 for display panel cable removal instructions for and HP 10 2101 Tablet models. Release the system board ZIF connector (1) to which the display panel cable is attached, and then disconnect the display panel cable from the system board.

  • Page 37

    Remove the display panel cable (3). NOTE: Steps 4 and 5 apply to HP 10 2101 Tablet models. See steps 2 and 3 for display panel cable removal instructions for HP 10 Plus 2201 Tablet models. Release the system board ZIF connector (1) to which the display panel cable is attached, and then disconnect the display panel cable from the system board.

  • Page 38: System Board

    Equipped with an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor, and 2.0-GB of 791104-001 system memory for use only on HP 10 Plus 2201 Tablet models Equipped with an Allwinner A31 ARM Cortex-A7 quad core 1.0-GHz processor, and 2.0-GB of...

  • Page 39

    Remove the system board: Unsolder the battery cables from the system board in the following sequence: (1) Black battery cable (2) White battery cable (3) Red battery cable Disconnect the rear-facing webcam cable (1) from the system board. Disconnect the front-facing webcam cable (2) from the system board. Unsolder the microphone cables (3) from the contact points on the system board.

  • Page 40

    Unsolder the Wifi antenna cable (5) from the contact point on the system board. Unsolder the left speaker cables (1) from the contact points on the system board. Unsolder the right speaker cables (2) from the contact points on the system board. Release the system board ZIF connector (3) (varying by tablet model) to which the display panel cable is attached, and then disconnect the display panel cable from the system board.

  • Page 41

    Remove the I/O bracket (2). The I/O bracket is available using spare part number 784324-001. Remove the system board (3). Reverse this procedure to install the system board. System board...

  • Page 42: Power Cord Set Requirements, Requirements For All Countries, Requirements For Specific Countries And Regions

    Power cord set requirements The wide-range input feature of the tablet permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC. The 3-conductor power cord set included with the tablet meets the requirements for use in the country or region where the equipment is purchased.

  • Page 43

    Country/region Accredited agency Applicable note number Germany Italy Japan METI The Netherlands KEMA Norway NEMKO The People's Republic of China South Korea Sweden CEMKO Switzerland Taiwan BSMI The United Kingdom The United States The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

  • Page 44: Recycling

    Follow the local laws and regulations in your area for battery disposal. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/recycle. Chapter 7 Recycling...

  • Page 45: Index

    Index drives audio-out 3 AC adapter, spare part numbers precautions 11 headphone 3 7, 8 preventing damage 11 microphone 3 antenna removal 19, 21 electrostatic discharge 11 memory, product description 1 spare part number 5, 8, 19, equipment guidelines 14 microphone location 3 Antenna Kit, spare part number...

  • Page 46

    ports 2 power requirements 2 webcam processors 1 removal 23, 25 product name 1 spare part numbers 5, 8, 23, sensors 2 serviceability 2 Wifi antenna storage 1 removal 19 video 1 spare part number 5, 8, 19 wireless 2 wireless, product description 2 product name 1 workstation guidelines 13...
