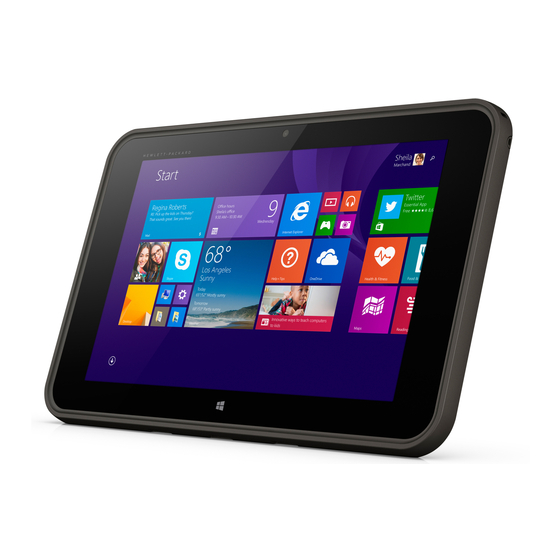

HP Pro Slate 10 EE G1
HP Pro Tablet 10 EE G1
Maintenance and Service Guide
IMPORTANT! This document is intended for
HP authorized service providers only.

Advertisement

Table of Contents
loading

Summary of Contents for HP Pro Slate 10 EE G1

  • Page 1 HP Pro Slate 10 EE G1 HP Pro Tablet 10 EE G1 Maintenance and Service Guide IMPORTANT! This document is intended for HP authorized service providers only.
  • Page 2 HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the...
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice...
  • Page 5: Table Of Contents

    5 Removal and replacement procedures ......................22 Tablet component replacement procedures ....................... 22 HP Touchpoint Manager software (HP Pro Slate 10 EE G1 tablet models only) ..........22 Unlocking the device and disabling Always On Remote Management (HP Pro Tablet 10 EE G1 tablet models only) ................................
  • Page 6 Downloading a BIOS update ................... 48 Changing the boot order using the f9 prompt .................. 49 7 Using HP PC Hardware Diagnostics (UEFI) in Windows 10 ................. 50 Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ..............50 8 Using HP PC Hardware Diagnostics (UEFI) in Windows 8.1 ................
  • Page 7 13 Statement of memory volatility ........................62 Nonvolatile memory usage ..........................64 Questions and answers ............................66 Using HP Sure Start (select models only) ......................67 14 Power cord set requirements ........................68 Requirements for all countries ..........................68 Requirements for specific countries and regions ....................68 15 Recycling ..............................
  • Page 8 viii...
  • Page 9: Product Description

    Product description Category Description HP Pro Slate 10 EE G1 HP Pro Tablet 10 EE G1 Product Name HP Pro Slate 10 EE G1 √ HP Pro Tablet 10 EE G1 √ Processor Intel® Atom™ Z3735F 1.83-GHz √ √ processor (quad core) Intel Atom Z3735G 1.83-GHz...
  • Page 10 Category Description HP Pro Slate 10 EE G1 HP Pro Tablet 10 EE G1 Audio and video (continued) 2.0-MP, fixed-focus front- √ √ facing webcam Sensor Accelerometer √ √ eCompass Wireless networking Integrated WLAN + Bluetooth √ combination: 802.11 a\b\g\n 2×2 (Foxconn T77H462, Broadcom BCM43241) with two antennas;...
  • Page 11 Category Description HP Pro Slate 10 EE G1 HP Pro Tablet 10 EE G1 Supports a 18-W (12-V/1.5-A) AC adapter with DC plug and localized cable plug support Operating system Preinstalled: Android 4.4.4 √ Preinstalled: √ ● Win 10 Home 32 Chinese Market CPPP (available only for the People’s...
  • Page 12 Category Description HP Pro Slate 10 EE G1 HP Pro Tablet 10 EE G1 ● Windows 8.1 32-bit with Bing for Tablets Chinese (only available in the People’s Republic of China) Windows 8.1 32-bit with ● Bing for Tablets Emerging Markets ●...
  • Page 13: External Component Identification

    External component identification Item Component Item Component Power button (10) Micro SD Card Reader slot Microphone (11) Micro SIM slot Front-facing webcam (12) Micro HDMI jack WLAN antenna (13) Micro USB 2.0 port Rear-facing webcam (14) Power light WWAN antenna (15) Power button Volume up button...
  • Page 14: Illustrated Parts Catalog

    Illustrated parts catalog Locating the serial number, product number, and model number The tablet serial number and product number of are located on the tablet back cover. This information may be needed when travelling internationally or when contacting support. Chapter 3 Illustrated parts catalog...
  • Page 15: Tablet Major Components

    Tablet major components Item Component Spare part number Back cover (includes rear-facing webcam lens and shielding) 802824-001 Battery, 2-cell, 28.49-WHr, LI (includes cable, stylus pen holder, and double- 802833-001 sided adhesive) 2.0-MP front-facing webcam (includes cable and indicator LED) 802826-001 Sensor board (does not include cable) 802828-001 NOTE:...
  • Page 16 Display panel cable – included in the Cable Kit, spare part number 802835-001. (12) System board: For use only on HP Pro Slate 10 EE G1 tablet models (all system boards equipped with the Android 4.4.4 operating system): Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem 802837-001 with UMA memory, 2.0-GB of system memory, 16-GB of system storage, NFC, and...
  • Page 17 Item Component Spare part number Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem 803370-501 with UMA memory, 2.0-GB of system memory, 32-GB of system storage, and the Windows 8 Standard operating system Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem 803370-001 with UMA memory, 2.0-GB of system memory, 32-GB of system storage, and a non- Windows 8 operating system...
  • Page 18 802829-001 (14) Touch Screen display panel assembly (includes Touch Screen board and cables and microphone) 10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE 803619-001 G1 tablet models equipped with WWAN capability 10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE...
  • Page 19: Miscellaneous Parts

    803378-001 NFC antenna 802832-001 NFC module (includes cable) 802831-001 Screw Kit: For use only on HP Pro Slate 10 EE G1 tablet models 802847-001 For use only on HP Pro Tablet 10 EE G1 tablet models 805304-001 Stylus pen 802822-001...
  • Page 20 MU736 HS3110 Gen HSPA+m.2 WWAN module with GPS for use only on HP Pro Tablet 10 EE G1 tablet models 801160-005 Huawei MU736 3G HSPA+M.2 WWAN module with GPS for use only on HP Pro Slate 10 EE G1 tablet models 802800-001 Touch Screen display panel assembly (includes Touch Screen board and cables and microphone), 10.1-in,...
  • Page 21 802849-001 Touch Screen display panel assembly (includes Touch Screen board and cables and microphone), 10.1-in, L10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE G1 tablet models not equipped with WWAN capability 803370-001 System board equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem...
  • Page 22 803619-001 Touch Screen display panel assembly (includes Touch Screen board and cables and microphone), 10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE G1 tablet models equipped with WWAN capability Chapter 3 Illustrated parts catalog...
  • Page 23 System board equipped with an Intel Atom Z3735G 1.83-GHz processor (quad core), a graphics subsystem with UMA memory, 2.0-GB of system memory, 32-GB of system storage, and NFC and WWAN capability, for use only on HP Pro Slate 10 EE G1 tablet models (all system boards equipped with the Android 4.4.4 operating system) 808075-001 System board equipped with an Intel Atom Z3735G 1.83-GHz processor (quad core), a graphics subsystem...
  • Page 24 Spare part number Description 811345-001 Whole unit replacement tablet - L2J89AA ABA, , for use in the United States. 811348-001 System board equipped with an Intel Atom Z3735G 1.83-GHz processor (quad core), a graphics subsystem with UMA memory, 2-GB of system memory, 16-GB of system storage, GPS capability, for use in North America 811349-001 System board equipped with an Intel Atom Z3735G 1.83-GHz processor (quad core), a graphics subsystem...
  • Page 25 Spare part number Description 821145-001 Whole unit replacement tablet - M4Z25PA ACJ, for use in India 821146-001 Whole unit replacement tablet - M4Z26PA AB4, for use in India 821147-001 Whole unit replacement tablet - M4Z27PA AB0, for use in Taiwan 821148-001 Whole unit replacement tablet - M4Z28PA AB4, for use in Singapore 825083-001...
  • Page 26: Removal And Replacement Preliminary Requirements

    Removal and replacement preliminary requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Magnetic screw driver ● Phillips P0 screw driver Plastic case utility tool ● Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
  • Page 27: Grounding Guidelines

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions. A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.
  • Page 28: Packaging And Transporting Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
  • Page 29 Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.
  • Page 30: Removal And Replacement Procedures

    If a supported device is reset to its factory state while the device is enrolled with an HP Touchpoint Manager account, then an IT administrator is alerted that the device may have been stolen.
  • Page 31: Back Cover

    Back cover (includes rear-facing webcam lens and shielding) 802824-001 Touch Screen display panel assembly (includes Touch Screen board, cables, and microphone) 10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE G1 803619-001 tablet models equipped with WWAN capability 10.1-in, LED, WUXGA, UWGA, AG display panel assembly for use only on HP Pro Slate 10 EE G1...
  • Page 32: Battery

    WARNING! To reduce potential safety issues, use only the battery provided with the tablet, a replacement battery provided by HP, or a compatible battery purchased from HP. CAUTION: Removing a battery that is the sole power source for the tablet can cause loss of information.
  • Page 33: Wwan Module

    Description Spare part number Huawei MU736 HSPA+M.2 with GPS for use only on HP Pro Slate 10 EE G1 tablet models 801160-005 MU736 HS3110 Gen HSPA+m.2 with GPS for use only on HP Pro Tablet 10 EE G1 tablet models...
  • Page 34 CAUTION: Removing a battery that is the sole power source for the tablet can cause loss of information. To prevent loss of information, save your work or shut down the tablet through Windows before removing the battery. Remove the WWAN module: Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
  • Page 35: Rear-Facing Webcam

    Rear-facing webcam Description Spare part number 5.0-MP, HD rear-facing webcam with auto-focus (includes cable) 802825-001 Before removing the rear-facing webcam, follow these steps: Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system.
  • Page 36: Wireless Antenna

    Antenna Kit, includes WWAN antenna auxiliary and main cables and transceivers and WLAN antenna auxiliary and main cables and transceivers For use only on HP Pro Slate 10 EE G1 tablet models 803379-001 For use only on HP Pro Tablet 10 EE G1 tablet models...
  • Page 37 Detach the WWAN auxiliary antenna transceiver (3) from the display panel assembly. (The WWAN auxiliary antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the WWAN auxiliary antenna cable and transceiver. Disconnect the WWAN main antenna cable (1) from the WWAN module main terminal. Release the WWAN main antenna cable from the retention clips (2) built into the display panel assembly.
  • Page 38 Detach the WWAN main antenna transceiver (3) from the display panel assembly. (The WWAN main antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the WWAN main antenna cable and transceiver. Disconnect the WLAN main antenna cable (1) from the WLAN module main terminal. Release the WLAN main antenna cable from the retention clips (2) built into the display panel assembly.
  • Page 39 Detach the WLAN main antenna transceiver (3) from the display panel assembly. (The WLAN main antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the WLAN main antenna cable and transceiver. Disconnect the WLAN auxiliary antenna cable (1) from the WLAN module auxiliary terminal. Wireless antenna...
  • Page 40: Sensor Board

    Detach the WLAN auxiliary antenna transceiver (2) from the display panel assembly. (The WLAN auxiliary antenna transceiver is attached to the display panel assembly with double-sided adhesive.) Remove the WLAN auxiliary antenna cable and transceiver. Reverse this procedure to install the wireless antennas. Sensor board Description Spare part number...
  • Page 41: Display Panel Cable

    Release the ZIF connector (1) to which the sensor board cable is attached, and then disconnect the sensor board cable from the system board. Detach the sensor board cable (2) from the display panel assembly. (The sensor board cable is attached to the display panel assembly with double-sided adhesive.) Detach the sensor board (3) from the display panel assembly.
  • Page 42: Power Connector Cable

    Release the ZIF connector (1) to which the display panel cable cable is attached, and then disconnect the display panel cable from the display panel assembly. Release the ZIF connector (2) to which the display panel cable is attached, and then disconnect the display panel cable from the system board.
  • Page 43: Front-Facing Webcam

    Disconnect the power connector cable (1) from the system board. Release the power connector cable from the retention clip (2) built into the display panel assembly. Remove the two Phillips PM2.0×4.1 screws (3) that secure the power connector to the display panel assembly.
  • Page 44: Transfer Board

    Release the ZIF connector (1) to which the front-facing webcam cable is attached, and then disconnect the front-facing webcam cable from the system board. Remove the Phillips PM2.0×4.1 screw (2) that secures the front-facing webcam to the display panel assembly. Remove the front-facing webcam (3).
  • Page 45 Detach the Touch Screen board (1) from the display panel assembly. (The Touch Screen board is attached to the display panel assembly with double-sided adhesive.) Release the ZIF connector (2) to which the transfer board cable is attached, and then disconnect the transfer board cable from the system board.
  • Page 46: Speaker

    Speaker Description Spare part number Speaker (includes cable) 802830-001 Before removing the speaker, follow these steps: Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. Disconnect the power from the tablet by unplugging the power cord from the tablet.
  • Page 47 Remove the speaker (5). Remove the speaker and cable. Reverse this procedure to install the speaker. Speaker...
  • Page 48: System Board

    Spare part number For use only on HP Pro Slate 10 EE G1 tablet models (all system boards equipped with the Android 4.4.4 operating system): Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem with UMA 802837-001 memory, 2.0-GB of system memory, 16-GB of system storage, NFC, and WWAN capability...
  • Page 49 Description Spare part number Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem with UMA 803373-601 memory, 2.0-GB of system memory, 64-GB of system storage, WWAN capability, and the Windows 8 Professional operating system Equipped with an Intel Atom Z3735F 1.83-GHz processor (quad core), a graphics subsystem with UMA 803373-501 memory, 2.0-GB of system memory, 64-GB of system storage, WWAN capability, and the Windows 8 Standard operating system...
  • Page 50 Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. Disconnect the power from the tablet by unplugging the power cord from the tablet. Disconnect all external devices from the tablet.
  • Page 51 Disconnect the following cables from the system board: (1) Transfer board cable (see Transfer board on page (2) Touch Screen board cable (3) Power connector cable (see Power connector cable on page (4) Display panel cable (see Display panel cable on page (5) Speaker cable (see Speaker on page Remove the six Phillips PM2.0×4.1 screws (1) that secure the system board to the...
  • Page 52: I/O Cover

    Remove the system board (2). Reverse this procedure to install the system board. I/O cover Description Spare part number I/O cover 802821-001 Before removing the I/O cover, follow these steps: Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system.
  • Page 53 Remove the I/O cover. Reverse this procedure to install the I/O cover. I/O cover...
  • Page 54: Using Computer Setup (Bios) In Windows 10

    ▲ Start Computer Setup. ● Computers or tablets with keyboards: ▲ Turn on or restart the computer, and when the HP logo appears, press to enter Computer Setup. ● Tablets without keyboards: Turn off the tablet. Press the power button in combination with the volume down button until ▲...
  • Page 55: Restoring Factory Settings In Computer Setup

    Select the Save icon in the lower-right corner of the screen, and then follow the on-screen instructions. – or – Select Main, select Save Changes and Exit, and then press enter. Your changes go into effect when the computer restarts. Restoring factory settings in Computer Setup NOTE: Restoring defaults will not change the hard drive mode.
  • Page 56: Updating The Bios

    Do not shut down the computer or initiate Sleep. Do not insert, remove, connect, or disconnect any device, cable, or cord. Type support in the taskbar search box, and then select the HP Support Assistant app. – or – Select the question mark icon in the taskbar.
  • Page 57: Changing The Boot Order Using The F9 Prompt

    To dynamically choose a boot device for the current startup sequence, follow these steps: Access the Boot Device Options menu: ● Computers or tablets with keyboards: Turn on or restart the computer, and when the HP logo appears, press to enter the Boot ▲ Device Options menu.
  • Page 58: Using Hp Pc Hardware Diagnostics (Uefi) In Windows 10

    Using HP PC Hardware Diagnostics (UEFI) in Windows 10 HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.
  • Page 59 Download any version of UEFI for a specific product: Go to http://www.hp.com/support, and then select your country. The HP Support page is displayed. Click Drivers & Downloads. In the text box, enter the product name, and then click Go. – or –...
  • Page 60: Using Hp Pc Hardware Diagnostics (Uefi) In Windows 8.1

    Using HP PC Hardware Diagnostics (UEFI) in Windows 8.1 HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the tablet hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.
  • Page 61: Specifications

    The tablet operates on DC power, which can be supplied by an AC or a DC power source. The AC power source must be rated at 100— 240 V, 50/60 Hz, 0.3-1.0 A. NOTE: The HP 12V dc @ 1.5A - 18W adapter included with your tablet is recommended for charging the tablet. Temperature Operating 5°C to 35°C...
  • Page 62: 10 Backup And Recovery In Windows 10

    70% charged before you start the process. NOTE: For detailed instructions on various backup and restore options, see the Get started app. In case of system instability, HP recommends that you print the recovery procedures and save them for later use. NOTE: Windows includes the User Account Control feature to improve the security of your tablet.
  • Page 63: Backing Up Your Information

    Backing up your information Recovery after a system failure is as good as your most recent backup. You should create system repair media and your initial backup immediately after initial system setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup.
  • Page 64: Changing The Boot Device Order

    Press the power button and when the Press and hold the Volume down button or the ESC key on external Keyboard to enter Startup Menu message displays, press the volume down button. The Startup menu is displayed. Tap F11 HP Recovery. Select Troubleshoot, select Advanced Options, and then select Startup Repair. Follow the on-screen instructions.
  • Page 65: 11 Backup And Recovery In Windows 8.1

    For detailed instructions on various backup and restore options, perform a search for these topics in Windows Help and Support. In case of system instability, HP recommends that you print the recovery procedures and save them for later use. NOTE: Windows includes the User Account Control feature to improve the security of your tablet.
  • Page 66: Performing A System Recovery

    Performing a system recovery In case of system failure or instability, the tablet provides the following tools to recover your files: ● Windows recovery tools: You can use Windows Backup and Restore to recover information you have previously backed up. You can also use Windows Automatic Repair to fix problems that might prevent Windows from starting correctly.
  • Page 67: 12 Backup And Recovery In Android Lollipop

    Manually updating apps, widgets, and the operating system HP recommends that you update your apps, widgets, and the operating system on a regular basis to the latest versions. Updates can resolve issues and bring new features and options to your tablet. Technology is always changing, and updating apps, widgets, and the operating system allows your tablet to run the latest technology available.
  • Page 68: Factory Data Reset

    Factory data reset Resetting with the tablet turned on If the tablet starts normally, and if you are able to sign in to the owner account (the first account added to the tablet), follow the steps in this section. To reset all settings and delete all data on the tablet: Swipe down twice from the top edge, and then touch the Settings icon Under Personal, touch Back up &...
  • Page 69: Starting Up Using The Recovery Menu

    Before performing the following procedure, plug in the AC adapter for your tablet, if one has been provided. Download the latest operating system restore image for your tablet. Go to http://www.hp.com/support, and follow the on-screen instructions to select your country and your product. Follow the on-screen instructions to access your Android operating system software.
  • Page 70: 13 Statement Of Memory Volatility

    Intel-based and AMD-based system boards contain nonvolatile memory subcomponents as originally shipped from HP, assuming that no subsequent modifications have been made to the system and assuming that no applications, features, or functionality have been added to or installed on the system.
  • Page 71 Reboot the system. If the system has a Trusted Platform Module (TPM) and/or fingerprint reader, one or two prompts will appear—one to clear the TPM and the other to Reset Fingerprint Sensor; press or tap to accept or to reject. Remove all power and system batteries for at least 24 hours.
  • Page 72: Nonvolatile Memory Usage

    Code is updated when the memory and is available configuration system BIOS is updated. on the HP website; go to data. Configuration data and http://www.hp.com/ settings are input using the support, and select your Computer Setup (BIOS) or a country.
  • Page 73 Fingerprint Reader 512 KByte Stores Fingerprint reader memory is Only a digitally signed flash fingerprint programmed by user application can make the templates. enrollment in HP ProtectTools call to write to the flash. Security Manager. Nonvolatile memory usage...
  • Page 74: Questions And Answers

    Questions and answers How can the BIOS settings be restored (returned to factory settings)? IMPORTANT: Restore defaults does not securely erase any data on your hard drive. See question and answer 6 for steps to securely erase data. Restore defaults does not reset the Customer Secure Boot key. See question and answer 7 for information about resetting the key.
  • Page 75: Using Hp Sure Start (Select Models Only)

    BIOS to its previously safe state, without user intervention. Those select computer models ship with HP Sure Start configured and enabled. HP Sure Start is configured and already enabled so that most users can use the HP Sure Start default configuration. The default configuration can be customized by advanced users.
  • Page 76: 14 Power Cord Set Requirements

    14 Power cord set requirements The wide-range input feature of the tablet permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC. The 3-conductor power cord set included with the tablet meets the requirements for use in the country or region where the equipment is purchased.
  • Page 77 Country/region Accredited agency Applicable note number Sweden CEMKO Switzerland Taiwan BSMI The United Kingdom The United States The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used. The flexible cord must be Type SPT-3 or equivalent, No.
  • Page 78: 15 Recycling

    Follow the local laws and regulations in your area for battery disposal. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/recycle.
  • Page 79: Index

    5 description 3 HDMI jack 5 headphone jack 5 Cable Kit, spare part number 11, 12 packaging guidelines 20 HP PC Hardware Diagnostics (UEFI) cables, service considerations 18 plastic parts, service using 50 Card Reader slot 5 considerations 18...
  • Page 80 USB 2.0 port 5 options 55 USB legacy support 46 Recovery 58 recovery media creating 54 video, product description 1, 2 creating using HP Recovery volume down button 5 Manager 54 volume up button 5 Refresh 58 reset 60 webcam...
