Summary of Contents for Kramer Galil 4-C
-
Page 1: User Manual

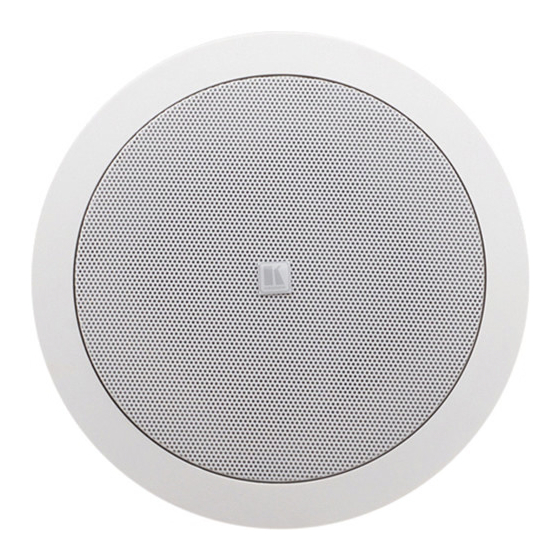

K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Galil 4-C (SPK-C413) Closed-back Ceiling Speaker P/N: 2900-300344 Rev 1... -
Page 3: Table Of Contents
Painting the Speaker Technical Specifications Figures Figure 1: Galil 4-C Closed-back Ceiling Speaker in a Boardroom Setup Figure 2: Galil 4-C Closed-back Ceiling Speaker Figure 3: Closed-back Ceiling Speaker Schematic Diagram Figure 4: Mounting the Galil 4-C Closed-back Ceiling Speaker... -
Page 4: Introduction
Restaurants and cafes Boutiques and shops Boardrooms and meeting rooms Classrooms and lecture venues Galil 4-C is designed for indoor dry locations and is suitable for use in air handling spaces (plenum spaces). Galil 4-C Introduction... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
The Galil 4-C Closed-back Ceiling Speaker consists of a pair of high performance closed back speakers. Mount your Galil 4-C speakers to the ceiling in one of two ways: either directly onto the ceiling or, for added protection, secure the speakers... -
Page 8: Your Galil 4-C Closed-Back Ceiling Speaker
(one shown) This table defines the ceiling mounting kit items: Four Two ceiling Two pairs of tile rails – support support rings (C-ring) – one ring one of a pair screws shown shown Galil 4-C Your Galil 4-C Closed-back Ceiling Speaker... -
Page 9: Figure 3: Closed-Back Ceiling Speaker Schematic Diagram
When this is the case, the speakers will need additional support. Figure 3 shows a schematic diagram of the Closed-back ceiling speaker: Figure 3: Closed-back Ceiling Speaker Schematic Diagram Galil 4-C Your Galil 4-C Closed-back Ceiling Speaker... -
Page 10: Installing The Galil 4-C
Installing the Galil 4-C This section explains how to install the Galil 4-C closed-back ceiling speakers, that is: Choosing the best place to locate your speakers (see Section 5.1) Cutting the ceiling tile (see Section 5.2) Mounting the speakers (see Section 5.3) -
Page 11: Mounting The Galil 4-C
To mount the closed-back ceiling speakers, do the following: 1. Place the C-ring over the hole cut in the ceiling tile (on the “ceiling” side). Place it around the hole so that the tabs are located in parallel to the tile edges. Galil 4-C Installing the Galil 4-C... -
Page 12: Figure 4: Mounting The Galil 4-C Closed-Back Ceiling Speaker
Screws Ceiling Tile Figure 4: Mounting the Galil 4-C Closed-back Ceiling Speaker 2. Place the tile rails on the tile and snap them into the two tabs on the C-ring. Align the rails so that the ends extend over the T-channel grid. -
Page 13: Figure 5: Plugging And Securing The Cable
9. If required, you can further secure the speaker by connecting the speaker support ring to an independent secure anchor point. 10. Adjust each speaker to the appropriate tap setting before installing the grille (see Figure Galil 4-C Installing the Galil 4-C... -
Page 14: Setting Up An Array Installation
Setting up an Array Installation When installing Galil 4-C in an array installation layout, you have to define the distance between speakers as well as the layout pattern (square or hexagonal). The distance between speakers is set according to the speakers’ dispersion angle, the uniformity of the coverage desired and the budget. -
Page 15: Figure 8: Square Layout
Figure 9: Hexagonal Layout You can set the power on each speaker to get the desired power level in different installation areas. Figure 10 shows an example of parallel wiring in a square array installation: Galil 4-C Installing the Galil 4-C... - Page 16 Figure 10: Square Layout Parallel Wiring Galil 4-C Installing the Galil 4-C...
-
Page 17: Painting The Speaker
When painting after installation: Use the circle that you cut out of the template as a paint mask After you finish painting, remove the paint mask Galil 4-C Installing the Galil 4-C... -
Page 18: Technical Specifications
Mounting depth: 10.7cm (4.2”) ACCESSORIES: Installation bracket, safety cord attached to grill, ceiling mounting kit, cutout template COLORS: Available in white Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Galil 4-C Technical Specifications... - Page 20 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
