Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: SPK-OCA508 On-Wall Speakers... -
Page 2: Table Of Contents
Figure 1: Active On-Wall Speakers in a Conference Room Setup Figure 2: Active On-Wall Speakers in a Home Theater Setup Figure 3: SPK-OCA508 Active Speaker Figure 4: Connecting the Speakers Tables Table 1: SPK-OCA508 Features (for the Active Speaker) Table 2: Technical Specifications of the SPK-OCA508... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Overview
• A power selector for using 115 or 240V and auto-power off The SPK-OCA508 can be mounted indoors on the wall, vertically or horizontally. The mounting brackets are made of hardened steel that attach to each speaker, letting you rotate each speaker to the left or right. -
Page 5: Figure 1: Active On-Wall Speakers In A Conference Room Setup
Overview Figure 1: Active On-Wall Speakers in a Conference Room Setup Figure 2: Active On-Wall Speakers in a Home Theater Setup... -
Page 6: Obtaining The Best Performance
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances and position your Kramer SPK-OCA508 away from moisture, excessive sunlight and dust Your SPK-OCA508 Figure 3... -
Page 7: Installing The Speakers

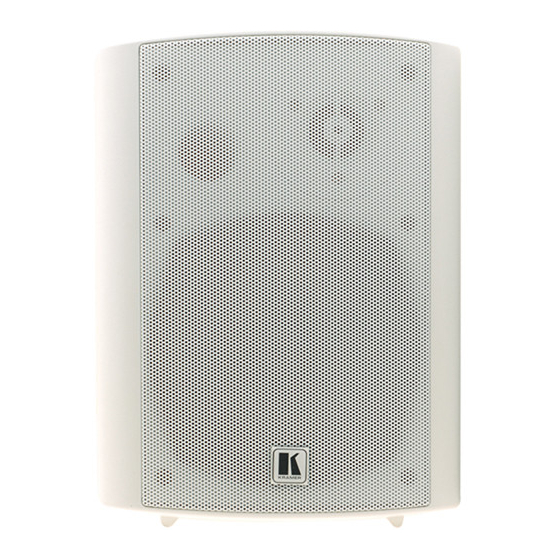

Installing the Speakers Table 1: SPK-OCA508 Features (for the Active Speaker) Feature Function VOLUME Button Rotate the button to adjust the audio volume LINE INPUT 3.5mm Mini Connector Connect the audio source to either connector 3-pin Terminal Block LOOP OUTPUT 3.5mm Mini... -
Page 8: Installing The Speaker Wires
Mark the location of the mounting holes Screw the mounting screws into the mounting holes Slide the mounting bracket over the mounting screws so that the mounting bracket is secured to the surface 1 Not included in the package KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Table 2 includes the technical specifications of the SPK-OCA508: Table 2: Technical Specifications of the SPK-OCA508 INPUT: Line level stereo audio on a 3.5mm mini connector and terminal block connector OUTPUTS: 1 speaker (to connect to the external passive speaker) 1 active sub-woofer on a 3.5mm mini connector... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
