Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Galil 8-CO Open-back Ceiling Speakers P/N: 2900-300394 Rev 2... -
Page 3: Table Of Contents
Painting the Speaker Technical Specifications Figures Figure 1: Open-back Ceiling Speakers in a Boardroom Setup Figure 2: Galil 8-CO Open-back Ceiling Speakers Figure 3: Position Mounting Tab Figure 4: Adjust Tap Selector Figure 5: Open-back Ceiling Speaker Schematic Pinout Diagram... -
Page 4: Introduction
Speakers, which are ideal for the following typical applications: Presentation venues Training rooms Conference rooms Hotel lobbies Educational classrooms Galil 8-CO is designed for indoor dry locations and is suitable for use in air handling spaces (plenum spaces). Galil 8-CO - Introduction... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Overview
Overview The Galil 8-CO speakers include a pair of high performance Open-back Ceiling speakers that can be mounted on the ceiling. The Galil 8-CO speakers feature a multi tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings suitable for array installation. -
Page 7: Your Galil 8-Co

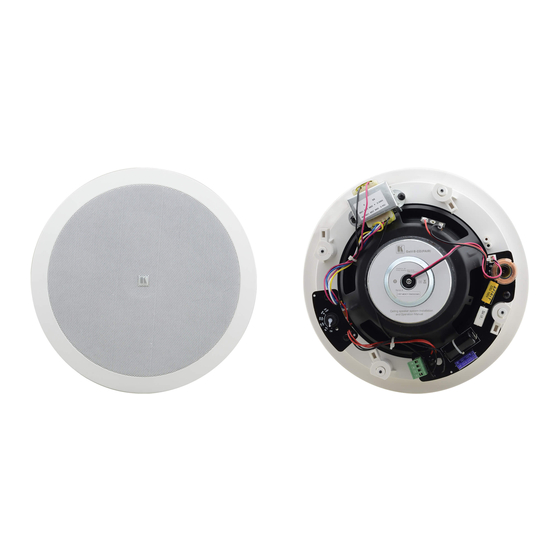

Your Galil 8-CO Figure 2 defines the Galil 8-CO: Figure 2: Galil 8-CO Open-back Ceiling Speakers The following table defines the Open-back ceiling speaker hardware items (per speaker pair): Description A pair of ceiling Two grilles Cutout speakers (one shown) -
Page 8: Installing The Open-Back Ceiling Speakers
There is enough space behind the mounting surface for the speakers The rear side of the speaker is not blocked by wall studs or other objects Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 9: Cutting The Ceiling Tile
When this is the case, the speakers will need additional support. When mounting onto a sheetrock ceiling, the C-ring alone is used to reinforce the ceiling material. Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 10: Mounting The Open Back Ceiling Speakers
3. Insert the supplied screws into the screw openings from the front of the speakers. 4. Connect the speaker wires to the speaker terminals. Figure 5 shows a schematic diagram of the Closed-back ceiling speaker Pinout: Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 11: Array Installation
Array Installation When installing Galil 8-CO in an array installation layout, you have to define the distance between speakers as well as the layout pattern (square or hexagonal). The distance between speakers is set according to the speakers’ coverage angle... -
Page 12: Figure 6: The Speaker Coverage Area
The speakers are positioned according to their coverage area. Figure 7: Square Layout Figure 8: Hexagonal Layout You can set the power on each speaker to get the desired power level in different installation areas. Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 13: Figure 9: Square Layout Parallel Wiring
Figure 9 shows an example of parallel wiring in a square array installation: Figure 9: Square Layout Parallel Wiring Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 14: Painting The Speaker
When painting after installation: Use the circle that you cut out of the template as a paint mask After you finish painting, remove the paint mask Galil 8-CO - Installing the Open-back Ceiling Speakers... -
Page 15: Technical Specifications
External diameter: 27.5cm (11"); cutout diameter: 23.7cm (9.33") INSTALLATION CLEARANCE: Mounting depth: 8.8cm (3.5”) INCLUDED ACCESSORIES: Cutout template COLORS: Available in white Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Galil 8-CO - Technical Specifications... - Page 17 This page is intentionally left blank...
- Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
