USER MANUAL

MODEL:
Tavor 6-O
On-Wall Active Speakers
P/N: 2900-300516 Rev 1
www.kramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tavor 6-O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer Tavor 6-O

Summary of Contents for Kramer Tavor 6-O

  • Page 1: User Manual

    USER MANUAL MODEL: Tavor 6-O On-Wall Active Speakers P/N: 2900-300516 Rev 1 www.kramerAV.com...

  • Page 3: Table Of Contents

    Figure 1: Active On-Wall Speakers in a Home Theater Setup Figure 2: Active On-Wall Speakers in a Conference Room Setup Figure 3: Tavor 6-O Active Speaker Figure 4: Connecting the Active Speaker to the Passive Speaker Tavor 6-O – Contents...

  • Page 4: Introduction

    Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer Tavor 6-O On-Wall Active Speakers, which are ideal for the following typical applications: ...

  • Page 5: Getting Started

    Achieving the Best Performance To achieve the best performance:  Use only good quality connection cables (such as the Kramer BC-2S) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ...

  • Page 6: Recycling Kramer Products

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

  • Page 7: Overview

     Auto-ON selector button The Tavor 6-O is enclosed in an ABS cabinet and can be mounted indoors on the wall, vertically or horizontally. The mounting brackets are made of hardened steel that attach to each speaker, letting you rotate each speaker to the left or right when installed vertically (or up and down if installed horizontally).

  • Page 8: Figure 1: Active On-Wall Speakers In A Home Theater Setup

    Figure 1: Active On-Wall Speakers in a Home Theater Setup Figure 2: Active On-Wall Speakers in a Conference Room Setup Tavor 6-O - Overview...

  • Page 9: Defining The Tavor 6-O

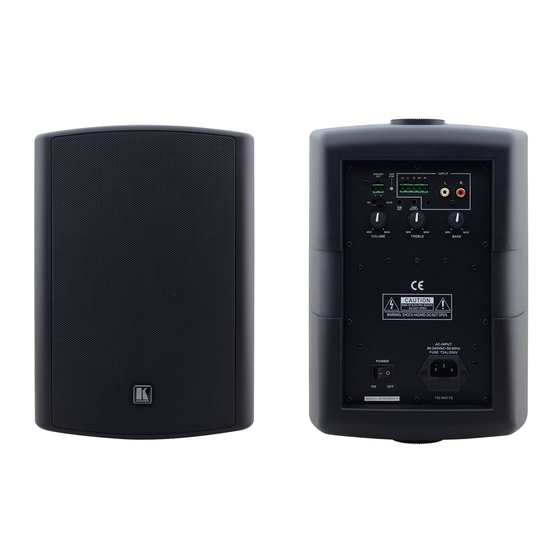

    Defining the Tavor 6-O This section defines the active Tavor 6-O: Figure 3: Tavor 6-O Active Speaker Tavor 6-O - Defining the Tavor 6-O...
  • Page 10 For turning the unit ON (–) or OFF (O) LOOP OUTPUT 3.5mm Mini Jack Connect to another pair of active speakers Connector SUB OUT 3.5mm Mini Connector If required, connect an active sub-woofer to this output for maximum bass reproduction Tavor 6-O - Defining the Tavor 6-O...

  • Page 11: Installing The Speakers

    1. Connect the + and - stereo sockets of the active speaker to the + and - stereo sockets of the passive speaker using the cable supplied, as follows: Passive Speaker (R) Active Speaker (L) Figure 4: Connecting the Active Speaker to the Passive Speaker Tavor 6-O - Installing the Speakers...
  • Page 12 Mark the location of the mounting holes  Screw the mounting screws (not included in the package) into the mounting holes  Slide the mounting bracket over the mounting screws so that the mounting bracket is secured to the surface Tavor 6-O - Installing the Speakers...

  • Page 13: Technical Specifications

    Horizontal: 65 degrees @2000Hz DAMPING FACTOR: 19 @ 4Ω/1000Hz S/N RATIO: 80-90dB ≦0.15% THD: CONTROLS: Volume, bass and treble INPUT POWER: ON or AUTO STANDBY MODE POWER CONSUMPTION: 0.5W INPUT LEVEL FOR SYSTEM “WAKE-UP” 12mV FROM STANDBY MODE Tavor 6-O - Technical Specifications...
  • Page 14 4m (13.12ft) power cord; 4m (13.12ft) loudspeaker cable; and a 2m (6.6ft) 3.5mm to 2 RCA cable COLORS: Available in white or black Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Tavor 6-O - Technical Specifications...

  • Page 16: Safety Warning

    SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
