Kramer SPK−C612 Features & Specifications

SPK-C612 (PAIR)
Closed−Back Ceiling Speakers (8Ω)
FEATURES
Type - 2−way co−axial speaker.
Woofer - 6.5" polypropylene cone with rubber edge.
Tweeter - 1" Mylar dome.
Impedance - 8Ω.
Metal Back Can - 7" deep.
Crossover Frequency - 3kHz.
Sensitivity - 87dB.
Frequency Response - 55Hz to 20kHz.
Power Rating - 30W nominal, 60W max.
Recommended Amplifier Power
- UL2043 − Fire test for heat and visible smoke release for discrete products and their accessories
UL Listed
installed in air−handling spaces.
UL DAMP - Certified for use in indoor: pools, saunas, and gymnasiums.
Dimensions - OD: 25.1cm (9.89"); cut−out size: 22.3cm (8.78"); mount depth: 19.5cm (7.68").
Weight (Single Speaker) - 2.85kg (6.28lbs) approx.
Shipping Weight (Pair) - 8kg (17.64lbs) approx.
Accessories - Ceiling mounting kit.
Package - 2 speakers (1 pair), template and user manual.
- 30W.

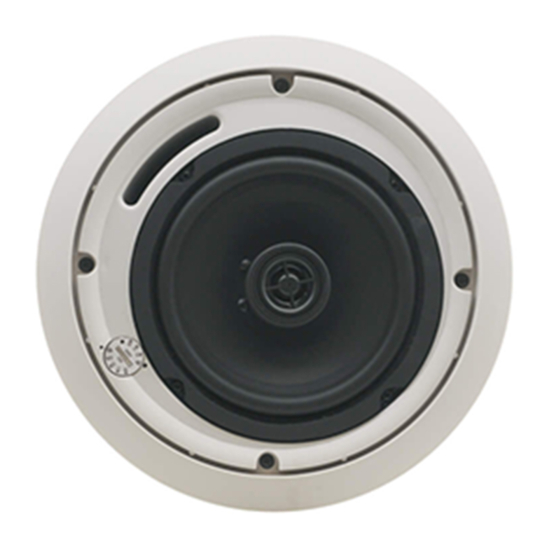

The SPK−C612 is a pair of two−way co−axial
8Ω speakers designed for mounting in the
ceiling. The dual−driver coaxial speakers are
designed with a transformer
behind−the−grille power selector switch with
either direct 8Ω or 70/100V room balancing.
and
