Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Tavor 5-O (SPK-WA511) On-Wall Active Speakers P/N: 2900-300366 Rev 4... -
Page 3: Table Of Contents
Figure 1: Active On-Wall Speakers in a Home Theater Setup Figure 2: Active On-Wall Speakers in a Conference Room Setup Figure 3: Tavor 5-O Active Speaker Figure 4: Connecting the Active Speaker to the Passive Speaker Tavor 5-O – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio. Congratulations on purchasing your Kramer Tavor 5-O On-Wall Active Speakers, which are ideal for the following typical applications: ... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (such as the Kramer BC-2S) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Auto-power shutoff The Tavor 5-O is enclosed in an ABS cabinet and can be mounted indoors on the wall, vertically or horizontally. The mounting brackets are made of hardened steel that attach to each speaker, letting you rotate each speaker to the left or right. -
Page 8: Figure 1: Active On-Wall Speakers In A Home Theater Setup
Figure 1: Active On-Wall Speakers in a Home Theater Setup Figure 2: Active On-Wall Speakers in a Conference Room Setup Tavor 5-O - Overview... -
Page 9: Defining The Tavor 5-O

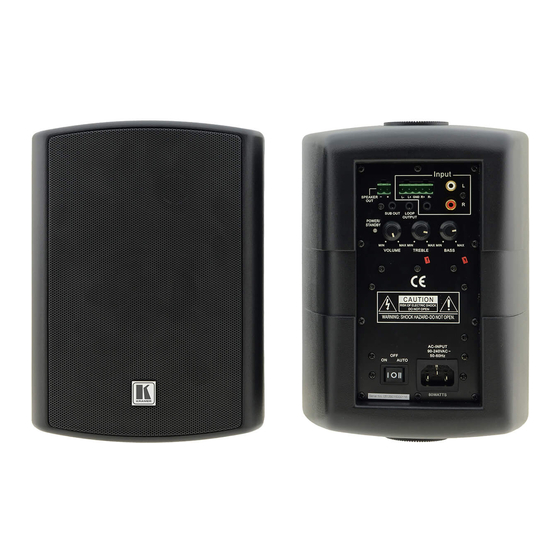

Defining the Tavor 5-O This section defines the active Tavor 5-O: Figure 3: Tavor 5-O Active Speaker Tavor 5-O - Defining the Tavor 5-O... - Page 10 10 minutes LOOP OUTPUT 3.5mm Mini Jack Connect to another pair of active speakers Connector SUB OUT 3.5mm Mini Connector If required, connect an active sub-woofer to this output for maximum bass reproduction Tavor 5-O - Defining the Tavor 5-O...
-
Page 11: Installing The Speakers
1. Connect the + and - stereo sockets of the active speaker to the + and - stereo sockets of the passive speaker using the cable supplied, as follows: Passive Speaker (R) Active Speaker (L) Figure 4: Connecting the Active Speaker to the Passive Speaker Tavor 5-O - Installing the Speakers... - Page 12 Mark the location of the mounting holes Screw the mounting screws (not included in the package) into the mounting holes Slide the mounting bracket over the mounting screws so that the mounting bracket is secured to the surface Tavor 5-O - Installing the Speakers...
-
Page 13: Technical Specifications
4m (13.12ft) power cord; 4m (13.12ft) loudspeaker cable; and a 2m (6.6ft) 3.5mm to 2 RCA cable COLORS: Available in white or black Specifications are within a 10% tolerance and are subject to change without notice at http://www.kramerelectronics.com Tavor 5-O - Technical Specifications... - Page 15 This page is intentionally left blank...
