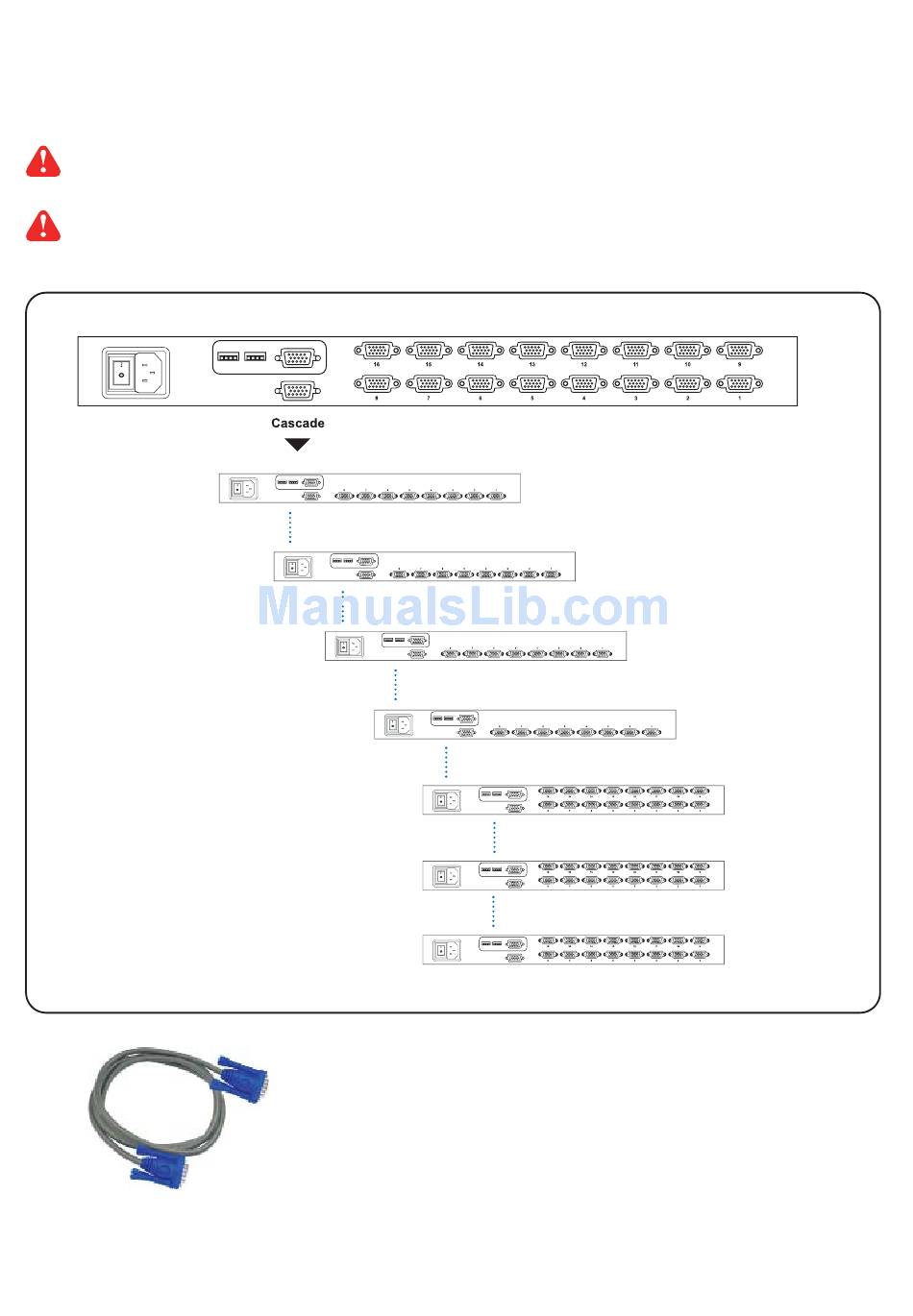

< 3.3 > KVM Cascade
■
Cascade up to 8 levels, 128 servers
■
Cascading multiple KVM with CBC-6 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of KVM-S8 / CV-S16.
When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control
of other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 3
UM-CV-751-SKVM-Q113V1
To console VGA port
Slave KVM
level 4
Slave KVM
level 5
Slave KVM
level 6
Slave KVM
level 7
Slave KVM
level 8
Cascade Cat5/USB
■
6ft Combo KVM cascade cable
KVM-S8
KVM-S8
P.13
Combo DB-15 KVM
KVM-S8
KVM-S8
KVM-S16
KVM-S16
KVM-S16
