< 1.5 > KVM Cascade
■
Cascade up to 8 levels, 256 servers
■

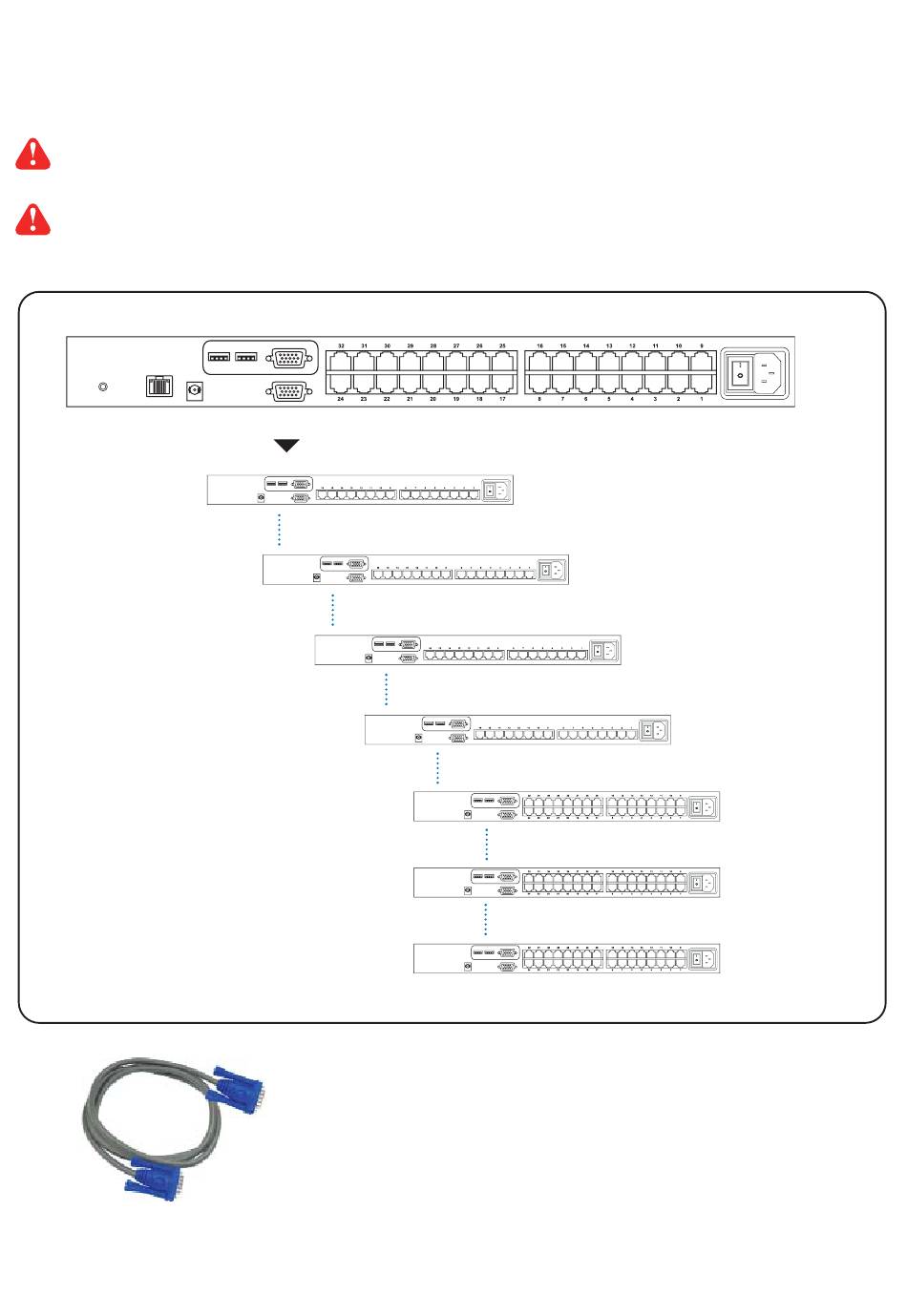

Cascading multiple KVM with LCD-A1019 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of LCDK2001 / 1043 / 1044.
When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of
other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 3
Cascade
To console VGA port
Slave KVM
level 4
Slave KVM
level 5
Slave KVM
level 6
Slave KVM
level 7
Slave KVM
level 8
LCD-A1019
■
LCDK1043
6ft Combo KVM cascade cable
P.5
Combo Cat6 IP KVM
LCDK1043
LCDK1043
LCDK1043
LCDK1044
LCDK1044
LCDK1044
