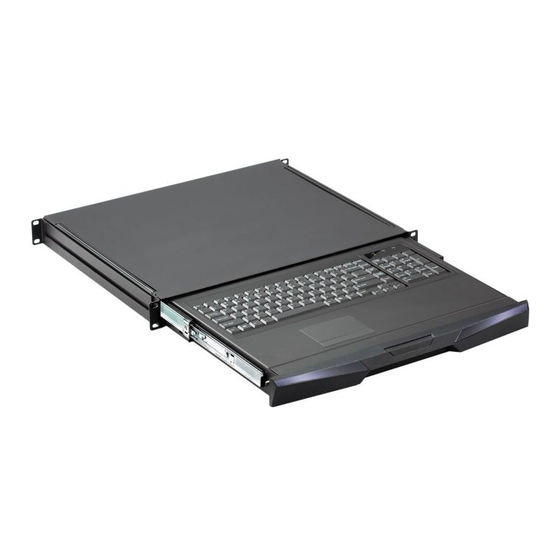

- Page 1 KVM switch and rackmount screen technology User Manual RMD-184 1U Short Depth Keyboard Drawer UM-CV-17V1 www.rackmountsales.com...
-
Page 2: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Specif Cations
Contents < Part. 1 > RMD-184 Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection Specif cations < Part. 2 > Keyboard / Mouse Specifi cations P.5 - 7 Environmental Conditions UM-CV-17V1 www.rackmountsales.com... -
Page 4: Before Installation
If anything is missing, or damaged, contact the supplier immediately. < Part 1 > < 1.1 > Package Content RMD-184 unit X 1 - EKC-2 6ft USB keyboard mouse cable X 1 ( Alternative for PS/2 KB / MS :... - Page 5 < 1.2 > Dimension RMD-184 Front View Rear View KB / MS UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 400 x 44 mm...
- Page 6 < 1.3 > Installation- How to install L-bracket Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear L-bracket to a suitable length and tighten the fasteners.
-
Page 7: Usb Server
< 1.4 > Connection to USB Server RMD-184 Keyboard Drawer KB / MS EKC-2 USB KB mouse cable USB server < 1.4 > Connection to external KVM Keyboard Drawer KB / MS EKC-2 USB KB mouse cable USB console KVM... - Page 8 < Part 2 > < 2.1 > Standard Keyboard / Mouse Specif cations tp keyboard integrated with touchpad tb keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts...
-
Page 9: Keyboard Features
< 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball F8 F8 F8 F8 Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion... - Page 10 < 2.1 > SUN Keyboard / Mouse Options GS keyboard integrated with touchpad GS keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose GS keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 11: Environmental Conditions
< 2.2 > Environmental Conditions RMD-184 Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random UM-17V1 www.rackmountsales.com... - Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-75117V1 www.rackmountsales.com...
