Part 4. Usage

4.1 KVM Button

Power ON
■
Turn off all servers and KVM switches
■
Make sure all cables / connectors are properly connected
■
Recommend Power ON sequence is monitor, KVM switch fi nally computer

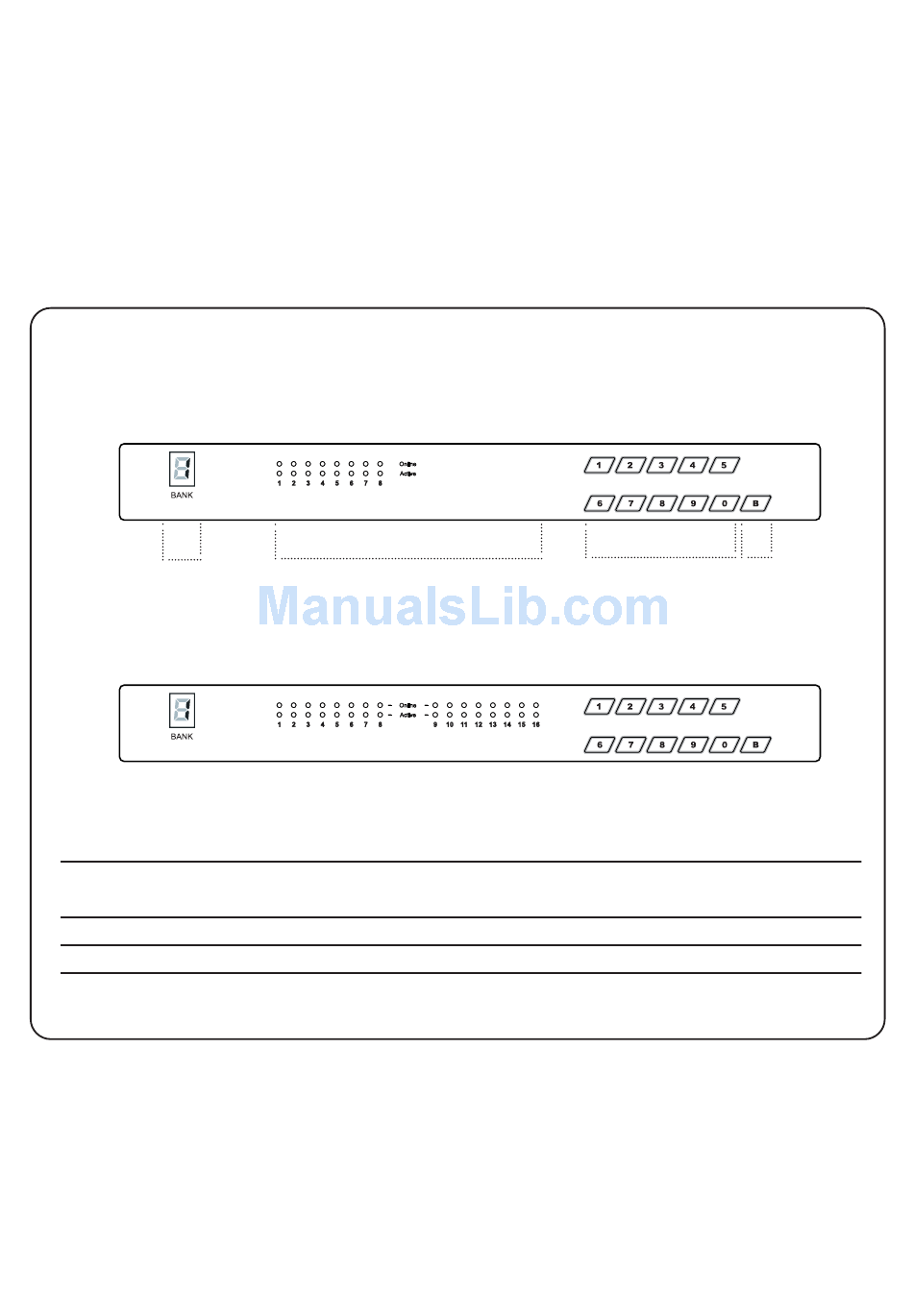

Front Panel - Port LED Indications
8 ports
Bank no.
16 ports
Bank no.
PC port LEDs
Channel button
Bank button
UM-CV-751-SKVM-Q113V1
PC port LEDs
7-Segment BANK LED indication
Online : Blue LED on indicating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Press to select channel from 01 to 16
Select the bank from 1 to 8
P.15
Combo DB-15 KVM Usage
Channel Bank
button button
