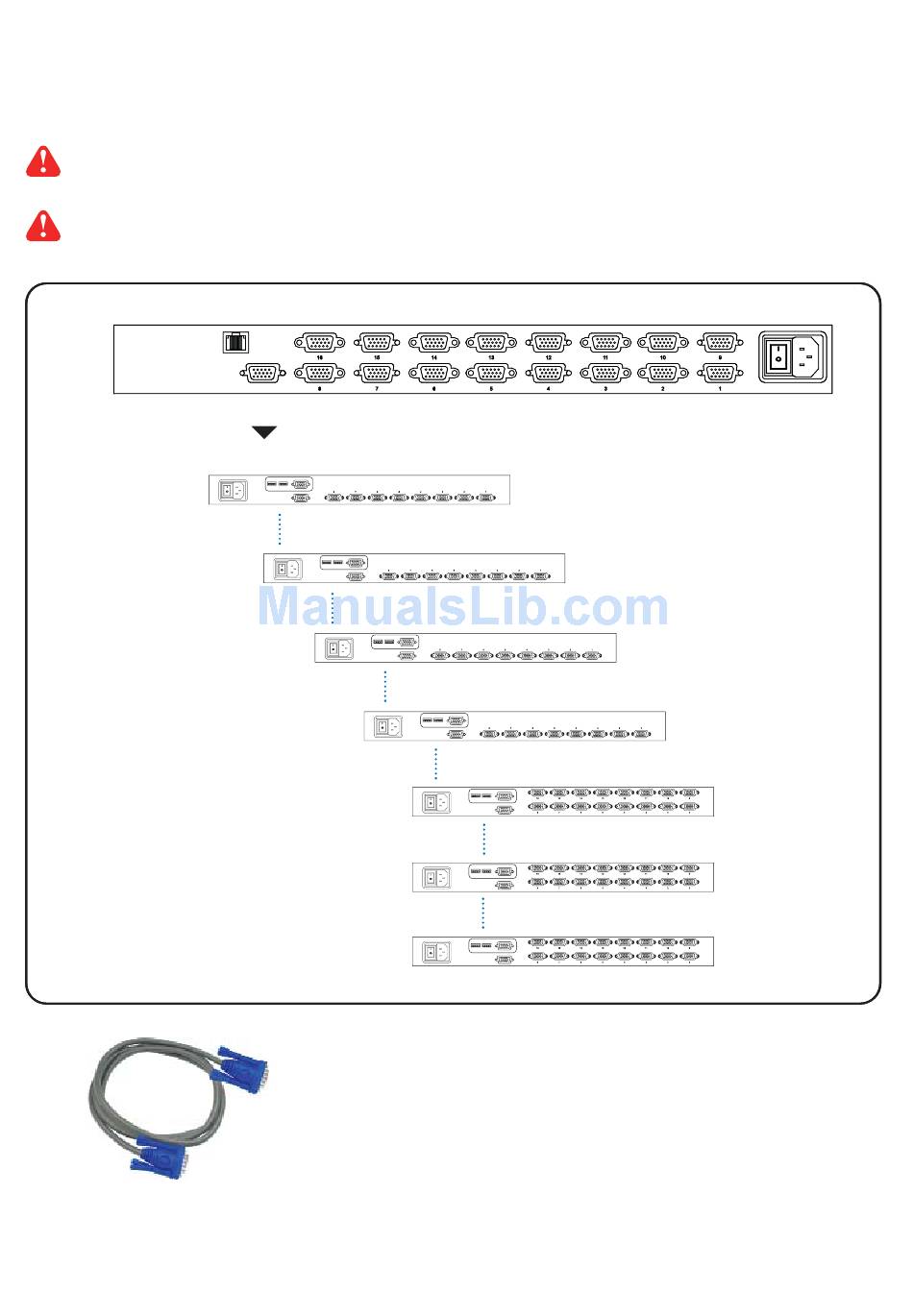

< 2.4 > KVM Cascade
■
Cascade up to 8 levels, 128 servers
■
Cascading multiple KVM with CBC-6 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of KVM-S8 / KVM-S16
When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control
of other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 3
UM-CV-751-SKVM-KIT-Q113V 1
Cascade
To console VGA port
Slave KVM
level 4
Slave KVM
level 5
Slave KVM
level 6
Slave KVM
level 7
Slave KVM
level 8
Cascade Cat5/USB
■
Standalone KVM

KVM-S8

Standalone KVM
Standalone KVM
6ft Combo KVM cascade cable
P.9
Combo DB-15 2-console KVM
Drawer KVM Rear Kit
KVM-S8
KVM-S8
Standalone KVM
KVM-S8
Standalone KVM

KVM-S16

Standalone KVM
KVM-S16
Standalone KVM
KVM-S16
