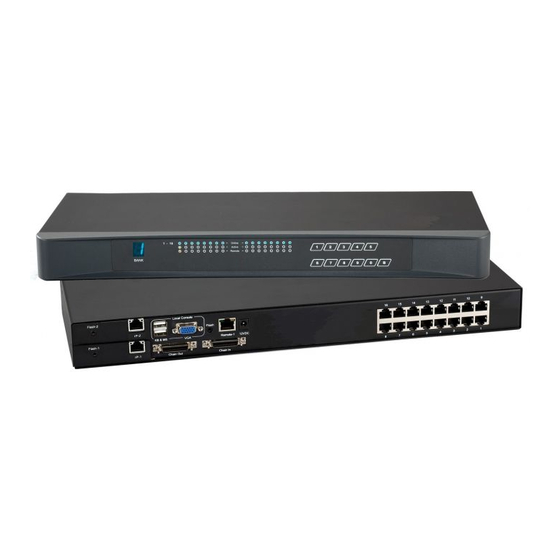

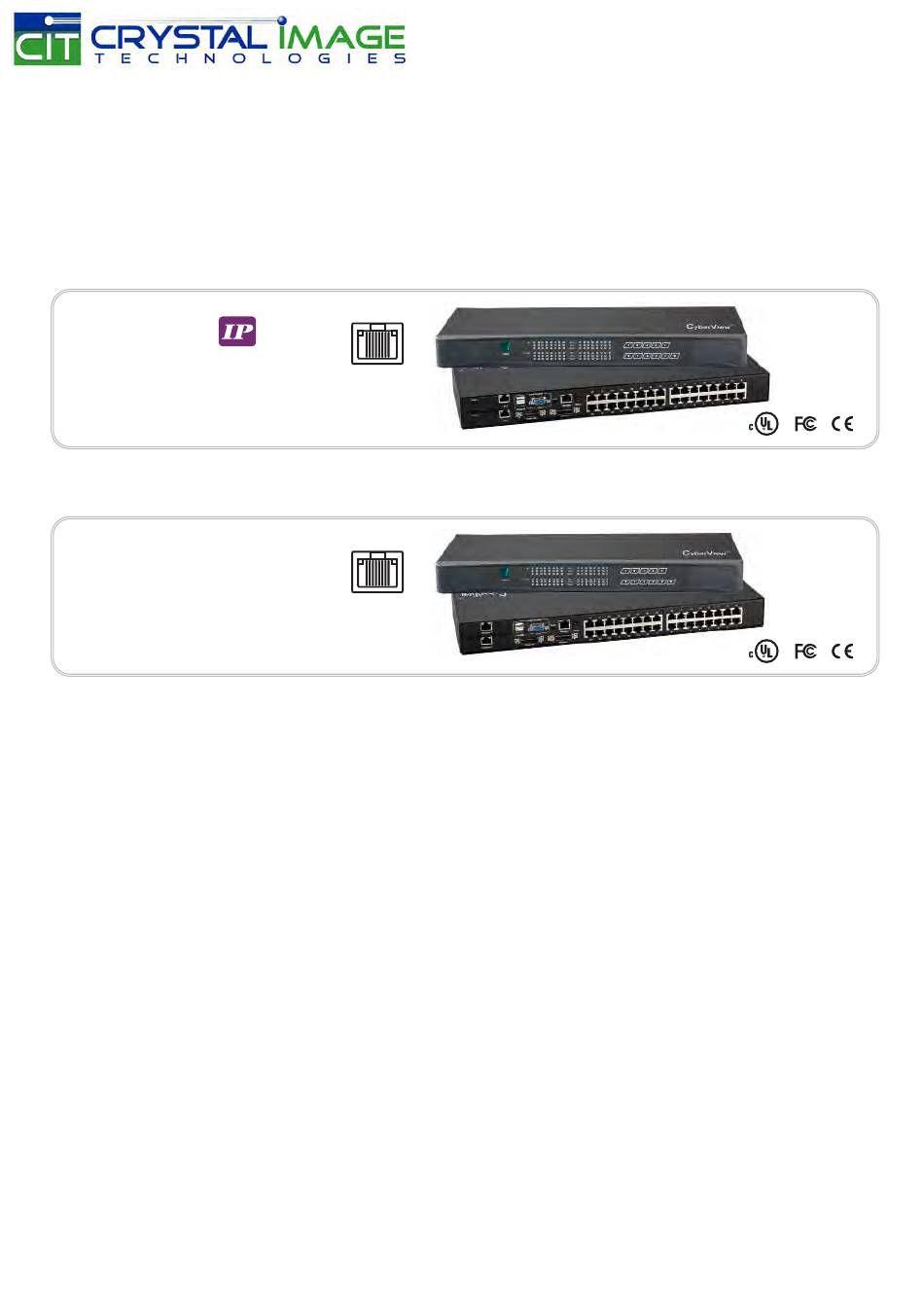

- Page 1 KVM switch and rackmount screen technology User Manual Matrix Cat6 Cat5M-IP116-3 / 216-4 Cat5M-IP132-3 / 232-4 Matrix Cat6 KVM Cat5M-16-2 / 16-3 / 16-4 Cat5M-32-2 / 32-3 / 32-4 UM-CV-751-MUKVM-Q113V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Matrix Cat6 Cat5M-IP116-3 Cat5M-IP216-4 Cat5M-IP132-3 Cat5M-IP232-4 Package contents KVM port & Cat6 dongle connection IP, Remote & Local console connection P.3 - 4 IP console setting KVM Cascade Specif cations < Part 2 > Matrix Cat6 KVM... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1. Matrix Cat6 Kvm
• Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 • CE-6 6ft Combo KVM cable for receiver box x 1 Cat5M-IP116-3 Remote Console 1 Power Cascade Cat5M-IP132-3 Cat5M-IP216-4 Local Console... -
Page 6: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM USB Servers DG-100SD DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port PS/2 Servers USB Servers DG-100S DG-100 PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. -
Page 7: Ip, Remote & Local Console Connection
< 1.3 > IP, Remote & Local console connection Matrix Cat6 IP KVM Network device hub or router CAT 5 / 6 cable max. 100m Remote USB console Receiver CAT 5 / 6 cable max. 150m Local Remote Cat6 console Console 1 Network device hub or router... - Page 8 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.19 Monitor Remote Console...
-
Page 9: Ip Console Setting
< 1.4 > IP console setting Matrix Cat6 IP KVM After the cable connection, please take the following steps to conf gure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to conf gure the IP KVM by device setup as below. 3. -
Page 10: Kvm Cascade
< 1.5 > KVM Cascade Matrix Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Specif Cations
< 1.6 > Specif cations Matrix Cat6 IP KVM MU-IP1613 MU-IP1624 MU-IP3213 MU-IP3224 KVM Port ▀ Number of ports: 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀... - Page 12 UM-CV-751-MUKVM-Q113V1 www.rackmountsales.com...
-
Page 13: Part 2 > Matrix Cat6 Kvm
Part 2. Matrix Cat6 KVM < 2.1 > Package Contents Matrix Cat6 KVM MU-1602 / MU-3202 • MU-1602 or MU-3202 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •... - Page 14 Matrix Cat6 KVM MU-1602 Local Console Remote Console 1 Power Cascade MU-3202 Remote Console Local Console MU-1603 Local Console Remote Console 1 Power Remote-2 Cascade MU-3203 MU-1604 Remote-3 Local Console Remote Console 1 Power Remote-2 Cascade MU-3204 Remote 3 Remote 1 Remote 2 P.10 UM-CV-751-MUKVM-Q113V1...
-
Page 15: Kvm Port & Cat6 Dongle Connection
< 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM USB Servers DG-100SD DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port PS/2 Servers USB Servers DG-100S DG-100 PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. - Page 16 < 2.3 > Local console & remote console connection Matrix Cat6 KVM Remote Receiver USB console 3 CAT 5 / 6 cable max. 150m Remote USB console 1 Receiver CAT 5 / 6 cable max. 150m Remote Local Remote Cat6 Cat6 Console 3 console...
- Page 17 How to use a receiver to connect a remote console Matrix Cat6 KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.19 Monitor Remote Console...
-
Page 18: Kvm Cascade
< 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 19: Specif Cations
< 2.5 > Specif cations Matrix Cat6 KVM Cat5M-216 Cat5M-316 Cat5M-216-4 Cat5M-232 Cat5M-332 CatM-232-4 KVM Port ▀ Number of ports: 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀... -
Page 20: Part 3. Usage
Part 3. Usage Matrix Cat6 KVM Usage 3.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch f nally computer Front Panel - Port LED Indications 16 ports Bank no. -
Page 21: Password
3.2 Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 22: Kvm Osd
3.3 KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port... -
Page 23: Kvm Hotkey / Remote Console Hotkey
3.4 KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +... - Page 24 The company reserves the right to modify product specif cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-MUKVM-Q113V1 www.rackmountsales.com...
