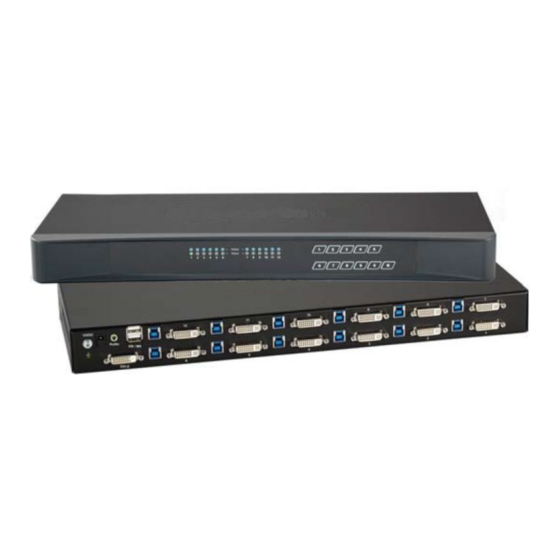

- Page 1 dedicated KVM switch and rackmount screen technology User Manual KVM - 1201D DVI-D KVM Designed and manufactured by Austin Hughes...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents KVM-1201D < Part 1 > DVI-D KVM Package contents KVM port connection Specifi cations < Part 2 > Usage KVM Button KVM Hotkey DC power 12V, 24V, 48V Input UM-CV-DVIKVM-Q212V3 www.austin-hughes.com... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Contents
Part 1. DVI-D KVM < 1.1 > Package Content DVI-D KVM CV-1201D KVM unit • DVI-D KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1 CV-1201D Audio 12VDC... -
Page 7: Kvm Port Connection
< 1.2 > KVM port connection DVI-D KVM USB Servers DVI-D KVM port USB Servers DVI KVM Cable DVI - 6 : 6 feet DVI KVM cable DVI - 15 : 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) UM-CV-DVIKVM-Q212V3 www.austin-hughes.com... -
Page 8: Specifi Cations
< 1.3 > Specifi cations DVI-D KVM KVM-1201D KVM Port ▀ Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet Local Console ▀... -
Page 9: Part 2. Usage
Part 2. Usage DVI-D KVM Usage 2.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications DVI-D KVM 12 ports PC port LEDs... -
Page 10: Kvm Hotkey
2.2 KVM Hotkey DVI-D KVM Usage Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + Port no. Switch to specifi c port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock +... -
Page 11: Dc Power 12V, 24V, 48V Input
2.3 DC Power 12V, 24V, 48V Input DVI-D KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA...
