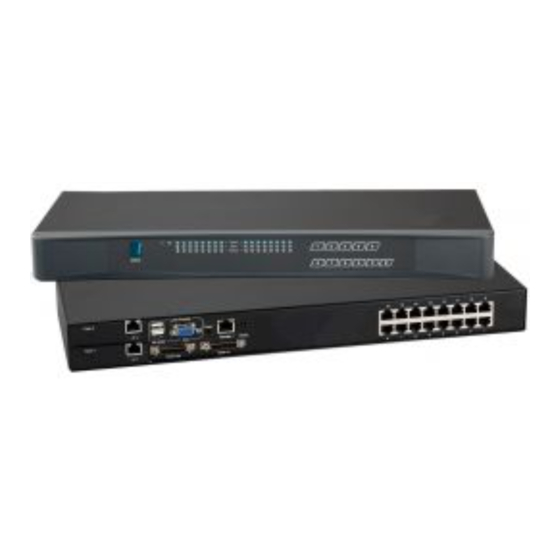

- Page 1 KVM switch and rackmount screen technology User Manual Matrix Cat6 Cat5M-IP1613 / IP1624 Cat5M-IP3213 / IP232-4 Matrix Cat6 KVM Cat5M-216 / 1603 / 1604 Cat5M-232 / 3203 / 232-4 UM-CV-751-KVM-Q322V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, August 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > Matrix Cat6 IP KVM Cat5M-IP1613 Cat5M-IP1624 Cat5M-IP3213 Cat5M-IP232-4 Package Contents KVM port & Cat6 dongle connection IP, Remote & Local console connection Connect to IP console IP Console Firmware Update KVM Cascade P.10 Specifications P.11 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Contents
< Part 1 > Matrix Cat6 Matrix Cat6 IP KVM < 1.1 > Package Contents Cat5M-IP1613/IP1624/IP3213/IP232-4 Cat5M-IP1613 or Cat5M-IP3213 or • Cat5M-IP3213 or Cat5M-IP232-4 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit •... -
Page 6: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM Matrix Cat6 IP KVM Cat5 Dongle USB-C Cat5 Dongle DP Cat5 Dongle HDMI Cat5 Dongle USB/DVI Cat5 Dongle USB USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers Cat5 Dongle USB-C... -
Page 7: Ip, Remote & Local Console Connection
< 1.3 > IP, Remote & Local console connection Matrix Cat6 IP KVM Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. IP Console Remote Console Frequency Frequency Max. Cat6 Cable Resolution Support Resolution Support ( Hz ) - Page 8 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer...
-
Page 9: Connect To Ip Console
< 1.4 > Connect to IP console Matrix Cat6 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Configure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off mouse acceleration of all target servers. - Page 10 Matrix Cat6 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-KVM-Q322V1 www.rackmountsales.com...
- Page 11 Matrix Cat6 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
- Page 12 Matrix Cat6 IP KVM III. Configure Remote Console Resolution The IP remote console displayed on the HTML5-based browser support multiple types of resolution, with a maximum of 1,920 x 1,200. Click Remote Console and then Resolution, the Remote Console Video page is displayed, select the same resolution as target servers, click Apply to save the resolution.
-
Page 13: Ip Console Firmware Update
< 1.5 > IP Console Firmware Update Matrix Cat6 IP KVM Firmware Update Steps 1) Download the latest IP KVM firmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <... -
Page 14: Kvm Cascade
< 1.6 > KVM Cascade Matrix Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5M-216 / 232 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g. -
Page 15: Specifications
16:10 - max. 1920 x 1200 4: 3 - max. 1600 x 1200 ▀ IP Remote Console 1 for Cat5M-IP1613 / Cat5M-IP3213 Number of IP console : 2 for Cat5M-IP1624 / Cat5M-IP232-4 User management : 15-user login, 1 x active user Browser : Chrome, Firefox, Edge, etc. -
Page 16: Matrix Cat6 Kvm
< Part 2 > Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents Cat5M-216 or Cat5M-232 KVM unit x 1 • • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •... - Page 17 Matrix Cat6 KVM Cat5M-216 Local Console Remote Console 1 Power Cascade Cat5M-232 Cat5M-1603 Local Console Remote Console 1 Power Remote-2 Cascade Cat5M-3203 Cat5M-1604 Remote-3 Local Console Remote Console 1 Power Remote-2 Cascade Cat5M-232-4 P.13 UM-CV-751-KVM-Q322V1 www.rackmountsales.com...
-
Page 18: Kvm Port & Cat6 Dongle Connection
< 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM Cat5 Dongle USB-C Cat5 Dongle DP Cat5 Dongle HDMI Cat5 Dongle USB DVI Cat5 Dongle USB USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers USB-C CAT 5 / 6 cable CAT 5 / 6 cable max. -
Page 19: Local Console & Remote Console Connection
< 2.3 > Local console & remote console connection Matrix Cat6 KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200... - Page 20 How to use a receiver to connect a remote console Matrix Cat6 KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer Cat6 cable...
-
Page 21: Kvm Cascade
< 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of M-1602 / M-3202 When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g. -
Page 22: Specifications
< 2.5 > Specifications Matrix Cat6 KVM Cat5M-216 CatM-1603 Cat5M-1604 Cat5M-232 Cat5M-3203 Cat5M-232-4 ▀ KVM Port Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀... -
Page 23: Matrix Cat6 Kvm Usage
< Part 3 > Usage Matrix Cat6 KVM Usage < 3.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 16 ports Bank no. -
Page 24: Password
< 3.2 > Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Press the KVM hotkey Scroll Lock + Scroll Lock + U Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P In SUPERVISOR level, enter “00000000”... -
Page 25: Kvm Osd
< 3.3 > KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Complete / Switch to selected port... -
Page 26: Kvm Hotkey & Remote Console Hotkey
< 3.4 > KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Matrix Cat6 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock +... - Page 27 Intentionally Left Blank...
- Page 28 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-CV-751-KVM-Q322V1 www.rackmountsales.com...
