Summary of Contents for Atlona AT-HDMI-V42

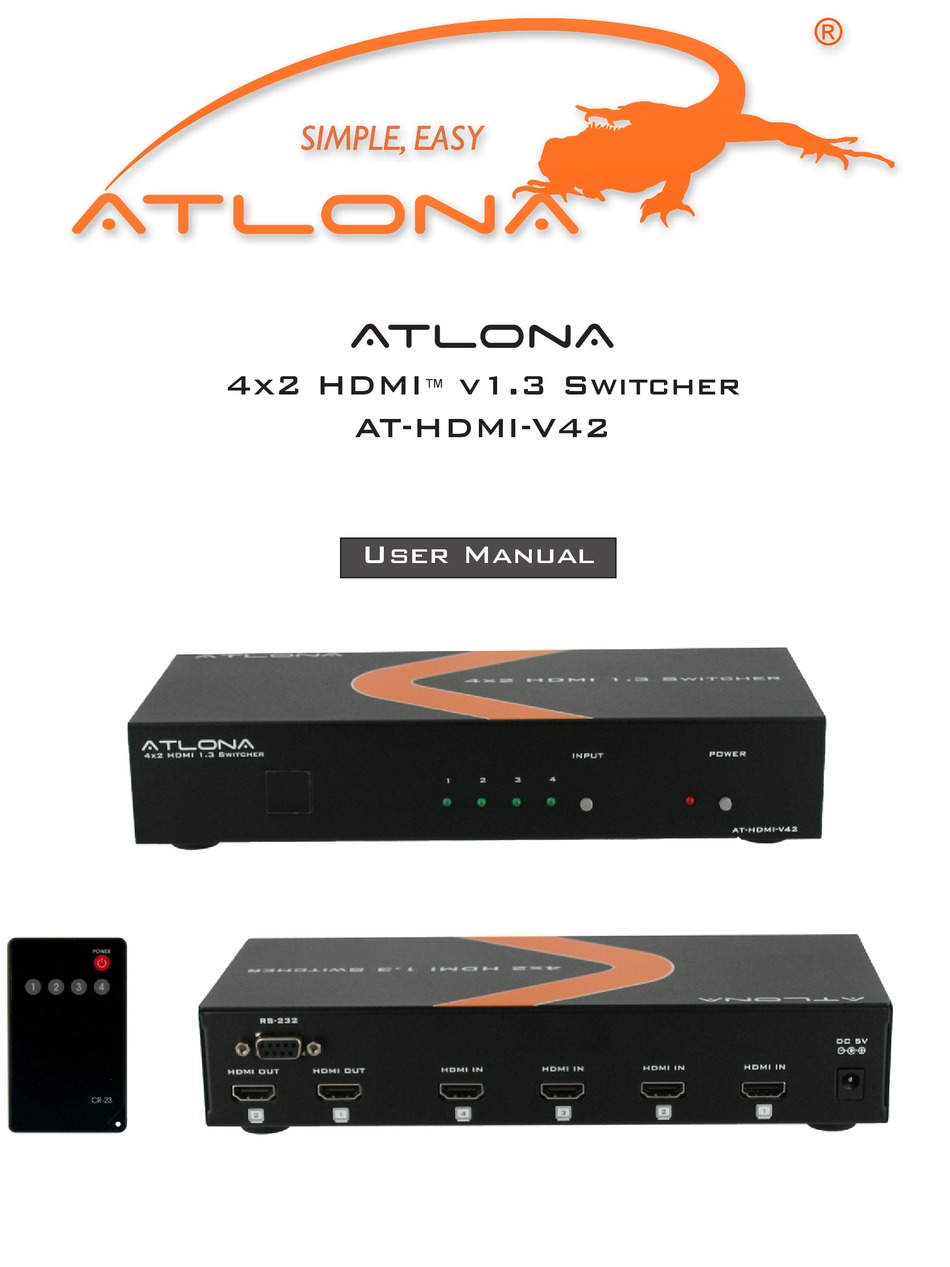

- Page 1 AtlonA 4x2 HDMI v1.3 Switcher ™ AT-HDMI-V42 User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Operation Controls and Functions ......3.1 Front Panel ..........3.2 Rear Panel ..........4. Remote Control ..........5. RS-232 Remote Control Protocol ......5.1 RS-232 transmission format ......5.2 RS-232 command .......... -
Page 3: Introduction
Introduction The is a high performance HDMI™ v1.3 Switcher with remote control. It allows your various HDMI™ source to share two HDTV display. Simply pressing one button to select your desired HDMI™ source for display on the HDTV. Each product in this series is compatible to HDMI™ v1.3 specifications, a cutting-age technol- ogy which defines the support to transfer Deep Color (10-bit and 12-bit) video and new loss- less compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz. -
Page 4: Operation Controls And Functions
Operation Controls and Functions 3.1. Front Panel AtlonA INPUT POWER 1 Remote Control Sensor. 2 HDMI™ input Select/Indicator: Press the “Input” button sequentially to switch to your de- sired input (HDMI™ 1 to HDMI™ 4), the LED will illuminate to indicate which input source is selected 3 POWER Switch/Indicator: Press the “POWER”... -
Page 5: Remote Control
Remote Control 1 Power: Press the button to turn on/off the unit. 2 Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. RS-232 Remote Control Protocol The connection between splitter and remote controller with RS-232 modem cable. ns definition of modem cable Splitter Remote Controller... -
Page 6: Rs-232 Command
5.1 RS-232 transmission format: RS-232 command Operation POWER 00 Select power OFF POWER 01 Select power ON PORT 01 Select port 1 PORT 02 Select port 2 PORT 03 Select port 3 PORT 04 Select port 4 Specifications Frequency bandwidth 2.25Gbps (single link) Input port 4x HDMI female ports... -
Page 7: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
