Chapter 2 Operation; General Operation; Function Introduction; Main Functions - Array electronic 3645A-TYPE Operating Manual

2.1 General operation

1. Connect the power supply with PC

2.2 Function introduction

2.2.1. Main functions

1. Set up a constant voltage from 0 to 36V
2. Set up a constant current or maximum protection current from 0 to 3A
3. Switch ON/OFF the power supply output
4. Store 10 sets of date which had been set up
5. Recall the stored data

2.2.2 Sub-functions

1. Set up maximum protection voltage
2. Turn ON/OFF the sound of key
3. Set up the communication
4. Lock ON/OFF the key board
5. Set up the maximum power
6. Save the last set up of voltage

2.3 The operation of the function

We know that there are 4 main functions and 6 sub-functions of this power supply, the
following will descript how to operate all of the functions. Before any operation, please connect
the power, and switch the power on, then the power indicator will be lighted.
3645A Programmable Power Supply
ARRAY ELECTRONIC CO.,LTD 2002.3

Chapter 2 Operation

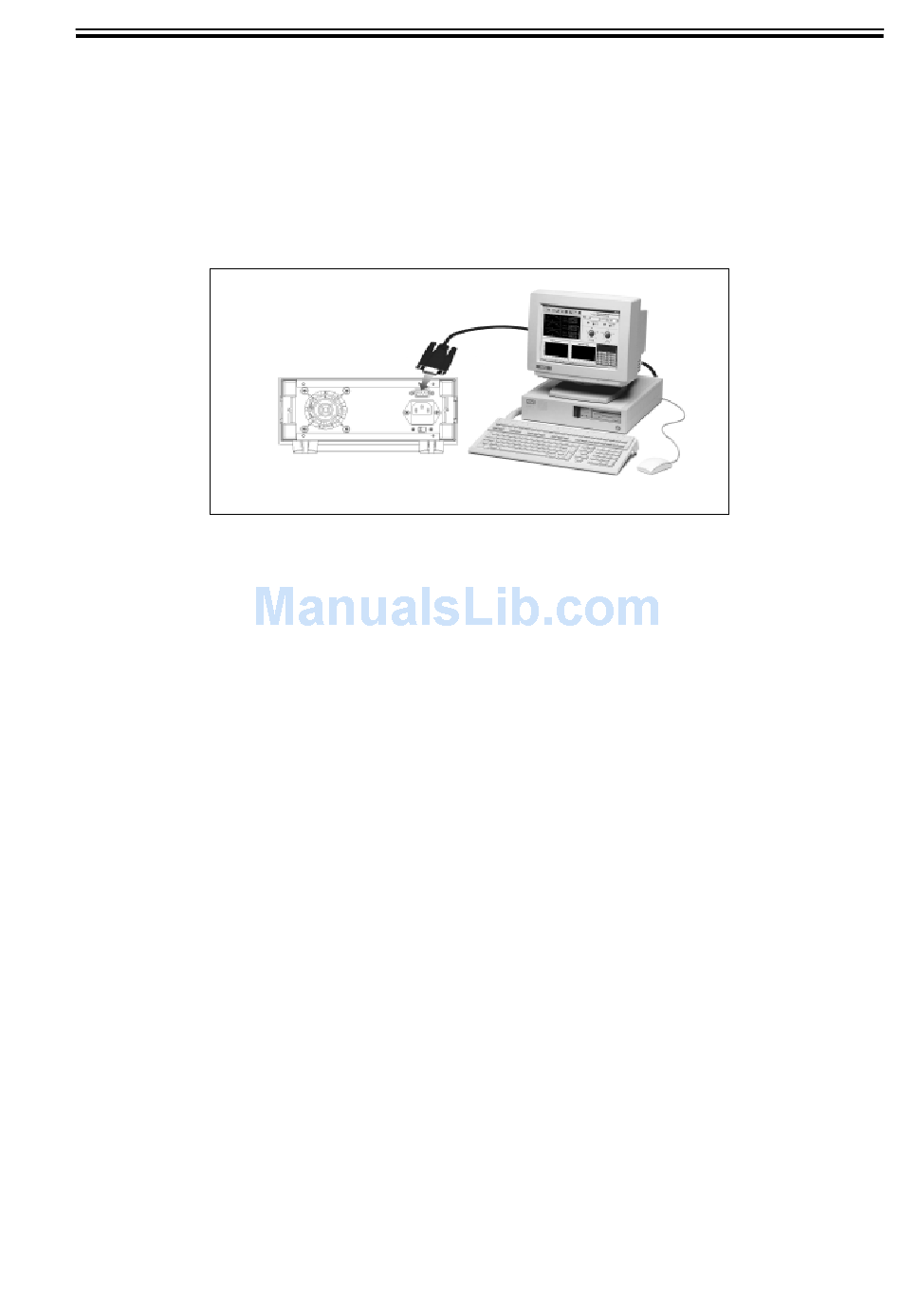

Fig 7 Connect the power supply with PC
3645A-TYPE USER'S MANUAL
7
