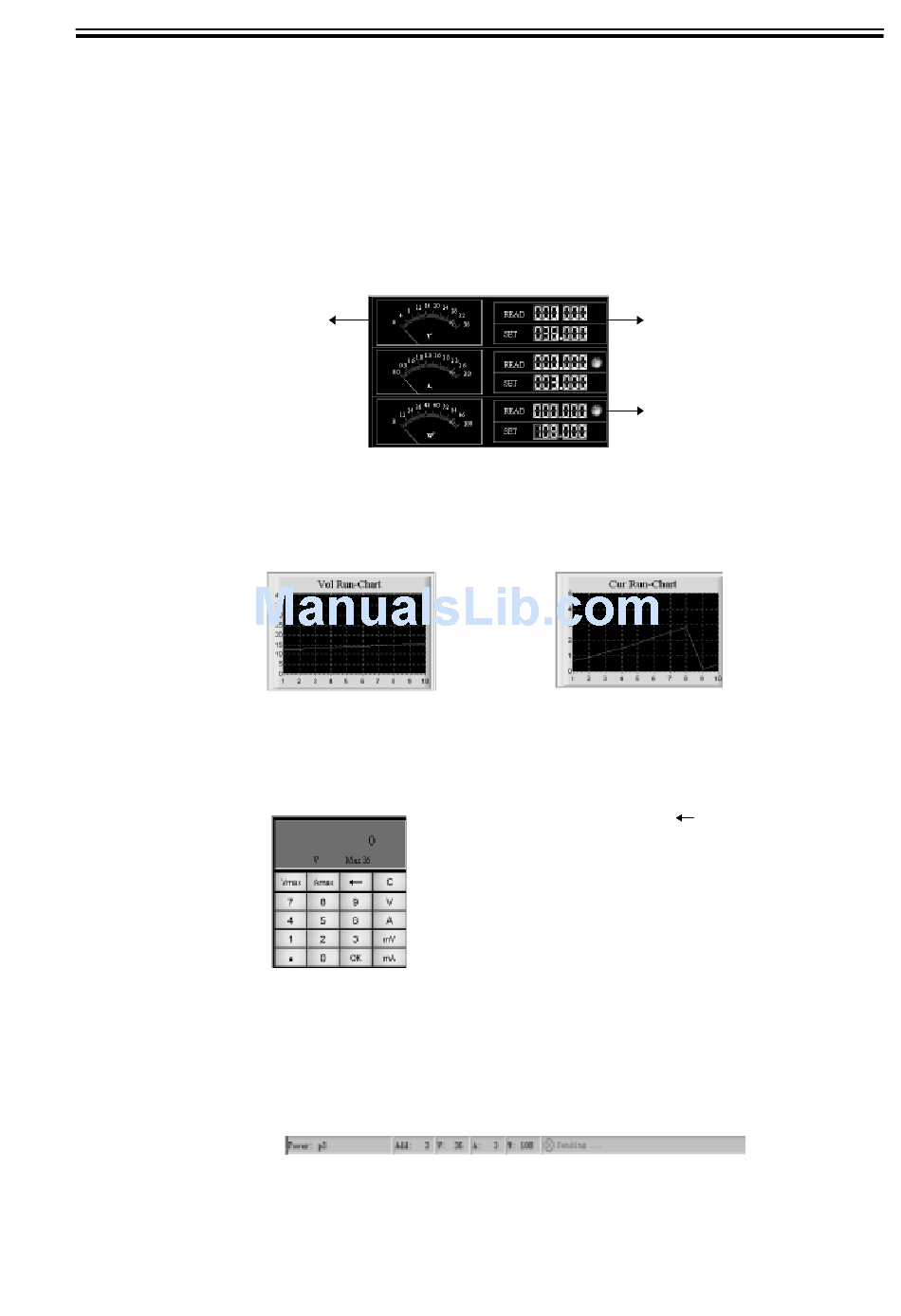

4.12 Explanation of the Interface Indicating Components

1.) Instrument Part
The Voltage Value
(Accuracy rate: 2 digits)
Common Date and Overflowing Data are both in the normal communication state.
2.) Running Curve: Indicates the data acquired at the nearest 10 ports.

4.13 The State Bar

The Voltage Running Diagram
3.) Keyboard Explanation

4.14 Help

Power: p3: presents the current selected POWER.
3645A Programmable Power Supply
ARRAY ELECTRONIC CO.,LTD 2002.3
Fig. 4-25 Instrument Indication
Fig. 4-26
Keyboard Explanation
3645A-TYPE USER'S MANUAL
The Current Running Diagram
Number Keys: 0-9 ".": the point key
"C": the clearing key "
"V": the voltage setting key (Unit: V 0~36.000)
"A": the current setting key (Unit: A 0~3.000)
"mV": the voltage setting key (Unit: mV 0~36000)
"mA": the current setting key (Unit: mA 0~3000)
"Vmax": input the max voltage value (36V)
"Amax": input the max current value (3A)
"OK": the confirmation key
Panel Part:
V: presents the current voltage set state (Unit: V).
Max 36: presents that the max set voltage value is 36.
0: the current set value
Voltage Set Value
(Accuracy rate: 5 digits)
Common Data: Green
Overflowing Data: Red
": the backspace key
