Add: Select "Add" in the function items and then input the contents of each item. After the
set of the input, it is just needed to select "Save" to save it.
Delete: Select the POWER record to be deleted in the table and then select "Delete". Finally
select "Save" and it will be OK.
Modify: Select the POWER record to be modified in the table and then select "Modify" to
modify it. After the modification, select "Save" and it will be OK.
Query: Select "Query" and then wait for the name of the power supply to be queried.
Show: Select "Show" and it will show all the records.
Print: Select "Print" and it will print all the current records.
Parameter Explanation
Parametrer
Power Name
Current Up
Power Up
Voltage Configure
Configure
ID
Notes: When selecting the "Add" function item to add POWER, the name and address of the POWER cannot
be repeated. After entering all the information, click "OK" and the dialogue frame as shown in Fig. 4-3 will be
displayed. In Fig.4-3, select "YES" and the system will close and restart.

4.3 The COM Port and Lower Machine (Power Supply) Address Set

Login in the identity of "Manager" and then select the quick icon after the system restarts. The dialogue
frame as shown in Fig.4-4 will be displayed.
In Fig. 4-4, select the page key "COM" and select the COM port from the pull-down table. If the COM port does not
exit, the system will prompt the diagram as shown in Fig. 4-5. And the "OK" button and the page key "ADDRESS"
are out of work. And vice versa. (And users must be in the identity of the "Manager" otherwise the "ADDRESS"
cannot be used.
3645A Programmable Power Supply
ARRAY ELECTRONIC CO.,LTD 2002.3
Explanation
Name Of the Power Supply
The Max Current
The Max Power
The Max Voltage
The ID Number

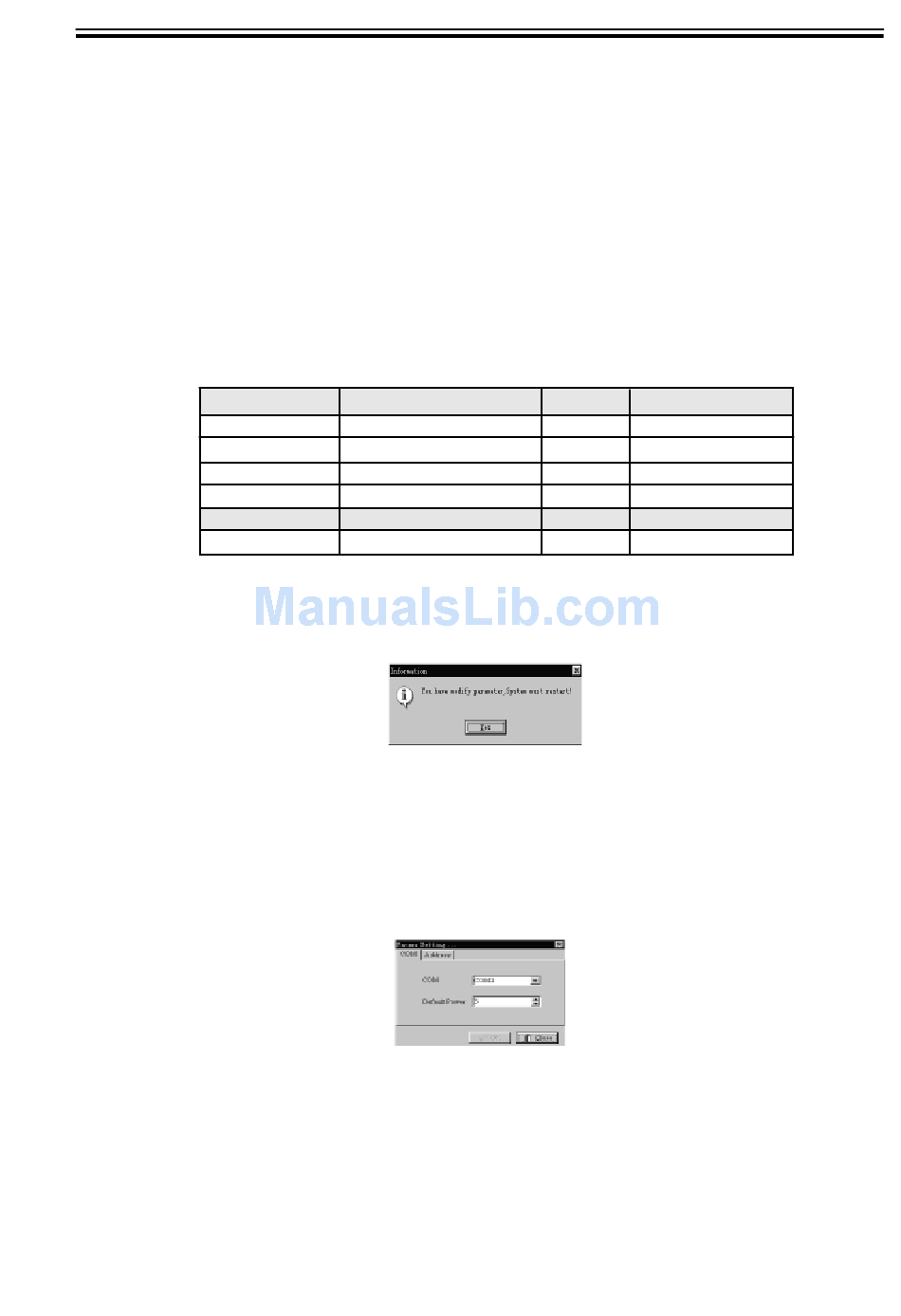

Fig. 4-3 System Prompt the restart
Fig. 4-4 COM Port and address set
3645A-TYPE USER'S MANUAL
Range Remarks
Must be Input
0~3A Must be Input
0~108W Must be Input
1~36V Must be Input
No Consideration
19
