- Page 1 AtlonA VGA to Component or Component to VGA Converter Scaler AT-VGA300CV User Manual...
-
Page 2: Table Of Contents
6. OSD Operation ..........7. Connection Diagram ..........7.1. PC to Component Video ..........7.2. Component video to PC ..........8. Support Resolution ..........9. Resetting the Unit ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration .......... -
Page 3: Introduction

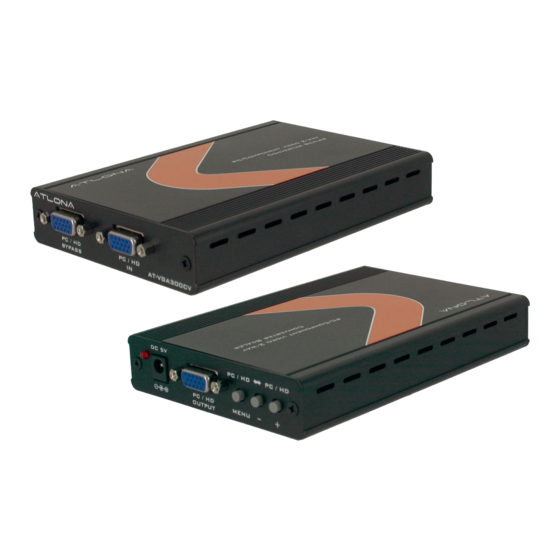

INTRODUCTION The Atlona AT-VGA300CV is a very advanced scaler box, designed to convert any PC/Laptop input to component video or Component video input to VGA output. The Atlona scaler is capable of accepting a wide-range of PC or HDTV resolutions up to WUXGA/1080P. This scaler/converter has a comprehensive on-screen menu which allows user to select from a variety of resolutions, picture adjustments ets. -
Page 4: Panel Descriptions
PANEL DESCRIPTION 1. Front Panel 1. PC/HD BYPASS: BYPASS THE PC/HD INPUT SIGNAL. 2. INPUT: CONNECT THE PC INPUT D-SUB (15-PIN) PORT TO THE D-SUB OUTPUT PORT OF YOUR SOURCE EQUIPMENT SUCH LIKE PC. 2. Rear Panel 1. POWER: PLUG THE 5VDC POWER SUPPLY INTO THE UNIT AND CONNECT THE ADAPTOR TO AC WALL OUTLET. -
Page 5: Osd Operation
OSD OPERATION 1 st Tier Option 2 nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Contrast Level - PHASE 0 ~ 100 of FINETUNE - CLOCK 0 ~ 1 0 of 0 ~ 100 of the Signal's Vertical Position - VERTICAL 0 ~ 100 of the Signal's Horizontal Position - HORIZONTAL... -
Page 6: Component Video To Pc
2. Component video to PC VGA cable, VGA yo YPbPr male to male Adapter cable computer monitor HDTV Selecting Component Video Output • Press “Menu” and “-“ at the same time Selecting VGA output: • Press “Menu” and “+“ at the same time SUPPORT RESOLUTION PC INPUT PC OUTPUT... -
Page 7: 10. Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: 11. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 9: 12. Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
