Summary of Contents for Clarke BIP1500

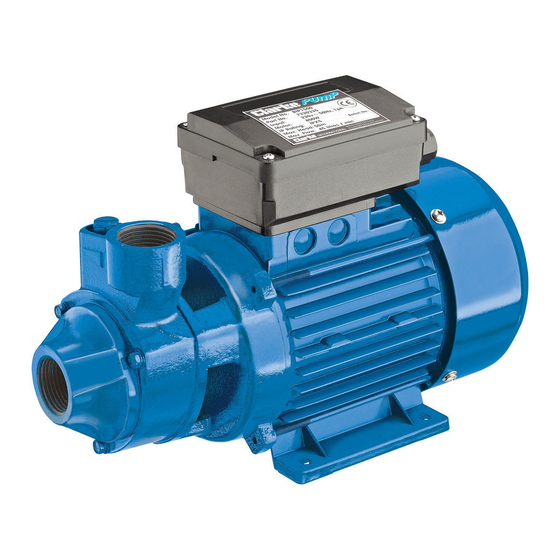

- Page 1 1” ELECTRIC WATER PUMP MODEL NO: BIP1500 PART NO: 7230335 OPERATION & MAINTENANCE INSTRUCTIONS LS0214...
- Page 2 WHENEVER THERE IS A RISK OF PERSONAL INJURY. ENSURE THAT THESE WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES. Your CLARKE water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer.
-
Page 3: General Safety Precautions
9. NEVER use for pumping flammable liquids or corrosive chemicals. This pump is designed to pump clean water only. 11. ALWAYS have the pump serviced by your local Clarke dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. -
Page 4: Installation Of The Pump
INSTALLATION Because of the number of possible installations, no accessories are supplied with your pump, however accessories are available from your nearest Clarke dealer. See the suggested list on page 13. NOTE: It is recommended that the end user should consult a qualified installer if there are any doubts as to the suitability of this product for a particular installation. -
Page 5: Fitting The Cable
FITTING THE CABLE Do not attempt electrical installation work if you are in any doubt as to how it should be done correctly. Consult a qualified electrician. The pump must be wired according to the diagram, after removing the cover plate, ensuring the following principles are observed: •... -
Page 6: Pipe/Hose Connections
Plug must be BS1363/A approved. Always fit a 13 Amp fuse. Earth (Green and Yellow) Live Neutral (Brown) (Blue) Ensure that the outer sheath of the cable is firmly held by the clamp • Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. -
Page 7: Suction Lift Or Gravity Feed
The performance of your pump will be affected by the diameter of the inlet pipe - any restriction will greatly reduce the flow. We recommend that you always use a pipe diameter at least equal to, or greater than the diameter of the pump connections. -
Page 8: Priming The Pump
PRIMING THE PUMP Before pumping, you must completely fill the suction side with water to prime the pump which is carried out as follows:- 1. With all inlet pipes/hoses and foot valve in position, but no outlet hose connected, pour water into the outlet port until all the air is expelled. -
Page 9: Operation
1. Do not allow the pump to run dry, otherwise the seal between the pump and motor may be damaged. If a leak occurs at this point, allowing water to pass from the pump to the motor, take the pump to your Clarke dealer for overhaul. -
Page 10: Maintenance
Always keep the pump in a clean condition, checking regularly for loose bolts or a damaged power cable etc. The pump should not be taken apart by the user in the case of overhaul being required, but should be taken to your nearest Clarke dealer for specialist repair. AFTER USE After use, and if the pump will not be used over the winter period, or whenever there is danger of freezing, always drain the pump body. -
Page 11: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your Clarke making poor seal. dealer for repair Impeller / mechanical Return to your Clarke seal is badly worn. dealer for repair. - Page 12 Installation of pump is Stop pump and unstable. re-position. Air pocket in pump or Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your Clarke dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 13: Specification
SPECIFICATION Water Classification Clean Maximum Delivery 45 l/min Maximum Head 50 m Maximum Suction Lift Operating Temperature 0-40 Ingress Protection Rating IPx5 Supply 230V / 50Hz Rated Power 800W Input Current@ Maximum Head 3.56 A Outlet Thread Size 1” BSP Weight 8.6 kg Length x Width x Height... -
Page 14: Parts Diagram
PARTS DIAGRAM ID DESCRIPTION PART NO ID DESCRIPTION PART NO Screw ZGBIP150001 Fan Cover ZGBIP150016 Pump Body ZGBIP150002 Power Cable ZGBIP150017 Impeller ZGBIP150003 Terminal Box Screw ZGBIP150018 O Ring ZGBIP150004 Cable Seal ZGBIP150019 Motor Front Cover ZGBIP150005 Terminal Box ZGBIP150020 Ball Bearing ZGBIP150006 Power Switch... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
