Summary of Contents for Clarke DFT230

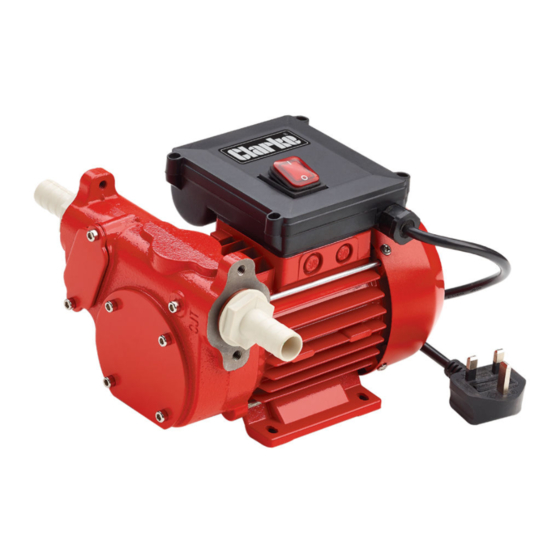

- Page 1 230V DIESEL FUEL TRANSFER PUMP MODEL NO: DFT230 PART NO: 7160050 OPERATION & MAINTENANCE INSTRUCTIONS GC0816...
-
Page 2: Specifications
Thermal overload protection fitted Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the pump’s data plate. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all of the safety and operating instructions carefully before using this product. Keep these instructions in a safe place for future reference. WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. -
Page 4: Environmental Recycling Policy
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 6 CONTENTS ITEM DESCRIPTION 230 volt fuel transfer pump Transparent Inlet (suction) Hose(1” BSP end fittings) Rubber Outlet (delivery) Hose (1” BSP end fittings) Dispensing Nozzle Assembly 1” BSP to 19mm Hose Adaptors Foot Valve/Filter assembly (received attached to suction hose) Hose Clamps (pair) Parts &...
-
Page 7: Connection And Operation
CONNECTION & OPERATION WARNING: DO NOT USE WITH PETROL OR ANY OTHER HIGHLY FLAMMABLE LIQUID TO DUE TO THE POSSIBILITY OF SPARKING TAKING PLACE AND CAUSING FIRE. 1. The pump can be installed in any horizontal mounting position and mounted using screws of adequate size (not supplied) through the mounting holes in the base. -
Page 8: Fault Finding
Pump rotor jammed. Check for possible damage or obstruction of the rotating parts. Motor fault. Return to Clarke Service Department for repair. Thermal cut-out has tripped. Wait for pump to cool down before re-starting. Motor turns slowly Low supply voltage. -
Page 9: Maintenance
Store the pump in dry conditions protected from the weather. For any problems requiring dismantling of the pump, contact your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 10 DFT230 COMPONENT PARTS PART NO DESCRIPTION PART NO DESCRIPTION Screw M5 x 10 Circlip Front cover By -pass valve O-Ring Filter Rotor blade Rubber gasket Rotor Filter cover Pump body By-pass spring Control box Seal Power cable/plug Motor Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
