Direct Vent Gas Fireplace
Installation, Operation and Owner's Manual
This manual covers the following appliances for use in North America ONLY:
Trisore 95, Trisore 100H, Trisore 140, Bidore 95, Bidore 100H,
Bidore 140, Lucius 140, Lucius 140 T, Lucius 140 C 1/3,
Lucius 140 C 2/3, Modore 95, Modore 100H, Modore 140,
Optica, Bioptica
1
June 2014
EuropeanHome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 and is the answer not in the manual?

Questions and answers

Jolanta Szulc
May 22, 2025

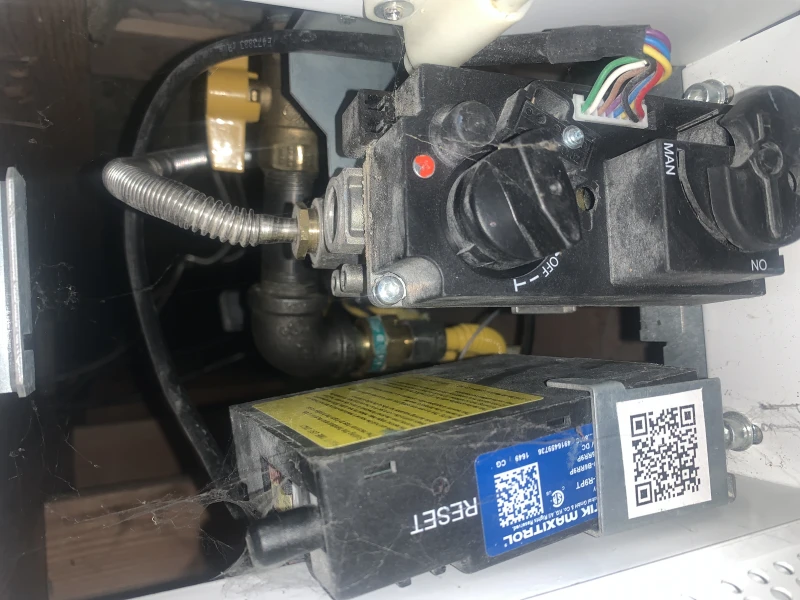

Hello, Which unit is a receiver? The fireplace is Element 4, Bidore 140 MKII. I need to change batteries. Using the power button on the remote control does not start the fire. It operated well for 7 years, until now.

User image 682f413999dad
1 comments:
Mr. Anderson
May 25, 2025

The receiver for the Element4 Bidore 140 MKII fireplace is part of the control system and is located at one end of a 50” (1270 mm) line set, with the gas control. This line set connects to the center of the firebox, and the receiver should be positioned within a 50” radius from that center, below the level of the burner.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Element4 4

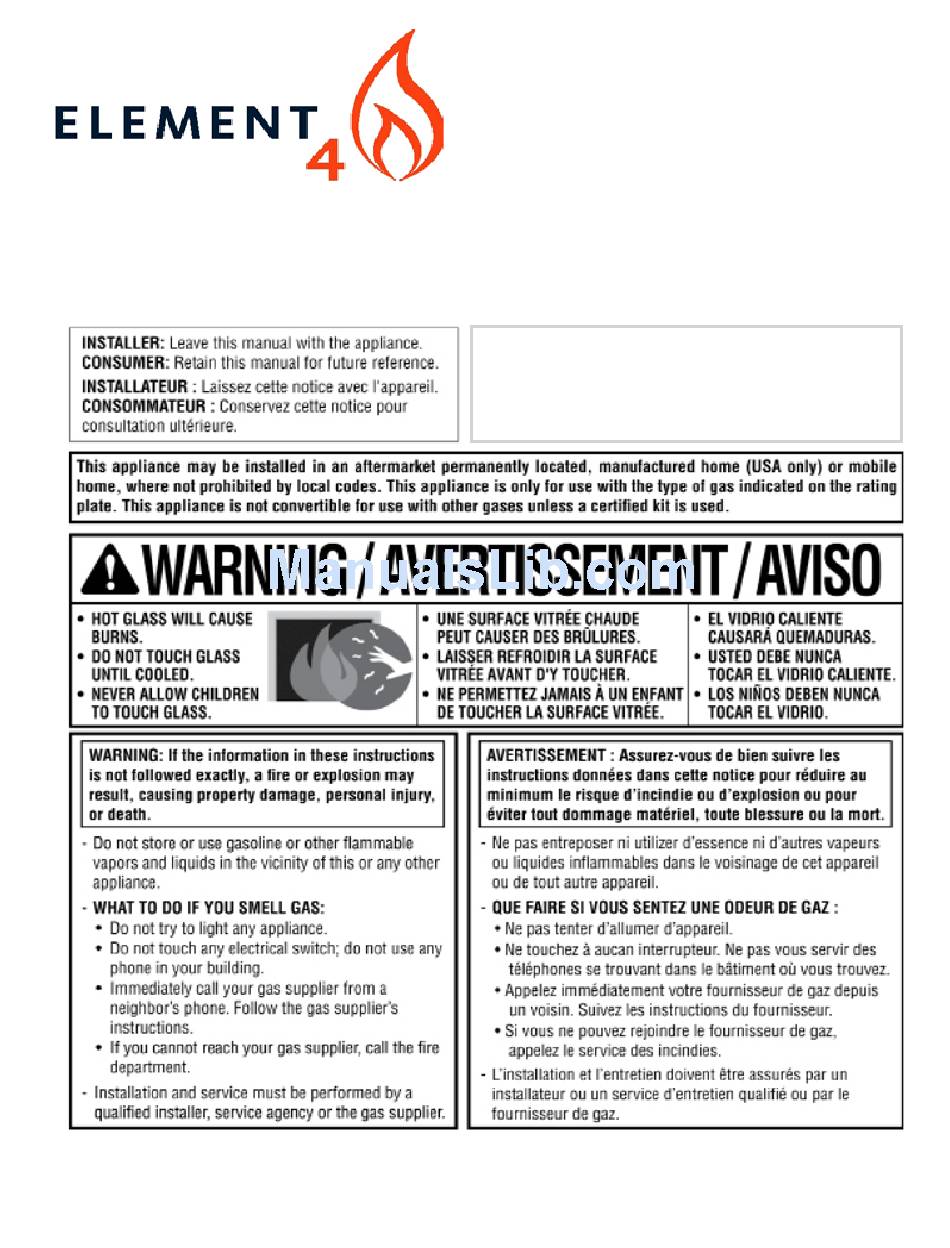

  • Page 1 Direct Vent Gas Fireplace Installation, Operation and Owner’s Manual This manual covers the following appliances for use in North America ONLY: Trisore 95, Trisore 100H, Trisore 140, Bidore 95, Bidore 100H, Bidore 140, Lucius 140, Lucius 140 T, Lucius 140 C 1/3, Lucius 140 C 2/3, Modore 95, Modore 100H, Modore 140, Optica, Bioptica Element4 Gas Fireplaces...
