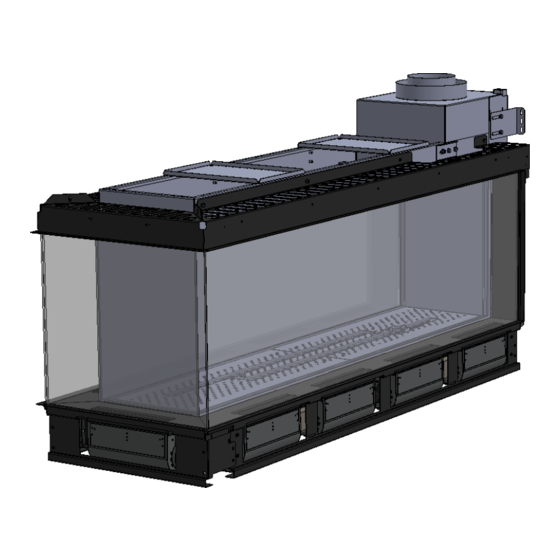

Element4 Lucius 140 R GSB Installation, Operation And Owner's Manual

Element4 Lucius 140 R GSB Installation, Operation And Owner's Manual

Direct vent gas fireplace

Advertisement

Quick Links

HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Element4 Gas Fireplaces Rev# 03242020
Installation, Operation and Owner's Manual
Lucius 140 R
Lucius 140 T
Direct Vent Gas Fireplace
INCENDIE OU D'EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
- Ne pas entreposer ni utilizer d'essence ni d'autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d'allumer d'appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l'entretien doivent être effectués par un
installateur qualifié, une agence de service ou le fournisseur
de gaz.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
1
4006611
GSB
GSB
Une surface vitrée chaude
peut causer des brûlures.
Laisser refroidir la surface
vitrée avant d'y toucher.
Ne permettez jamais á un enfant
de toucher la surface vitrée.
AVERTISSEMENT:
March 2020
EuropeanHome.com

Advertisement

loading

Summary of Contents for Element4 Lucius 140 R GSB

  • Page 1 INSTALLER: Leave this manual with the appliance. INSTALLATEUR: Laissez cette notice avec l’appareil. CONSUMER: Retain this manual for future reference. CONSOMMATEUR: Conservez cette notice pour consultation ultérieure. March 2020 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com 4006611...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information ..................... 3 Key Installation Points ......................6 Planning Your Gas Fireplace....................7 User Information ........................9 Specifications and Dimensions..................10 Lucius 140 Room Divider GSB Lucius 140 Tunnel GSB Parts of the Fireplace Clearances ..........................15 Locating the Fireplace Placing the Fireplace Clearances to Combustibles...
  • Page 3: Important Safety Information

    36” of the fireplace glass. SAVE THESE INSTRUCTIONS Make yourself fully aware of all the following instructions and the many features of the Element4 direct vent gas fireplace appliance. INSTALLER: Leave this manual with the appliance. OWNER: Keep this manual for future reference.
  • Page 4 : Glass Handling jurisdiction for gas product installations to determine their specific requirements for high altitude installations. The glass must only be removed by a qualified person. Gloves should be worn when removing the glass. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 5 DO NOT USE abrasive cleaners on the panels. DO NOT the nearest 1/16” when converted. If greater accuracy is ATTEMPT to clean the glass panels when they are hot. required, use the metric dimensions. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 6: Key Installation Points

    GAS PRESSURES Gas pressures MUST be read with a manometer and confirmed with what is required in the installation manual. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 7: Planning Your Gas Fireplace

    PLANNING YOUR GAS FIREPLACE Before You Begin Since the Element4 fireplaces are vented gas appliances they must be installed by a qualified installer. • Your sales representative can help you choose the appropriate professional. Overall Design • One of the many features of the Element4 fireplace is its use of convective air flow.
  • Page 8 If the venting falls outside of the vent graphs, a power vent is available. • The next question to ask is, “Can I get my gas pipe to the fireplace?” The Element4 fireplaces burn either Important Points natural gas (NG) or propane gas (LP.) Your sales representative will ask you for your requirement at the •...
  • Page 9: User Information

    WARMTH AND BEAUTY - HOW IT WORKS This Element4 fireplace is a direct vent fireplace and, as such, the intake and exhaust air moves through the vent pipe. To lower the temperature of the glass panels, the fireplace has a Glass Safety Barrier between the room and the flames. This Glass Safety Barrier uses fans to move room air between two layers of viewing glass thus providing warm air to the room.
  • Page 10: Specifications And Dimensions

    27.1 New Efficiency Figure 2 Figure 3 A typical rating label is shown above. It is attached to every Element4 fireplace and contains important certification information. It must not be removed from the fireplace. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 11 UL, CSA Figure 4 Figure 6: AC Adapter Connection Fan Set A Fan Set B Snap Switch Speed Control Fan Set C Fan Set D Fan Set E Fan Set Electrical Schematic Figure 7 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 12: Lucius 140 Room Divider Gsb

    294 x 450 Long Outer (x2) 581/4 x 173/4 1480 x 450 187/8 x 173/4 480 x 450 Short Outer Figure 8 A DWG/DXF file is available for download at www.europeanhome.com for dimensions not shown. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 13: Lucius 140 Tunnel Gsb

    W x H (mm) Long Inner (x2) 553/16 x 173/4 1401 x 450 581/4 x 173/4 1480 x 450 Long Outer (x2) Figure 9 A DWG/DXF file is available for download at www.europeanhome.com for dimensions not shown. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 14: Parts Of The Fireplace

    Inner Glass Clamps - holds the Inner Glass Panels in place Vent Collar - accepts the 5” x 8” venting adapter (included) Relief Door - part of the safety system. Do NOT block the operation of the relief doors. Pilot Assembly Figure 12 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 15: Clearances

    YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESE CRITICAL COMPONENTS THROUGHOUT THE INSTALLATION CRITICAL COMPONENTS THROUGHOUT THE INSTALLATION PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES. PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 16: Clearances To Combustibles

    We recommend that the fireplace be set into its final location before building the enclosure. Please refer to the “Reduced Clearance to Existing Combustible Walls” section for use of combustibles inside of the above clearances. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 17: Mantel Clearances

    (TYPICAL) Mantel Depth NON COMBUSTIBLE 12”/300 mm MATERIAL CONSTRUCTION BEAMS NON- COMBUSTIBLE (TYPICAL) DETAIL C ETAIL C 1”/25 mm ALE 1 : 10 TOP OF FIREPLACE OPENING GLASS Figure 16 Figure 17 CONVECTION GAP Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 18: Opening Clearances

    Warm Air Outlet 1830 appliance bottom Square Square Square Square Model Inches Centimeters Inches Centimeters 1” Chase ceiling to top of Warm Air Outlet Lucius 140 R GSB Figure 19 Lucius 140 T GSB Figure 20 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 19: Gas & Electric

    Plug the power cord into the dedicated receptacle and ensure that the fans spin freely and operate properly before enclosing the fireplace! Electrical work must be performed by a qualified, licensed electrician. WARNING All wiring shall be in compliance with all local, city, and state codes. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 20: Venting

    Pro-Form (BDM - Bernard Dalsin Manufacturing) Direct-Temp (Selkirk Corporation) AmeriVent Direct Vent (Hart & Cooley Inc.) Ventis Direct Vent (Olympia Chimney Supply, Inc.) Figure 22 Please visit www.europeanhome.com/technical-support/ for the power venting installation manuals Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 21 Calculate the Total Vertical Section by adding up all vertical upward sections in your specific vent design. CALCULATING THE TOTAL HORIZONTAL SECTION (THS) Calculate the Total Horizontal Section by adding up all horizontal sections in your specific vent design. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 22 Loosen the screws on either side and slide the restrictor as desired. Do not modify the restrictor. Please use the following graph to determine if you will need to use a restrictor. Loosen these two Phillips head screws to slide the restrictor on/off. Figure 28 Figure 29 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 23: Venting Charts

    16'-5" (5 m) 19'-8" (6 m) 9'-10" (3 m) 13'-2" (4 m) 16'-5" (5 m) d Restrictor Requirements Figure 31 configuration allowed, no restrictor required configuration allowed, 35mm restrictor required configuration NOT allowed Figure 32 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 24: Venting Clearances

    VENTING CLEARANCES HORIZONTAL VENT TERMINATION CLEARANCES AND REQUIREMENTS Figure 33 Figure 34 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 25 National Fuel Gas Code (ANSI Z223.1 in the USA) or the current standard of CAN/CSA-B149.1 in Canada. Figure 35 Figure 36: Termination Heights A second termination may be no closer than 12”/305 Figure 37: Multiple Termination Clearance Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 26: Enclosing The Fireplace

    Figure 38: * The listed brand names are trademarks of their respective companies. Skamol Americas, Inc. (844) 475-2665 E-mail: skamotec225@skamol.com www.skamotec225.com Promat Inc. (865) 681-0155 E-mail: sales@promat.us www.promat.us/en James Hardie Building Products (888) 542-7343 www.jameshardie.com Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 27 1. Most important, these fireplaces are NOT zero-clearance fireplaces. Unlike zero-clearance fireplaces, there is not a metal box around the Element4 fireplaces. With no metal box there are no louvers to distract your view of the fire. However, we want the cooling advantage of a metal box so your site-built, non-combustible enclosure will substitute.
  • Page 28 Gap MUST BE Gap MUST BE MAINTAINED MAINTAINED 1”/25 1”/25 Minimum Air Gap MUST BE MAINTAINED Minimum Air Gap MUST BE MAINTAINED Figure 39 OMbuSTIbLE hIELd INIShEd hIELd INIShEd OMbuSTIbLE Figure 41 Figure 42 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 29 1/2” (12 James Hardie Building Products HardieBacker® 500 1/2” Cement Board 1/2” (12 James Hardie Building Products HardieBacker® 1/4” Cement Board 1/4” (6 Figure 43 Figure 45 Figure 44 Minimum Wall Thickness = 1/2”/12 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 30 Lucius with Endwall Outlets Figure 46 Minimum Required Air Opening Sizes Room Air Inlet Warm Air Outlet Square Square Square Square Model Inches Centimeters Inches Centimeters Lucius 140 R GSB Lucius 140 T GSB Figure 47 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 31 Figure 49 Figure 48 Use the adjustable feet to ensure that the fireplace is level prior to enclosing it. Do NOT lift the fireplace by the face frame but by the bottom of the cabinet. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 32: Locating The Controls

    The door should be mounted with the hinge on the left side or with the hinge side down. ENSURE THAT ALL WIRING AND CABLES ARE CLEAR OF ALL OF THE FANS! Wall Access Door Dimensions Outer Frame Rough Opening 111/4”/286 x 87/16”/214 913/16”/250 x 615/16”/175 Figure 50 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 33 2”/50 frame and secure it with the four bolts. Figure 54 Figure 53 Tighten the bolt through the mounting Fit the gas control tab into the bracket on bosses. the Access Door frame. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 34: Installing The Fire Media

    The fans will turn off when the Shutoff Snap Switch reaches its set point and subsequent start attempts are not possible until the 2 thermocouple cools down. DO NOT OPERATE THE BURNERS WITH THE GLASS OFF FOR MORE THAN THREE (3) MINUTES OR DAMAGE WILL OCCUR! Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 35 - three bags of black and three bags of grey chips With the chips scattered across the burner and hearth panel, lay the logs in the following sequence... Figure 57 Figure 58 Figure 59 Figure 60 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 36 C shows the 2 thermocouple area (below) clear of media (above). 2nd Thermocouple 2nd Thermocouple Pilot Assembly Pilot Assembly Figure 62 To see how to arrange media in an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/ Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 37: Operating The Fireplace

    ON when the fireplace is Figure 64 turned on. Note! For normal operation the MANUAL knob on the gas valve cannot be in the MAN position; it must be fully in the ON position. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 38 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 65 Figure 66 Figure 67 Figure 68 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 39 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 69 Figure 70 Figure 71 Figure 72 Figure 73 Figure 75 Figure 74 Element4 Gas Fireplaces Element4 Gas Fireplaces EuropeanHome.com EuropeanHome.com...
  • Page 40 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 76 Figure 77 Figure 79 Figure 78 Figure 80 Figure 82 Figure 81 Figure 84 Figure 83 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 41 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 85 Figure 86 Figure 87 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces EuropeanHome.com...
  • Page 42 • CHILD PROOF (To activate press buttons simultaneously. displayed and the handset is rendered inoperable (except for off functi- on). • PROGRAM MODE • THERMOSTATIC MODE (also deactivates Program Mode) • ECO MODE • MULTI-BURNER FEATURE • COUNTDOWN TIMER Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 43 After the fireplace is turned off the fan will continue to run until the temperature drops below 120° F/49° C. NOTE: the OUTER glass will get warm to the touch but remain under 172° F/78° C. If the temperature exceeds 172° F/78° C the flames will automatically turn off. Figure 89 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 44: Maintenance

    Inner Glass Panels in place. Unscrew the retaining bolt(s) holding the glass clamp and then remove the clamp. Remove all of the retaining Figure 92 bolts and clamps holding Inner Glass Panels. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 45 Gently push the rope gasket into the outer channel ensuring that the gasket is pushed into the channel until it is flush with the edge of the channel. PROPERLY PLACE, CLAMP AND SEAL THE GLASS PANEL(S) BEFORE LIGHTING THE FIRE! Element4 Gas Fireplaces EuropeanHome.com...
  • Page 46: Burner

    The pilot has two distinct flames, one engulfing the thermocouple on its left, the other reaching across to the burner. The area around the pilot should be inspected for cleanliness. Lint or foreign material must be removed with a brush or vacuum. Figure 95 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 47: Thermocouple

    MAINTENANCE THERMOCOUPLE MAINTENANCE The Element4 fireplaces have two thermocouples; one next to the pilot and one opposite the pilot side of the burner. The completeness and operation of both must be checked. A qualified installer must confirm that both thermocouples are in place and not damaged.
  • Page 48: Replacement Parts

    2nd and 3rd Burner 5a-b 4th and 5th Burner Piolot Assembly E4PGS-PABT-01 Second Thermocouple E4-GS-2TC-01 Quad Burner Control Module E4-GS-BM-QB-01 6 Volt Adaptor AC Adaptor-03 Figure 98 Wifi-Box (Optional) E4-GS-Con-Wifi-01 10 Button Remote Repl-E4-GS-RC-10B Figure 99 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 49: Warranty

    European Home is a division of Europa Ja, Inc. PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Model Lucius 140 R GSB Lucius 140 T GSB (check one) Purchased From Date of Purchase Installed By...
  • Page 50: Massachusetts Certification

    Gas Fitters has issued approval number G3-0116-219 for this appliance. The following must be observed when installing the Element4 fireplaces within the Commonwealth of Massachusetts: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole...
  • Page 51: Troubleshooting Flowchart

    Motor not operating Replace gas valve. properly. Micro switch not Replace gas valve. operating properly. 2nd thermocouple Confirm integrity of 2nd thermocouple and not connected connection. (continued) Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com I:\DEPARTMENTS\Technical Support\Troubleshooting\Guides\20181205_Troubleshooting Flow Chart_E4_8btn Edition.indd...
  • Page 52 Short between interrupter block and TC- Check connection to interrupter block. cable. Sparking stops after pilot is lit. Electronic measuring amplifier defective. Replace the receiver. (continued) Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 53 Turn the control knob to “ON” position, a Manual knob is in the “MAN” position. positive latch is required. Main burner is lit. Confirm correct gas pressure. Increase pilot Pilot flame is too low. flame if necessary. (continued) Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 54 The valve will turn to pilot flame if the set temperature and the ambient temperature remain the same over a 6 hour period. (continued) Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 55 Check venting for complete integrity. Reduce the primary air opening until flames have blue Too much primary air. base and yellow upper two-thirds. Flames are stable but too small and blue. NORMAL OPERATION Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 56 APPENDIX TWO Remote/Receiver Combinations Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 57: Connecting To A Smart Home System

    Frequent ON and OFF cycles will limit life expectancy of the valve and will increase battery consumption. The fireplace should be powered by the AC adapter for improved reliability and customer satisfaction. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 58: Installing Optional Black Glass

    Step 4: Insert the top of the Black Glass between the tabs and side wall then swing the bottom against the side wall. Center the Black Glass, adjust the tabs and tighten the screws to hold the Black Glass in place. Step 5: Remove the label, clean the Black Glass and replace the front glass. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 59 No communication between receiver and Wi-Fi Contact service No control possible by the electronics module Contact service No temperature display in the App • No remote control connected “N.a. ” in the App • Batteries in remote control empty Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 60 2x 1.5 V AAA 4 sec. No reaction from the fireplace No or bad connection between the receiver and Interrupted responses remote control No electronic control No voltage on the receiver Low communication range, AC adapter Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 61 Try to keep jammers as far away as possible devices can not connect via the 5GHz band, the ProControl from the router. Neighboring wireless networks also play a module is not suitable for 5GHz band. role in the Wi-Fi area. Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 62 NOTES Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 63 FIRST FIRE 43 Learances WALL ACCESS DOOR 32 nstaLLing the WARRANTY 49 ressures KEY INSTALLATION pOINTS 6 LISTING LAbEL 10 MAINTENANCE urner iLot herMocoupLes MANTELS 17 NON-COMbuSTIbLE MATERIALS iniMuM Learances Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
  • Page 64 Imported and distributed in North America by: EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGE411II-180509 Element4 Gas Fireplaces Rev# 03242020 EuropeanHome.com...
