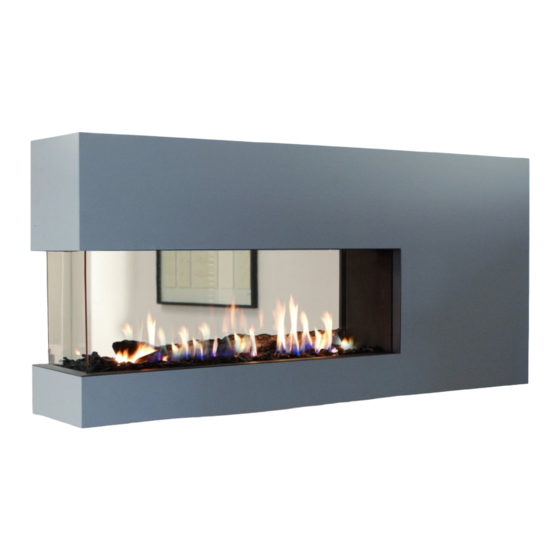

Element4 Lucius 140 Installation, Operation And Owner's Manual

Element4 Lucius 140 Installation, Operation And Owner's Manual

Direct vent gas fireplaces
Hide thumbs Also See for Lucius 140:

Advertisement

Quick Links

Product
Lucius 140 MKII
Information
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Element4 Gas Fireplaces Rev# 11082019
Video
Installation, Operation and
Owner's Manual
Gas Fireplaces
Une surface vitrée chaude
peut causer des brûlures.
Laisser refroidir la surface
vitrée avant d'y toucher.
Ne permettez jamais á un enfant
de toucher la surface vitrée.
AVERTISSEMENT:
INCENDIE OU D'EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
- Ne pas entreposer ni utilizer d'essence ni d'autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d'allumer d'appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l'entretien doivent être effectués par un
installateur qualifié, une agence de service ou le fournisseur
de gaz.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
1
4006611
Lucius 140
Tenore 140
Direct Vent
November 2019
EuropeanHome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lucius 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Element4 Lucius 140

  • Page 1 INSTALLER: Leave this manual with the appliance. INSTALLATEUR: Laissez cette notice avec l’appareil. CONSUMER: Retain this manual for future reference. CONSOMMATEUR: Conservez cette notice pour consultation ultérieure. November 2019 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com 4006611...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information ..................... 3 Key Installation Points ......................6 User Information ........................7 Specifications and Dimensions ..................8 Lucius 140 Tenore 140 Parts of the Fireplace Clearances ..........................13 Locating the Fireplace Placing the Fireplace Clearances to Combustibles...
  • Page 3: Important Safety Information

    36” of the fireplace glass. SAVE THESE INSTRUCTIONS Make yourself fully aware of all the following instructions and the many features of the Element4 direct vent gas fireplace appliance. INSTALLER: Leave this manual with the appliance. OWNER: Keep this manual for future reference.
  • Page 4 Canada, consult with the local authority having The glass must only be removed by a qualified person. jurisdiction for gas product installations to determine their Gloves should be worn when removing the glass. specific requirements for high altitude installations. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 5 DO NOT USE abrasive cleaners on the panels. DO NOT the nearest 1/16” when converted. If greater accuracy is ATTEMPT to clean the glass panels when they are hot. required, use the metric dimensions. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 6: Key Installation Points

    GAS PRESSURES Gas pressures MUST be read with a manometer and confirmed with what is required in the installation manual. FINISHING Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 7: User Information

    WARMTH AND BEAUTY - HOW IT WORKS The Element4 fireplaces are direct vent fireplaces and, as such, the intake and exhaust are both handled through the vent pipe. The fireplace also provides convection air to your room. The illustration shows one of the unique features of the Element4 fireplaces - its use of warm, convection air flow.
  • Page 8: Specifications And Dimensions

    Gas Fireplaces” by Intertek Group. (Figure 3) Figure 2 A sample listing label image is shown above. A metal listing label is attached to every Element4 fireplace and contains important certification information. The listing label must not be removed from AC ADAPTER SPECIFICATIONS the fireplace.
  • Page 9: Lucius 140

    DIMENSIONS ARE IN MILLIMETERS BREAK SHARP SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: Figure 7 NAME SIGNATURE DATE TITLE DRAWN CHK'D APPV'D MATERIAL: WEIGHT: A downloadable DWG file is available at www.europeanhome.com for dimensions not shown. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 10: Tenore 140

    DATE TITL DRAWN DRAWN CHK'D CHK'D APPV'D APPV'D A downloadable DWG file is available at www.europeanhome.com for dimensions not shown. MATERIAL: DWG NO. LUCIUS 140 T MATERIAL: WEIGHT: SCALE:1:5 WEIGHT: SHEET 1 OF 1 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 11: Parts Of The Fireplace

    SPECIFICATIONS and DIMENSIONS PARTS OF THE FIREPLACE The various parts of the Lucius 140 fireplace are shown below. These parts are typical of any Element4 fireplace. 10 10 14 14 Figure 10 Table of Fireplace Parts Outer Frame Face - surrounds the glass panels and limits the non-combustible wall board...
  • Page 12 Figure 12: Fireplace from below Table of Fireplace Parts Support Feet - four adjustable feet allow the fireplace to be levelled Relief Door - part of the safety system. Do NOT block the operation. Pilot Assembly Figure 13 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 13: Clearances

    YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESE CRITICAL COMPONENTS THROUGHOUT THE INSTALLATION CRITICAL COMPONENTS THROUGHOUT THE INSTALLATION PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES. PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 14: Clearances To Combustibles

    We recommend that the fireplace be set into its final location before building the enclosure. Please refer to the “Reduced Clearance to Existing Combustible Wall” section for use of combustibles inside of the above clearances. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 15 (TYPICAL) Mantel Depth NON COMBUSTIBLE 12”/300 mm MATERIAL CONSTRUCTION BEAMS NON- COMBUSTIBLE (TYPICAL) DETAIL C ETAIL C 1”/25 mm ALE 1 : 10 TOP OF FIREPLACE OPENING GLASS Figure 17 Figure 18 CONVECTION GAP Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 16: Warm Air Outlet Clearances

    Warm Air Outlet Area by Model Room ceiling to 72” Model Square Inches Square Centimeters appliance bottom 1830 Lucius 140 Room ceiling to top of 1” Warm Air Outlet Tenore 140 Figure 20 Figure 21 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 17: Gas And Electric

    Remove batteries after use to avoid battery corrosion. Battery corrosion will damage the receiver. Electrical work must be performed by a qualified, licensed electrician. WARNING All wiring shall be in compliance with all local, city, and state codes. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 18: Venting

    Pro-Form (BDM - Bernard Dalsin Manufacturing) Direct-Temp (Selkirk Corporation) AmeriVent Direct Vent (Hart & Cooley Inc.) Ventis Direct Vent (Olympia Chimney Supply, Inc.) Figure 23 Please visit www.europeanhome.com/technical-support/ for the power venting installation manuals Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 19 Calculate the Total Vertical Section by adding up all vertical upward sections in your specific vent design. CALCULATING THE TOTAL HORIZONTAL SECTION (THS) Calculate the Total Horizontal Section by adding up all horizontal sections in your specific vent design. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 20 Loosen the screws on either side and slide the restrictor as desired. Do not modify the restrictor(s). Please use the graph above to determine if you will need to use a restrictor. Loosen these two Phillips head screws to slide the restrictor on/off. Figure 29 Figure 30 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 21: Venting Charts

    VENTING VENTING CHARTS HORIZONTAL TERMINATIONS & RESTRICTOR USE rise Figure 31 VERTICAL TERMINATIONS & RESTRICTOR USE rise Figure 32 Figure 33 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 22 VENTING CLEARANCES HORIZONTAL VENT TERMINATION CLEARANCES AND REQUIREMENTS Figure 34 Figure 35 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 23 National Fuel Gas Code (ANSI Z223.1 in the USA) or the current standard of CAN/CSA-B149.1 in Canada. Figure 36 Figure 37: Termination Heights A second termination may be no closer than 12”/305 Figure 38: Multiple Termination Clearance Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 24: Enclosing The Fireplace

    Figure 39: * The listed brand names are trademarks of their respective companies. Skamol Americas, Inc. (844) 475-2665 E-mail: skamotec225@skamol.com www.skamotec225.com Promat Inc. (865) 681-0155 E-mail: sales@promat.us www.promat.us/en James Hardie Building Products (888) 542-7343 www.jameshardie.com Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 25 ENCLOSING the FIREPLACE BUILDING THE ENCLOSURE/FRAMING A safe installation of your Element4 fireplace requires that three things be clearly understood. 1. Most important, these fireplaces are NOT zero-clearance fireplaces. Unlike zero-clearance fireplaces, there is not an outer metal box around the Element4 fireplaces which increases the framing dimensions.
  • Page 26 Gap MUST BE Gap MUST BE MAINTAINED MAINTAINED 1”/25 1”/25 Minimum Air Gap MUST BE MAINTAINED Minimum Air Gap MUST BE MAINTAINED Figure 39 OMbuSTIbLE hIELd INIShEd hIELd INIShEd OMbuSTIbLE Figure 41 Figure 42 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 27 James Hardie Building Products HardieBacker® 500 1/2” Cement Board 1/2” (12 James Hardie Building Products HardieBacker® 1/4” Cement Board 1/4” (6 Figure 43 Fireplace Trim Figure 45 Minimum Wall Thickness = 1/2”/12 Figure 44 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 28 When enclosing the Lucius 140 fireplace there is a minimum clear area which must be maintained. Nothing except the Lucius 140 may be within this area. When enclosed, the Lucius 140 is against the side (short) wall. This minimum area MUST BE DEFINED BY NON- COMBUSTIBLE MATERIAL.
  • Page 29 Your installation will use more than this minimum cabinet space in order to accommodate controls, venting, air openings, etc. We recommend that the fireplace be set into its final location before building the enclosure. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 30 ENCLOSING the FIREPLACE Figure 48: Lucius 140 with Open Top Baffle (angled ceiling in enclosure helps heat move up through chase) Figure 49: Lucius 140 with Endwall Outlets Warm Air Outlet Area by Model Model Square Inches Square Centimeters Lucius 140...
  • Page 31 These MUST be loosened by one turn BEFORE the appliance is fired. Figure 52 Use the adjustable feet to ensure that the fireplace is level prior to enclosing it. Do NOT lift the fireplace by the face frame but by the bottom of the cabinet. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 32: Cold Climate Installation

    39” When measured at the level of the feet, the controls will reach no farther from 12” 9” the cabinet edge than shown at left. The drawing is not to scale. 39” Figure 54 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 33 Replace the white door/frame cover onto the frame and secure it with the four bolts. Figure 57 Figure 58 Fit the gas control tab into the bracket on Tighten the bolt through the mounting the Access Door frame. bosses. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 34 Once the system stays lit for at least one full minute, turn the fireplace off, fix the glass panels in place and operate the fireplace for at least 45 minutes to ensure the system works properly when heated. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 35: Installing The Fire Media

    - two bags each of black and grey chips With the chips scattered across the burner and hearth panel, lay the logs in the following sequence... Figure 61 Figure 62 Figure 63 Figure 64 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 36 C shows the 2 thermocouple area (below) clear of media (above). 2nd Thermocouple 2nd Thermocouple Pilot Assembly Pilot Assembly Figure 66 To see how to arrange media in an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/TECHNICAL/HOW-TO-VIDEOS/ Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 37: Screen Installation

    Place the two Lower Tabs on the trim, with the short side against the glass, about 2-3” from each corner of the glass. Place a magnet on the front of each tab. Figure 73 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 38 Figure 75 This is what the screen will look like when it is attached correctly to the top Upper Tabs (viewed from inside of the standoff frame.) Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 39 This is what the screen will look like when it is attached correctly to the Lower Tabs (viewed between the screen and the glass.) Figure 77 The screen is installed properly in the photo above. Ensure that all magnets are in the correct position and the tabs are secured. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 40: Operating The Fireplace

    ON when the fireplace is Figure 79 turned on. Note! For normal operation the MANUAL knob on the gas valve cannot be in the MAN position; it must be fully in the ON position. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 41 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 80 Figure 81 Figure 82 Figure 83 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 42 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 84 Figure 85 Figure 86 Figure 87 Figure 88 Figure 90 Figure 89 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 43 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 91 Figure 92 Figure 94 Figure 93 Figure 95 Figure 97 Figure 96 Figure 99 Figure 98 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 44 OPERATING the FIREPLACE OPERATING the FIREPLACE Figure 99 Figure 100 Figure 101 Element4 Gas Fireplaces EuropeanHome.com Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 45 • CHILD PROOF (To activate press buttons simultaneously. displayed and the handset is rendered inoperable (except for off functi- on). • PROGRAM MODE • THERMOSTATIC MODE (also deactivates Program Mode) • ECO MODE • MULTI-BURNER FEATURE • COUNTDOWN TIMER Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 46 Since it is a metal fireplace, the heat-up and cool-down cycles may produce some noises caused by the expansion and contraction of these metals. The premium materials and build quality of your fireplace will keep these sounds to a minimum. Figure 103 To see an Element4 fireplace starting and running normally please visit the link below. WWW.EUROPEANHOME.COM/TECHNICAL/HOW-TO-VIDEOS/ Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 47: Maintenance

    Remove all of the retaining bolts and clamps holding in the first piece of glass. To see how to remove the glass from an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/TECHNICAL/HOW-TO-VIDEOS/ Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 48 While ensuring that the glass panels are tight and square to each another, tighten the retaining bolt(s) on each clamp NO MORE THAN 1/2 TURN past finger tight. PROPERLY PLACE, CLAMP AND SEAL THE GLASS PANELS BEFORE LIGHTING THE FIRE! Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 49: Burner

    The pilot has two distinct flames, one engulfing the thermocouple on its left, the other reaching across to the burner. The area around the pilot should be inspected for cleanliness. Lint or foreign material must be removed with a brush or vacuum. Figure 108 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 50: Thermocouple

    MAINTENANCE THERMOCOUPLE MAINTENANCE The Element4 fireplaces have two thermocouples; one next to the pilot and one opposite the pilot side of the burner. The completeness and operation of both must be checked. A qualified installer must confirm that both thermocouples are in place and not damaged.
  • Page 51: Replacement Parts

    MAINTENANCE REPLACEMENT PARTS Figure 110 Quantity Part Number Lucius 140 Room Divider Item Description (Required) (Each) Quantity Part Number Item Description Front Glass (Long) Required (Each) E4-GLASS-140 FRONT Front Glass (Long) E4-GLASS-140 FRONT Side Glass E4-GLASS-LUC140-SIDE Side Glass E4-GLASS-LUC140-SIDE Front Safety Screen...
  • Page 52 Repl-E4-CP-HEARTH-LUC-140-MKII Hearth Panel Repl-E4-CP-HEARTH-LUC-140-MKII Hearth Panel Screws Repl-E4-CP-HPS-01 Hearth Panel Screws Repl-E4-CP-HPS-01 Long Glass Clamp Long Window Clamp Repl-E4-GP-LC-2GCS-01 Repl-E4-GP-LC-2GCS-01 (w/ screws) (w/ screws) Window Clamp Screws Repl-E4-GP-GCS-01 Glass Clamp Screws Repl-E4-GP-GCS-01 Figure 113 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 53 Item Description Pilot Assembly Repl-E4-GS-PABT-01 (Required) (Each) Ignitor Rod Repl-E4-GS-IGL-01 Pilot Assembly Repl-E4-GS-PABT-01 1st Thermocouple Repl-E4-GS-1T-01 Ignitor Rod Repl-E4-GS-IGL-01 2nd Thermocouple Repl-E4-GS-2TC-mount-01 (w/ mount) 1st Thermocouple Repl-E4-GS-1T-01 Figure 117 2nd Thermocouple Repl-E4-GS-2TC-mount-01 (w/ mount) Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 54 MAINTENANCE REPLACEMENT PARTS Figure 118 Quantity Part Number Item Description Required (Each) Gas valve Repl-E4-GS-GV-01 Solenoid Valve for Repl-E4-GS-SV-02 2nd Burner Receiver E4-GS-CM-Wifi-02 (Control Module) Figure 119 8 button Remote E4-GS-RC-Wifi Figure 120 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 55: Warranty

    Installer: Please complete this form. Customer: Please retain this information. Model Lucius 140 Tenore 140 (check one) Purchased From Date of Purchase Installed By Date of Installation Fireplace Serial Number Fuel Type Total Venting Horizontal Total Venting Vertical Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 56: Massachusetts Certification

    Gas Fitters has issued approval number G3-0116-219 for this appliance. The following must be observed when installing the Element4 fireplaces within the Commonwealth of Massachusetts: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole...
  • Page 57: Troubleshooting Flowchart

    Motor not operating Replace gas valve. properly. Micro switch not Replace gas valve. operating properly. 2nd thermocouple Confirm integrity of 2nd thermocouple and not connected connection. (continued) Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com I:\DEPARTMENTS\Technical Support\Troubleshooting\Guides\20181205_Troubleshooting Flow Chart_E4_8btn Edition.indd...
  • Page 58 Short between interrupter block and TC- Check connection to interrupter block. cable. Sparking stops after pilot is lit. Electronic measuring amplifier defective. Replace the receiver. (continued) Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 59 Turn the control knob to “ON” position, a Manual knob is in the “MAN” position. positive latch is required. Main burner is lit. Confirm correct gas pressure. Increase pilot Pilot flame is too low. flame if necessary. (continued) Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 60 Test the batteries, replace if necessary. Receiver batteries low. Quality 1.5V AA alkaline recommended. Magnet unit drops Ensure magnet unit is operating while motor turns. Test the receiver output to the magnet unit. normally. Receiver makes 3 beeps. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com (continued)
  • Page 61 Check venting for complete integrity. Reduce the primary air opening until flames have blue Too much primary air. base and yellow upper two-thirds. Flames are stable but too small and blue. NORMAL OPERATION Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 62 APPENDIX TWO REMOTE/RECEIVER COMBINATIONS Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 63 DOWN • Decrease the flame height: Press and hold the DOWN button. • For fine adjustment tap the UP or DOWN button as necessary. • Turn fireplace OFF: Press the ON/OFF button. Figure 123 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 64 Frequent ON and OFF cycles will limit life expectancy of the valve and will increase battery consumption. The fireplace should be powered by the AC adapter for improved reliability and customer satisfaction. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 65 Step 4: Insert the top of the Black Glass between the tabs and side wall then swing the bottom against the side wall. Center the Black Glass, adjust the tabs and tighten the screws to hold the Black Glass in place. Step 5: Remove the label, clean the Black Glass and replace the front glass. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 66 Step 4: Insert the top of the Black Glass between the tabs and side wall then swing the bottom against the side wall. Center the Black Glass, adjust the tabs and tighten the screws to hold the Black Glass in place. Step 5: Remove the label, clean the Black Glass and replace the front glass. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 67 No communication between receiver and Wi-Fi Contact service No control possible by the electronics module Contact service No temperature display in the App • No hand transmitter connected “N.a. ” in the App • Batteries hand transmitter empty Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 68 2x 1.5 V AAA 4 sec. No reaction from the fireplace No or bad connection between the receiver and Interrupted responses hand transmitter No electronic control No voltage on the receiver Low communication range, AC adapter Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 69 Try to keep jammers as far away as possible devices can not connect via the 5GHz band, the ProControl from the router. Neighboring wireless networks also play a module is not suitable for 5GHz band. role in the Wi-Fi area. Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 70: Index

    FIRST FIRE 45 erticaL erMinations Learances nstaLLing the WALL ACCESS DOOR 32 ressures WALL SWITCH Appendix 3 WARRANTY 55 KEY INSTALLATION pOINTS 6 LISTING LAbEL 8 MAINTENANCE urner iLot herMocoupLes MANTELS 15 NON-COMbuSTIbLE MATERIALS iniMuM Learances Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...
  • Page 71 Imported and distributed in North America by: EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGE411II-181101 Element4 Gas Fireplaces Rev# 11082019 EuropeanHome.com...

This manual is also suitable for:

Tenore 140
